50 en | Connections

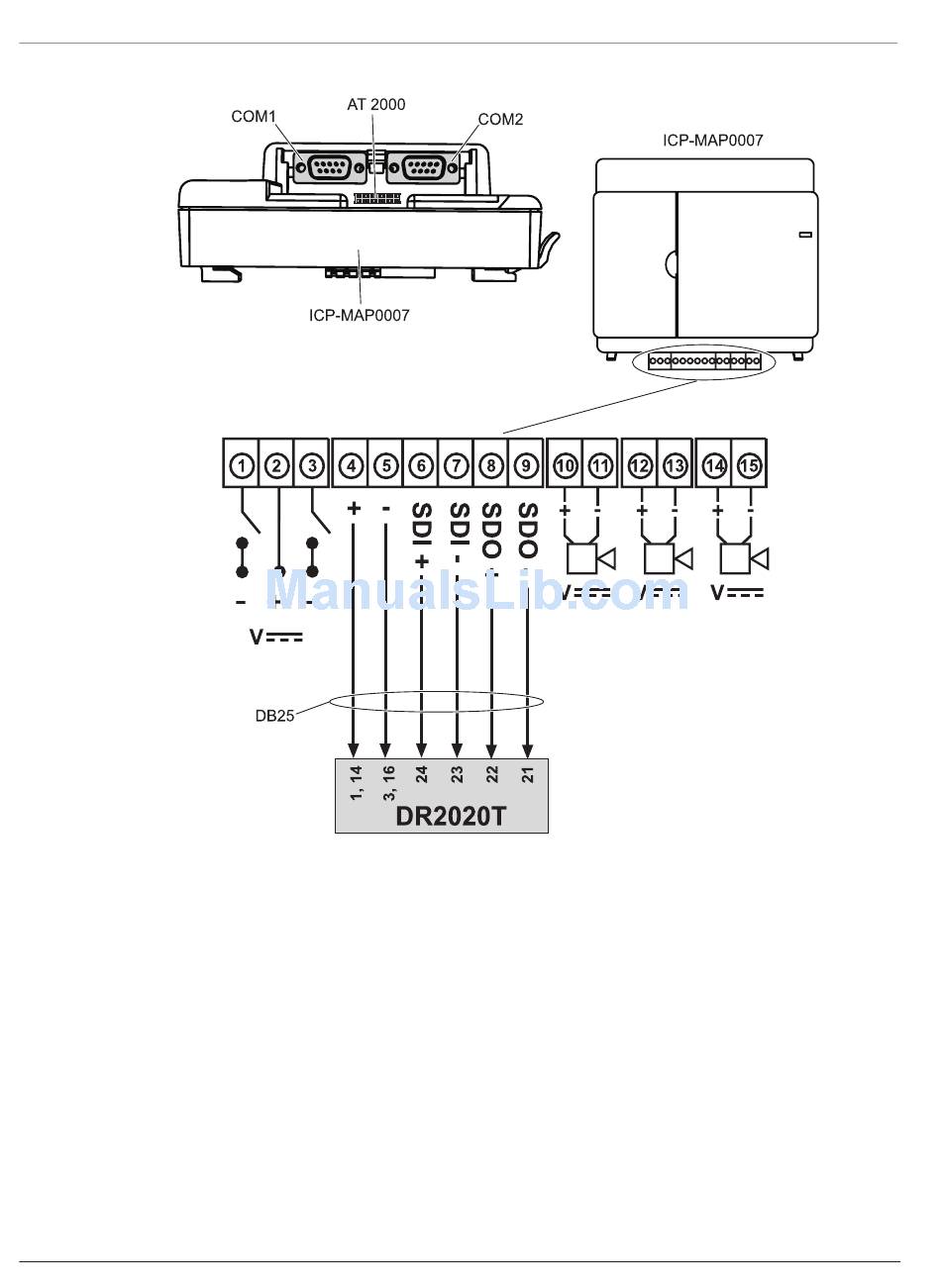

Connecting the DE module
3.7

Installing and connecting the tamper switch

–
–
Installing the tamper switch onto the rail
4
2016.06 | 17 | F.01U.168.332
Install the ICP-MAP0050 control panel enclosure tamper switch in the ICP-MAP0111 panel
enclosure.
Install the ICP-MAP0055 expansion enclosure tamper switch in the ICP-MAP0120
expansion enclosure.
Slide the extension piece of the tamper switch to position C as shown in the figure
below.
If a wall tamper plug was installed (refer to Mounting the enclosure, page 17), the position
of the expansion piece of the tamper switch must be chosen in a way that lifting the
enclosure off the wall by > 5 mm leads to reliable activation of the tamper switch.
Installation manual
MAP 5000
Bosch Sicherheitssysteme GmbH
