52 en | Connections

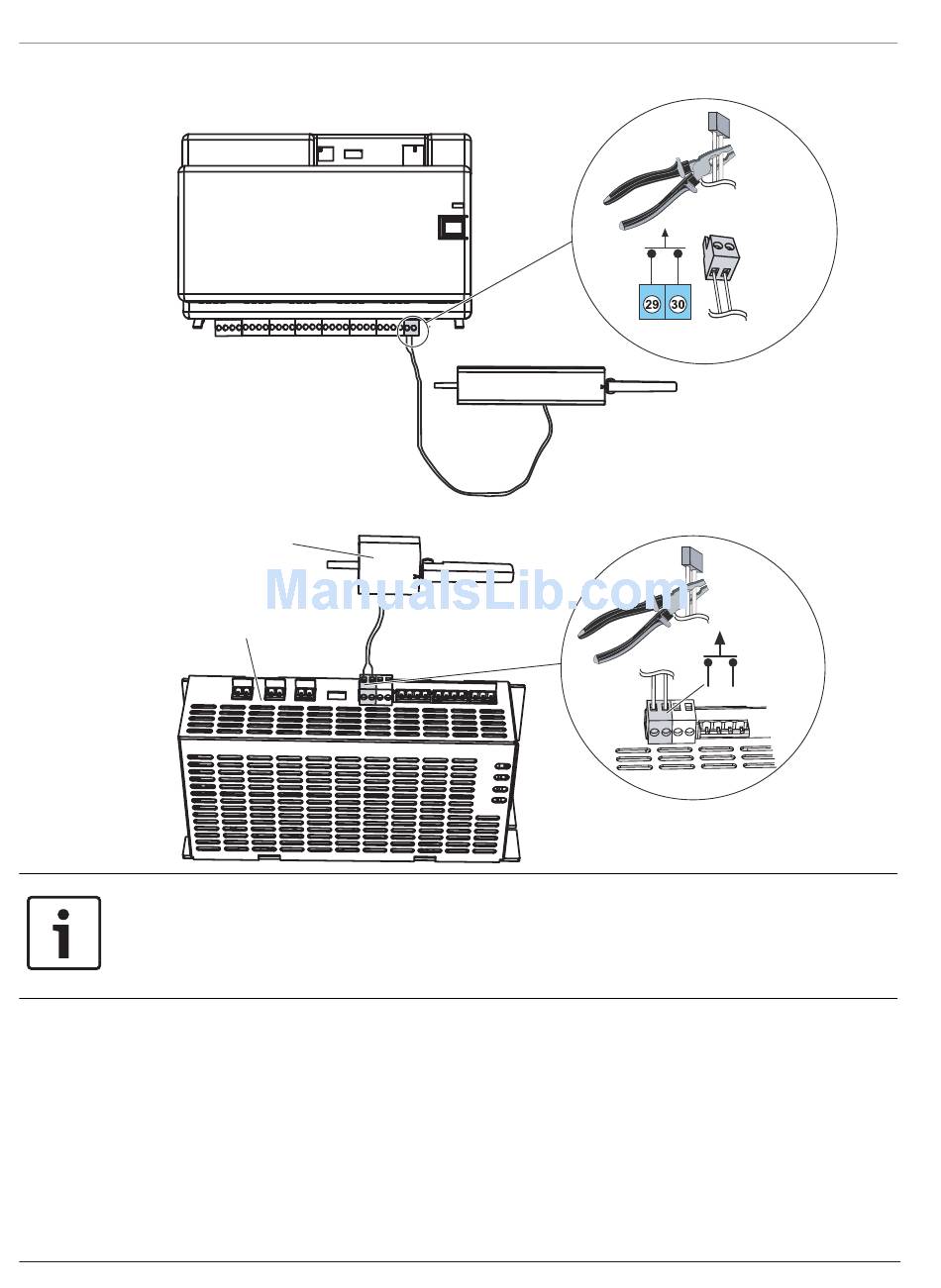

Connecting the ICP-MAP0050 tamper switch
Connecting the ICP-MAP0055 tamper switch
ICP-MAP0055
Notice!
When the enclosure door is opened, the tamper switch creates a tamper condition. To allow
for a local connection between RPS and the ICP-MAP5000 panel, connect the tamper switch
to the panel and not the power supply. The ICP-MAP5000 panel only allows system parameter
changes via RPS if the panel tamper switch input is in open state.
3.8

Installing the ICP-MAP0060 enclosure lockset

1.
2.
3.
2016.06 | 17 | F.01U.168.332
ICP-MAP5000
IPP-MAP0005
Remove the lockset knockout from the enclosure door as shown in the figure below (1).
Insert the lockset into the opening on the enclosure door as shown in the figure below
(2).
Secure the lockset with the nut as shown in the figure below (3).
ICP-MAP0050
Installation manual
MAP 5000
Bosch Sicherheitssysteme GmbH
