66
en | Enclosure options
5.2
Rack mount option for ICP-MAP0120 expansion enclosure
4

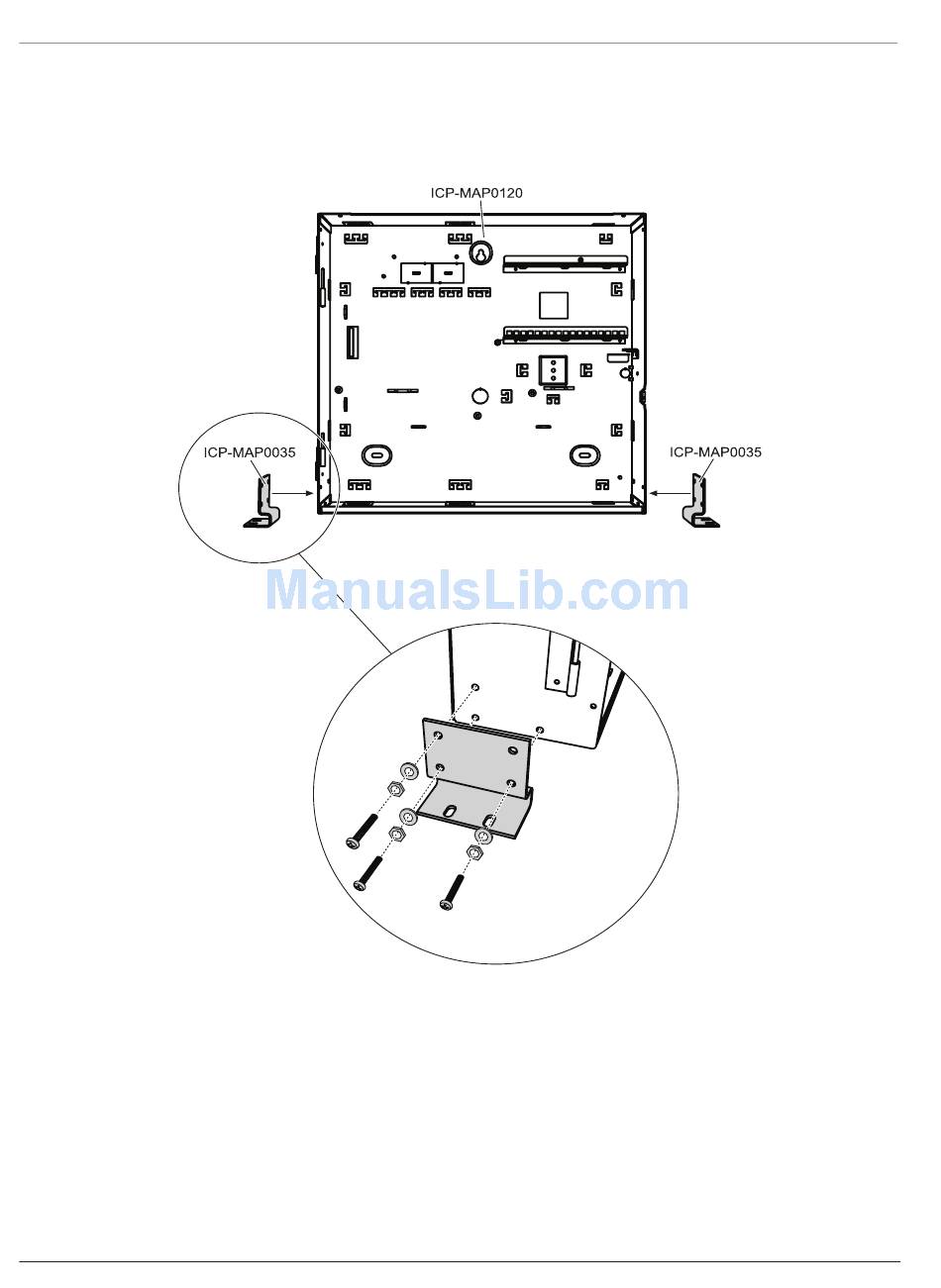

Installing the rack mount brackets to the ICP-MAP0120 expansion enclosure
2016.06 | 17 | F.01U.168.332
To install the ICP-MAP0120 expansion enclosure in a 19-inch rack, connect the ICP-
MAP0035 rack mount brackets to the ICP-MAP0120 expansion enclosure.
Installation manual
MAP 5000
Bosch Sicherheitssysteme GmbH
