24
en | Installation

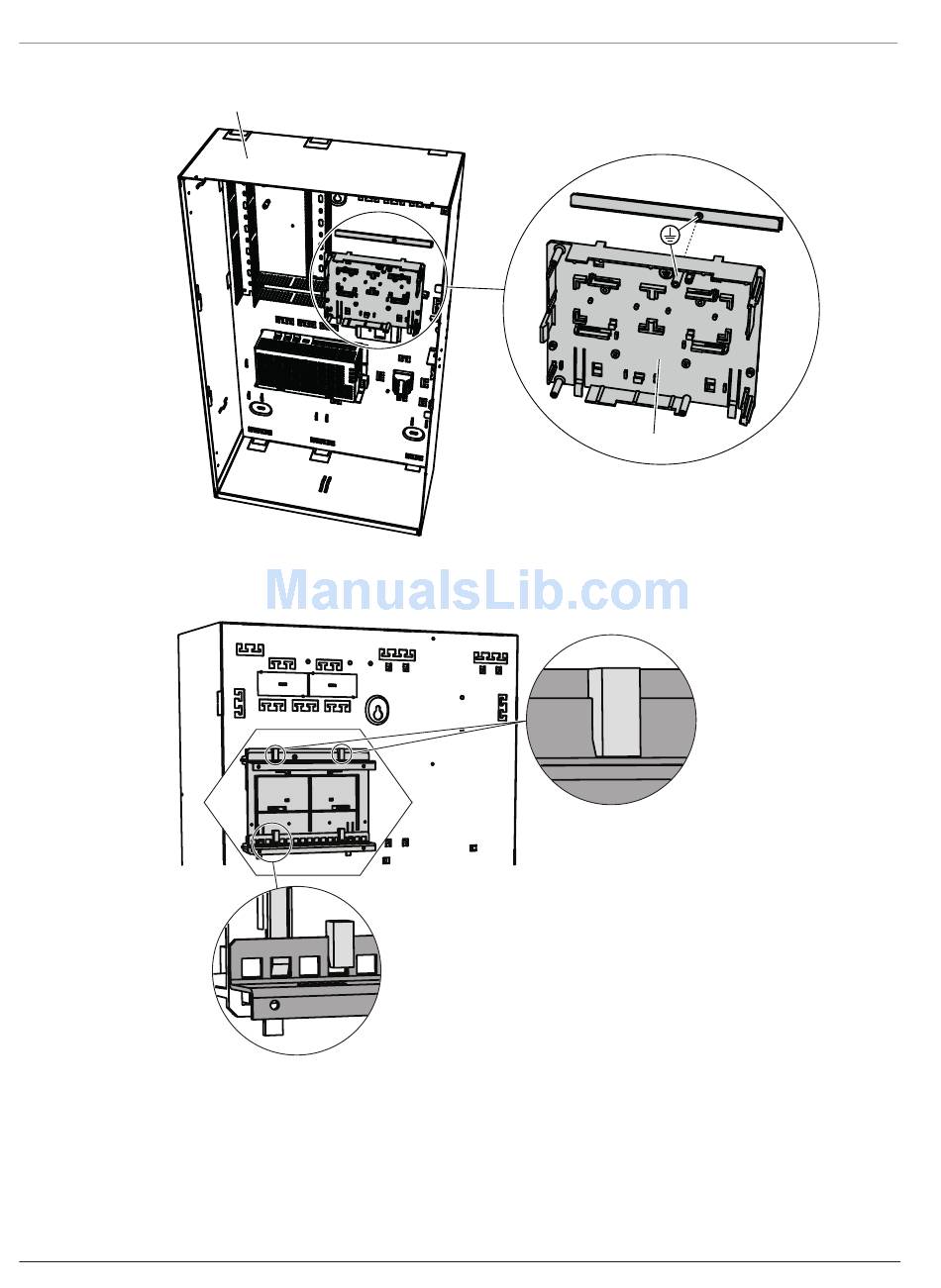

Aligning the accessory mounting plate
ICP-MAP0111
4
Installing the accessory mounting plate
Refer to Accessory mounting plate overview, page 25 for the locations of the modules that
mount on the accessory mounting plate.
2016.06 | 17 | F.01U.168.332
Ensure that the locking clips snap into the bottom mounting rail as shown in the figure
below.
Installation manual
ICP-MAP0020
