MAP 5000
Tamper switch extension piece
4
Mounting the tamper switch onto the rail
1.
2.
3.
Bosch Sicherheitssysteme GmbH

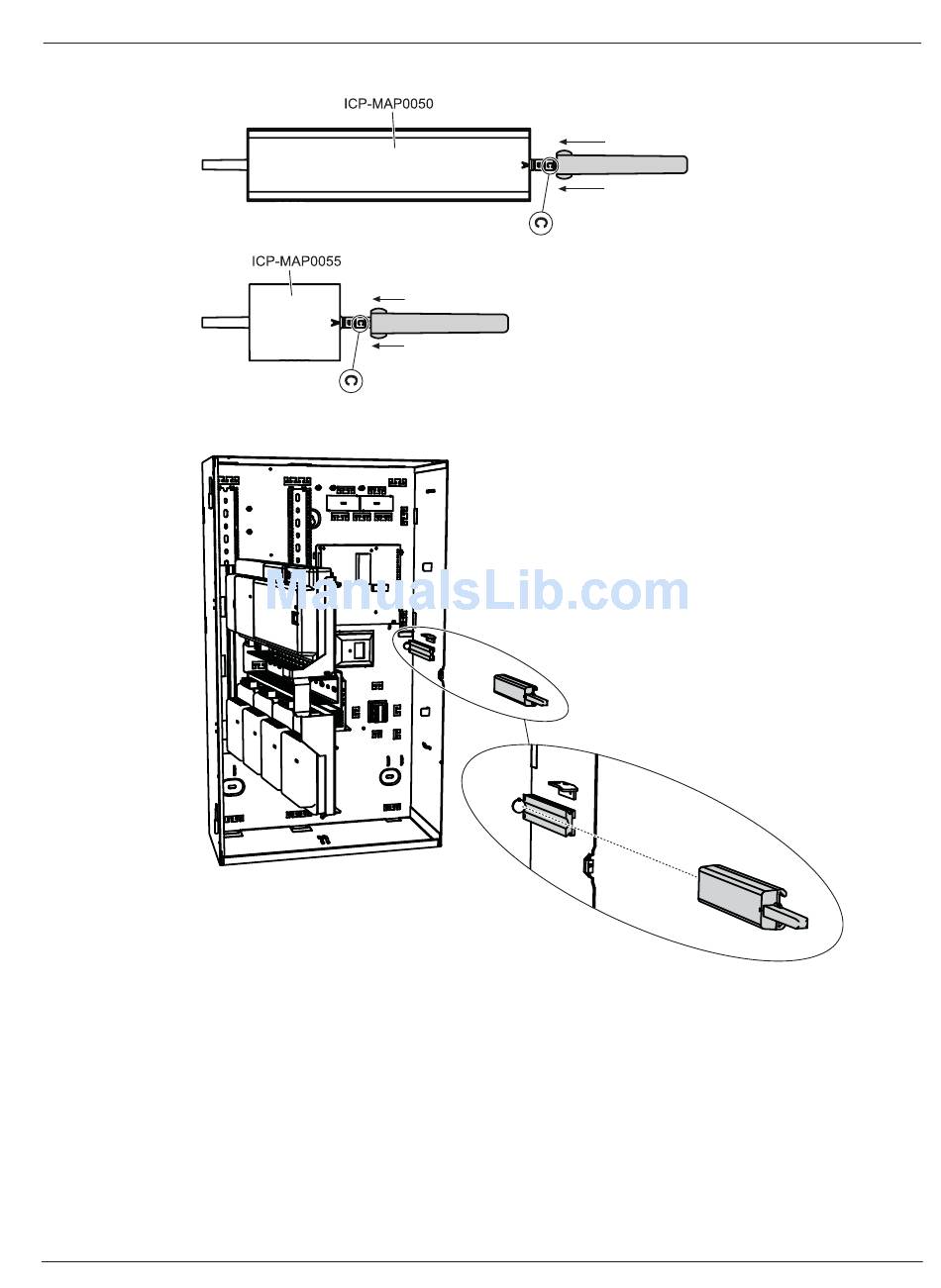

Slide the tamper switch onto the rail as shown in the figure below.
Clip off the connector from the cable of the tamper switch.
For the ICP-MAP0111 enclosure, connect the ICP-MAP0050 control panel enclosure
tamper Switch to the ICP-MAP5000 main panel. Refer to Connecting the ICP-MAP0050
tamper switch, page 52.
For the ICP-MAP0120 enclosure, connect the ICP-MAP0055 expansion enclosure tamper
switch to the ICP-MAP0005 power supply. Refer to Connecting the ICP-MAP0055 tamper
switch, page 52.
Installation manual
Connections | en
51
2016.06 | 17 | F.01U.168.332
