MAP 5000

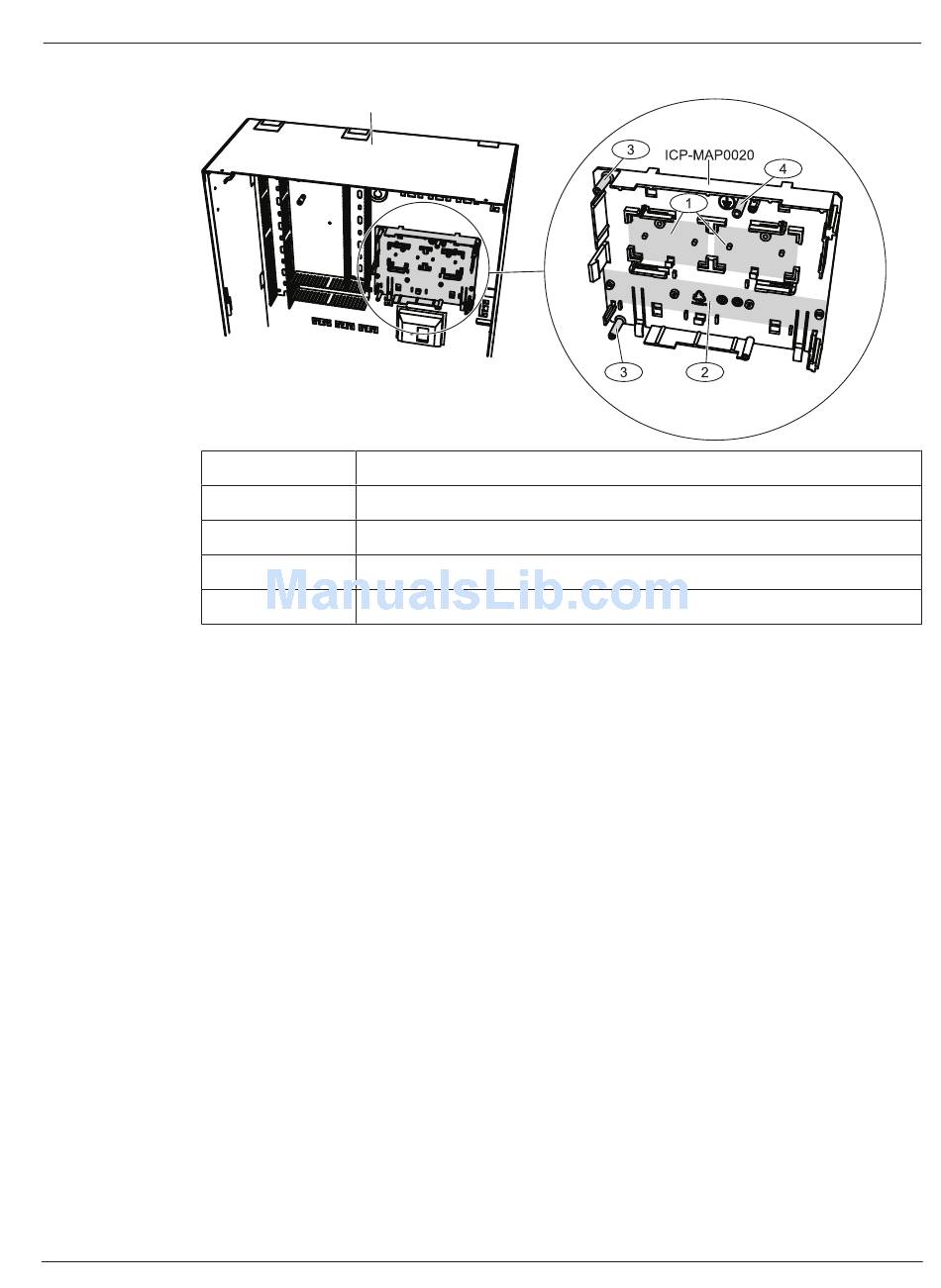

Accessory mounting plate overview
Element
1
2
3
4
2.8

Installing the 12 V converter

1.
2.
Bosch Sicherheitssysteme GmbH
ICP-MAP0111
Description
Locations for ICP-MAP0017 12 V converters (two maximum)
Location for fuse plate (SIV) (one maximum)
Screw locations for AT 2000 communicator (one maximum)
Screw location for AT 2000 earth ground
Mount the ICP-MAP0017 12 V converter onto the accessory mounting plate as shown in
the figure below (screws not supplied).
Connect the field wiring to the terminal block of the 12 V converter as shown in the figure
below and leave the other ends unconnected.
Installation manual
Installation | en 25
2016.06 | 17 | F.01U.168.332
