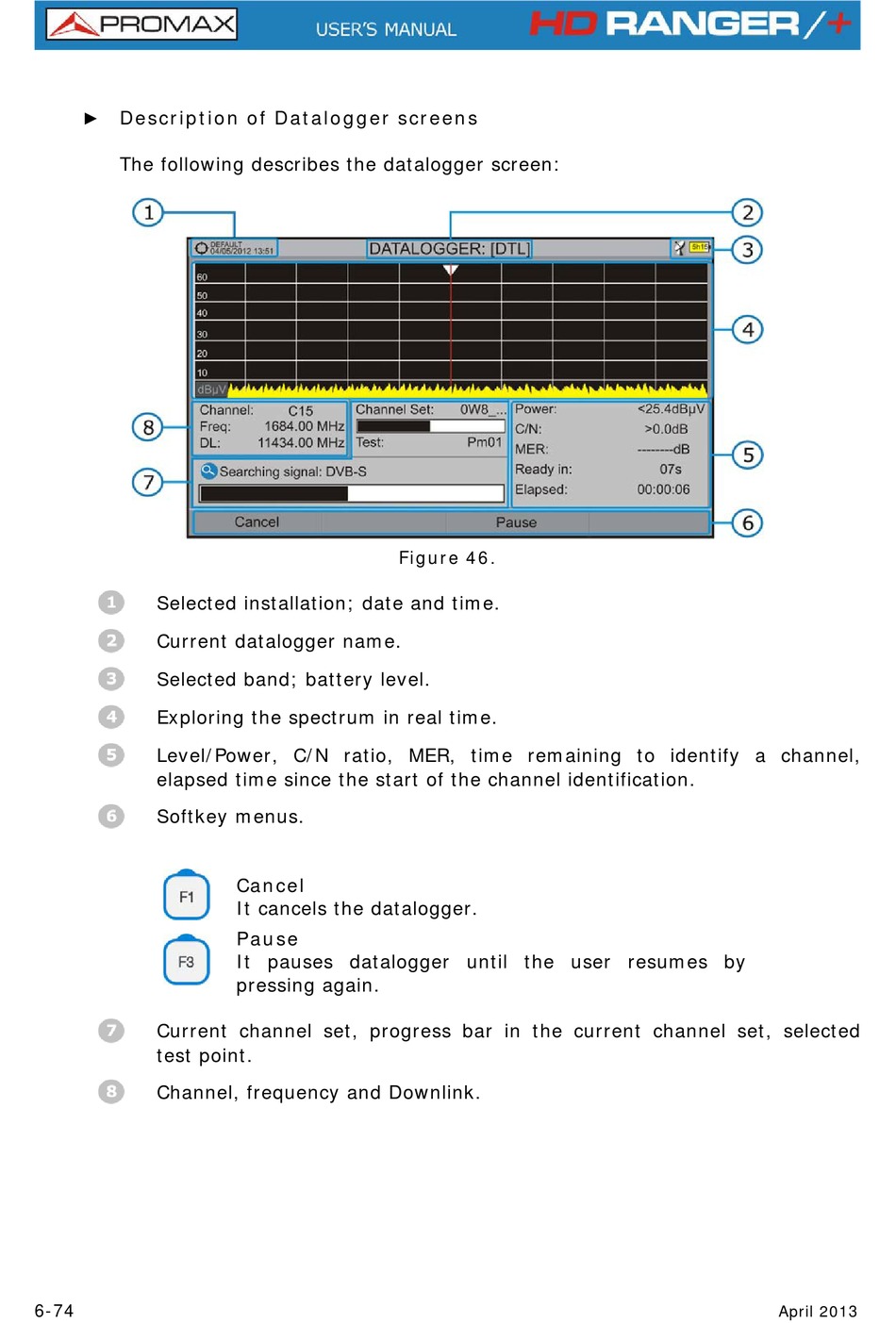

Description of Datalogger screens
►
The following describes the datalogger screen:
Selected installation; date and time.
Cur nt re
Selected band; battery level.
Exploring the spectrum in real time.
Level/Power, C/N ratio, MER, tim
elapsed time since the start of the channel identification.
Softkey menus.
Current channel set, progress bar in the current channel set, selected
test point.
Channel, frequency and Downlink.
6-74
Figure 46.
datalogger name.
Cancel
It cancels the datalogger.
Pause
It pauses datalogger until the user resumes by
pressing again.
e remaining to identify a channel,
