SPECTRUM 2/3: SPECTRUM + MEASUREMENT + TV
Selected installation, date and time.
Number of view/total views.
Joystick active mode, selected band, battery level.
Measured values of the signal at the frequency/channel where is pointing
the cursor.
Image of the tuned signal.
Spectrum in the band with the selected span.
Signal status (searching/locked/multiplex name/selected span).
Softkeys menus.
Joystick up/down: It changes the reference level.
►
Joystick left/right (depending on the joystick active mode):
►
SP:
FR or CH:
MK:
∗
Only available for digital channels.
4-36

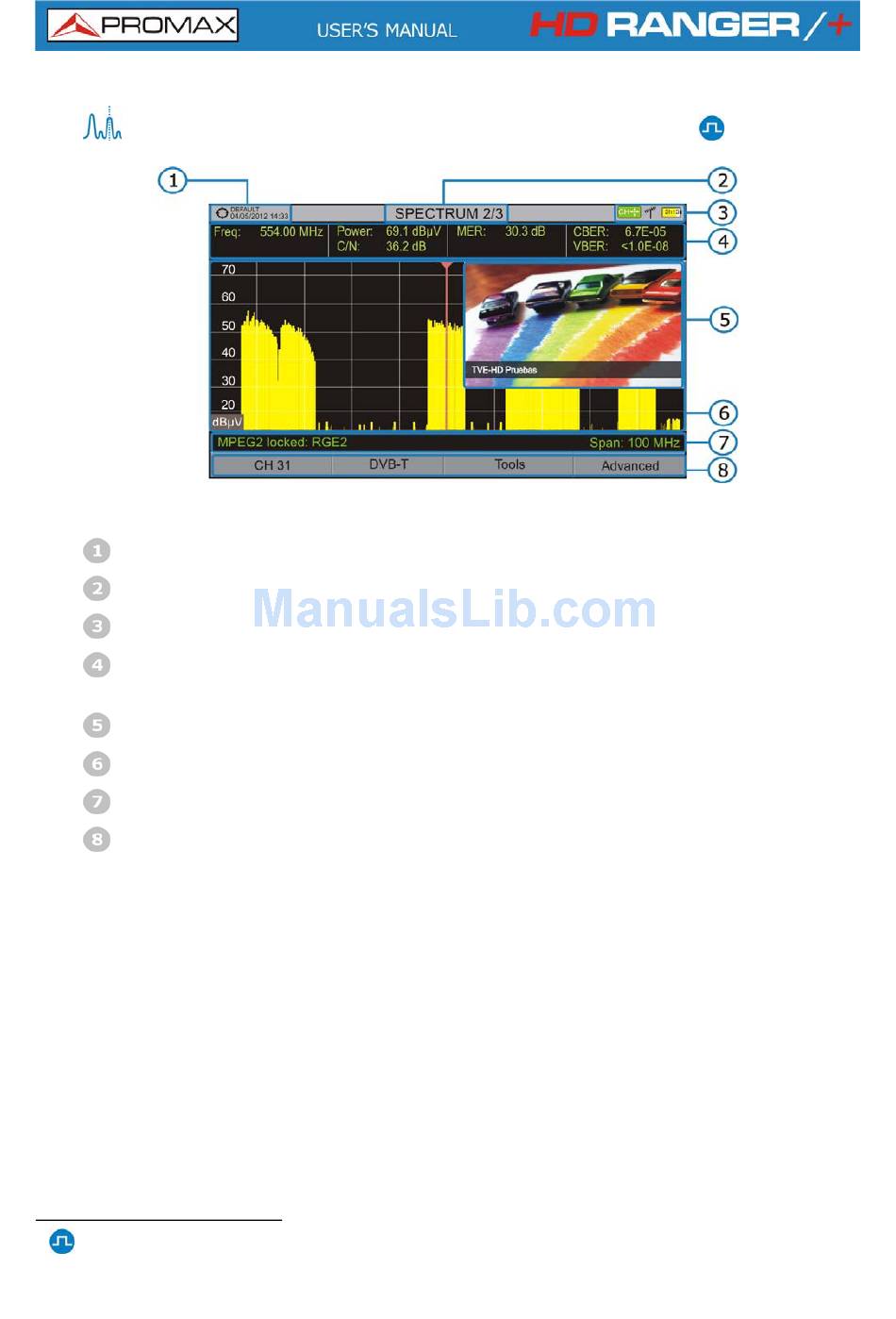

Figure 28.
SPAN change.
Frequency change or channel change.
Marker change.
∗
