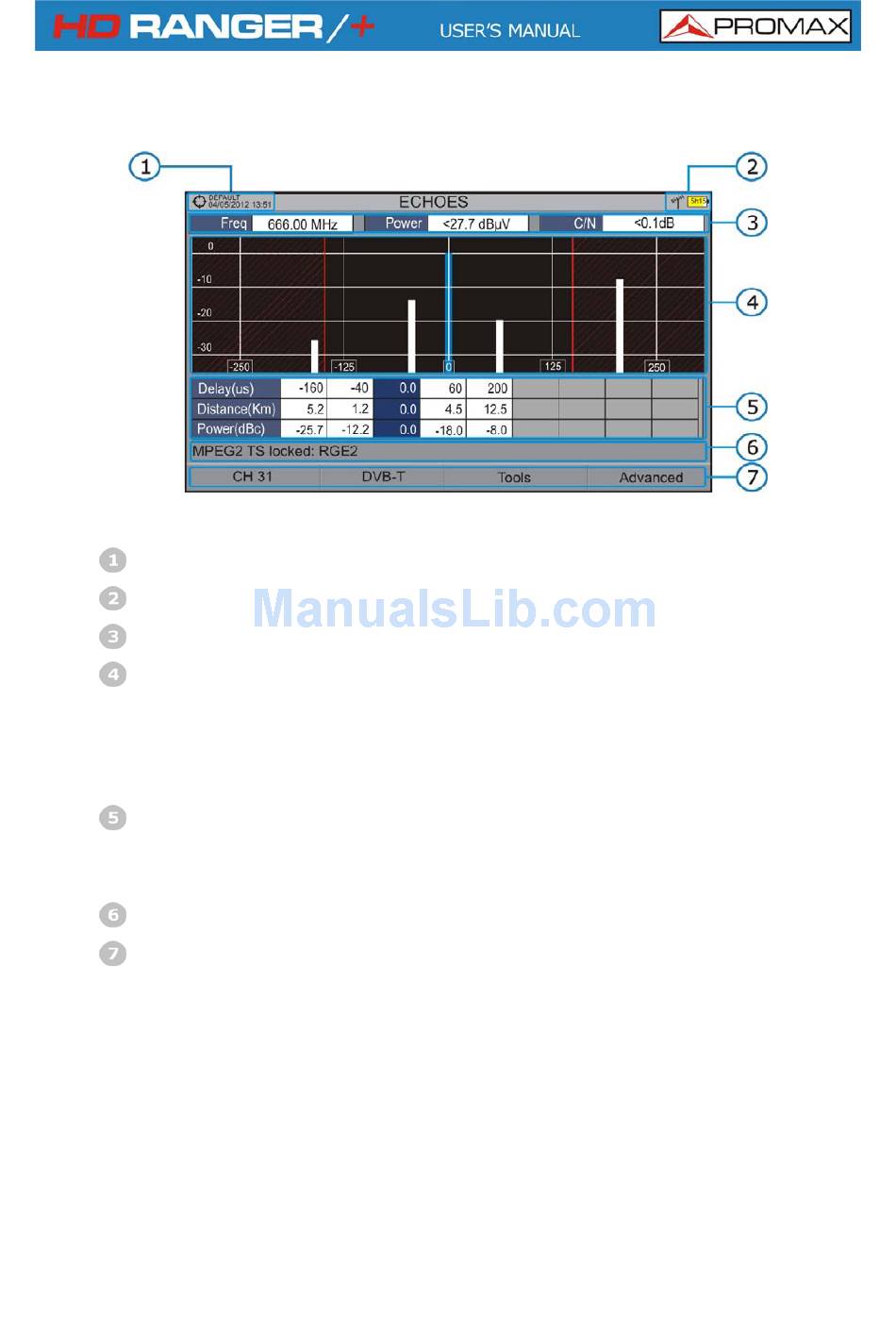

The following describes the ECHOES screen:
Selected installation; date and time.
Selected band, battery level.
Main signal data: Frequency, Power and C/N.
ECHOES Diagram.
The display shows a graphical representation of the echoes. The
horizontal axis of the graph corresponds to the delay in receiving the
echo on the main path (the stronger signal).The vertical
the attenuation of the echo in dB on the main path.
Data box with main data regarding echoes.
In the list of echoes it shows the power, the delay in microseconds and
the distance in kilometres to the echoes.
Signal status (searching / locked / multiplex name).
Softkeys menus.
Joystick left/right (CHANNEL mode): It changes the channel.
►
Joystick left/right (ECHOES mode): It moves cursor over the echoes
►
window.
Joystick up/down (ECHOES mode): It changes Zoom.
►
Remember to press the joystick to change the ECHOES mode to CHANNEL
mode.
