RANGER

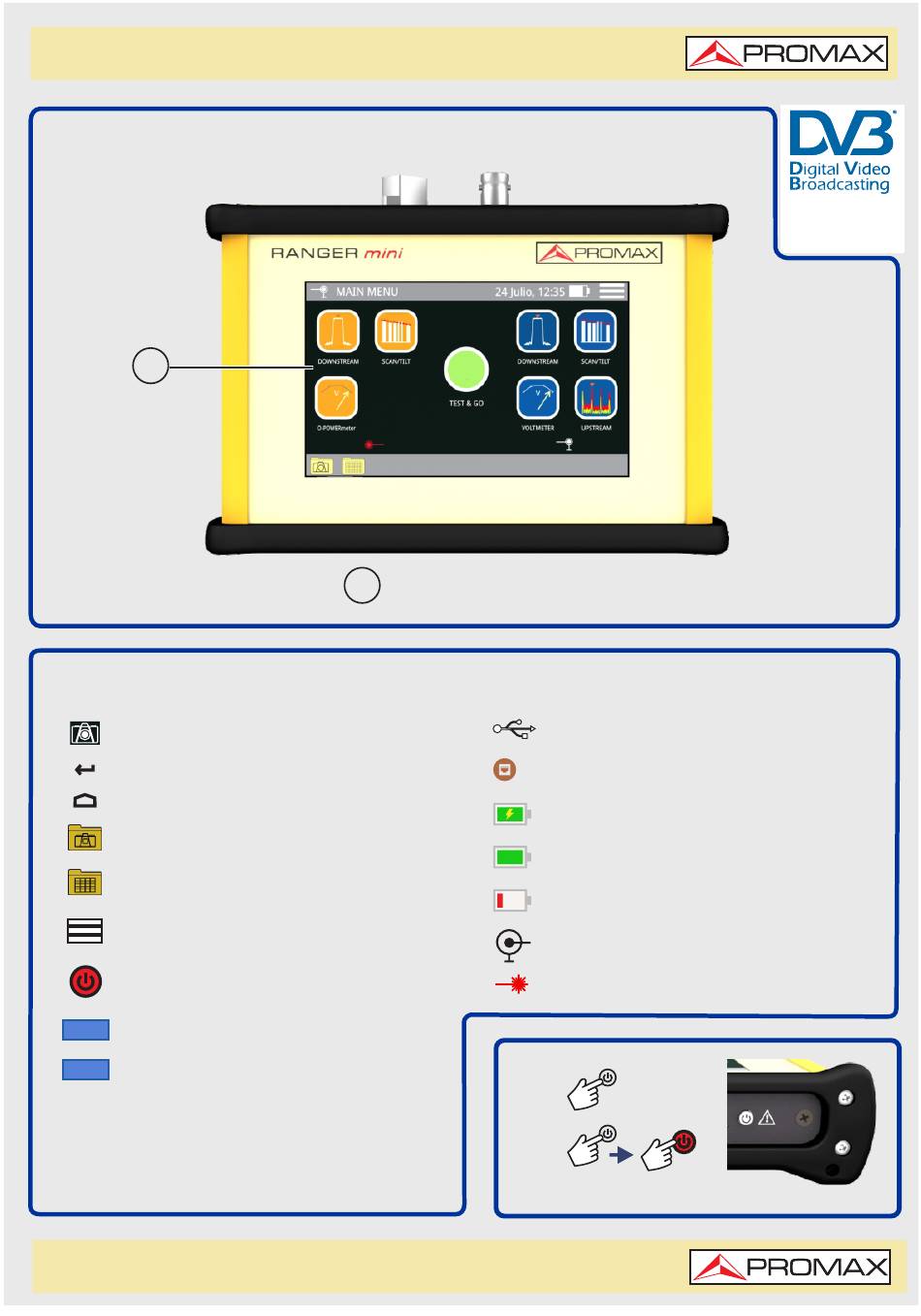

FRONT VIEW
1
TOUCH ICONS
Screenshot
Back to previous screen
Back to main screen
Access to screenshots
Access to dataloggers
Access to settings menu
Switch off
123
Edit value
abc
Select parameter
Find the user's manual on the download area at: www.promaxelectronics.com
mini
QUICK REFERENCE GUIDE
1
TFT Touch screen
INDICATIVE ICONS
USB flashdrive connected and detected
Connected to Ethernet network
Batery charging
Batery not charging. Green
level indicates battery left
Low battery
Cable measurements
Fibre optics measurements
ON:
OFF:
Trademark of the
DVB - Digital Video
Broadcasting Project
Advertisement
Table of Contents
Related Manuals for Promax RANGER mini
Summary of Contents for Promax RANGER mini
- Page 1 mini RANGER QUICK REFERENCE GUIDE FRONT VIEW Trademark of the DVB - Digital Video Broadcasting Project TFT Touch screen INDICATIVE ICONS TOUCH ICONS USB flashdrive connected and detected Screenshot Back to previous screen Connected to Ethernet network Back to main screen Batery charging Access to screenshots Batery not charging.
-
Page 2: Front View

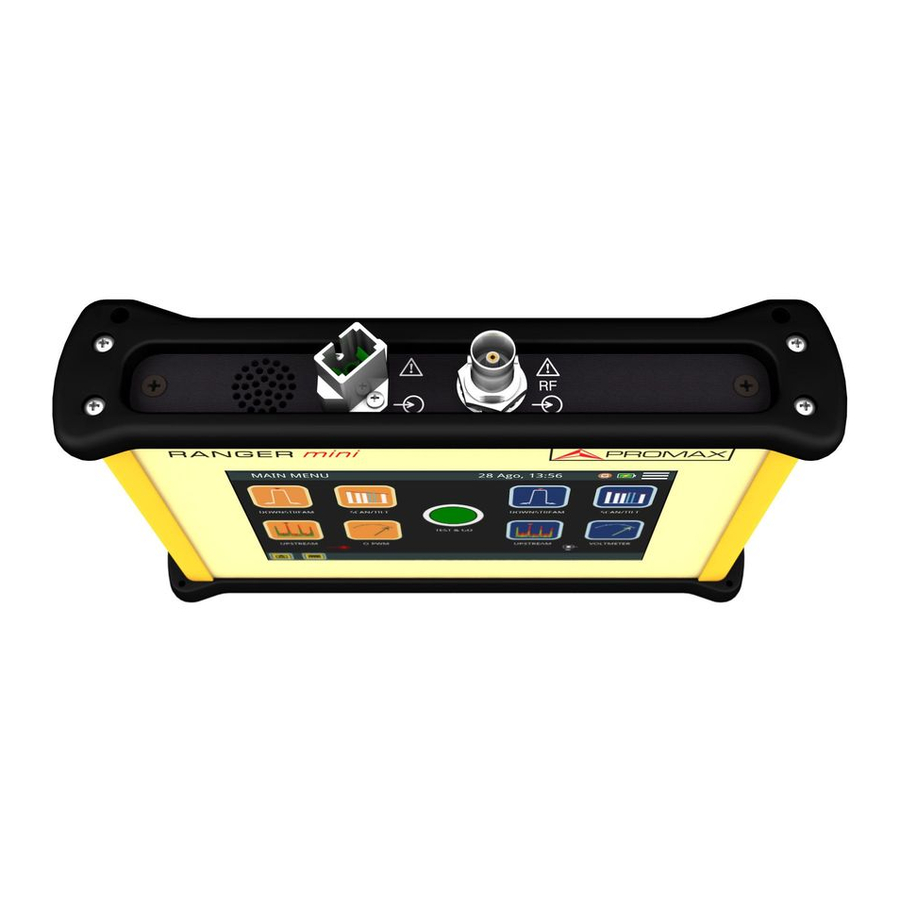

mini RANGER QUICK REFERENCE GUIDE FRONT VIEW SC-APC connector (fibre optics signal input) Universal connector for F/F or F/BNC adapter (RF input signal) (Optional) BOTTOM VIEW ETHERNET connector for network USB connector for flashdrive device 12 V DC power input connector Configuration Menu MAIN SETTINGS MENU Edit channel plan... -
Page 3: Downstream Spectrum Analyzer
mini RANGER QUICK REFERENCE GUIDE DOWNSTREAM SPECTRUM ANALYZER 1 Selected channel. When pressing on it deploys a list of available channels. 2 Frequency selected. When pressing on it pops up a virtual numeric keypad to edit frequency. 3 DOCSIS Bonding Group selected and carrier. 4 According to signal type: Digital signal: Power for channel bandwidth or frequency. - Page 4 mini RANGER QUICK REFERENCE GUIDE UPSTREAM UPSTREAM 1 Frequency selected. When pressing on it pops up a virtual numeric keypad to edit frequency. 2 Level for the selected frequency. 3 Full band RF cable power. 4 Marker in the selected frequency. 5 Arrows to change reference level.
- Page 5 mini RANGER QUICK REFERENCE GUIDE SCAN 1 Selected channel. When pressing on, it deploys a list of available channels. 2 Frequency selected. When pressing on, it pops up a virtual numeric keypad to edit frequency. 3 DOCSIS Bonding Group selected and carrier (if any). 4 According to signal type: Digital signal: Power for channel bandwidth or frequency.
- Page 6 mini RANGER QUICK REFERENCE GUIDE TILT 1 It shows pilot signals frequency and power. Press on frequency to change its value. P1/P4: End pilot signals. P2/P3: Intermediate pilot signals. 2 Power difference between P1 and P4. 3 TILT: Inclination rate in dB per MHz. 4 Full band RF cable power.
- Page 7 mini RANGER QUICK REFERENCE GUIDE VOLTMETER 1 RF-PWR: Full bandwidth power. 2 Vin DC: DC input voltage. 3 Vin AC: AC input voltage and frequency. : Current out 5 Voltage supply for the LNB: ON Voltage: Check the box to enable voltage supply. 13 Volts / 18 Volts: Check the box to select between polarization (vertical=13 V;...
- Page 8 mini RANGER QUICK REFERENCE GUIDE v10.0.1 30-08-2018 (0 DG0341) mini RANGER Find the user's manual on the download area at: USER MANUAL www.promaxelectronics.com DOWNLOAD...
