Operation

Connect the RF input signal to the equipment.
Select through the Tune Settings menu
satellite).
Access the MEASUREMENT option by pressing the
Press again
Views for digital signals are:
MEASUREMENT 1/3: FULL MEASUREMENT
Selected installation, date and time.
Measurement value of the selected parameter.
Number of view/total views.
Selected band, battery level.
Total power detected over the whole selected band (terrestrial or satellite).
It is shown when POWER is selected as bar graph measure.
Graphical measurement of the selected parameter.
Measurement values for the type of locked signal.
Signal status (searching/locked/multiplex name).
Softkeys menus.
Joystick up/down: It changes selected parameter.
►
April 2013
to display the next view.

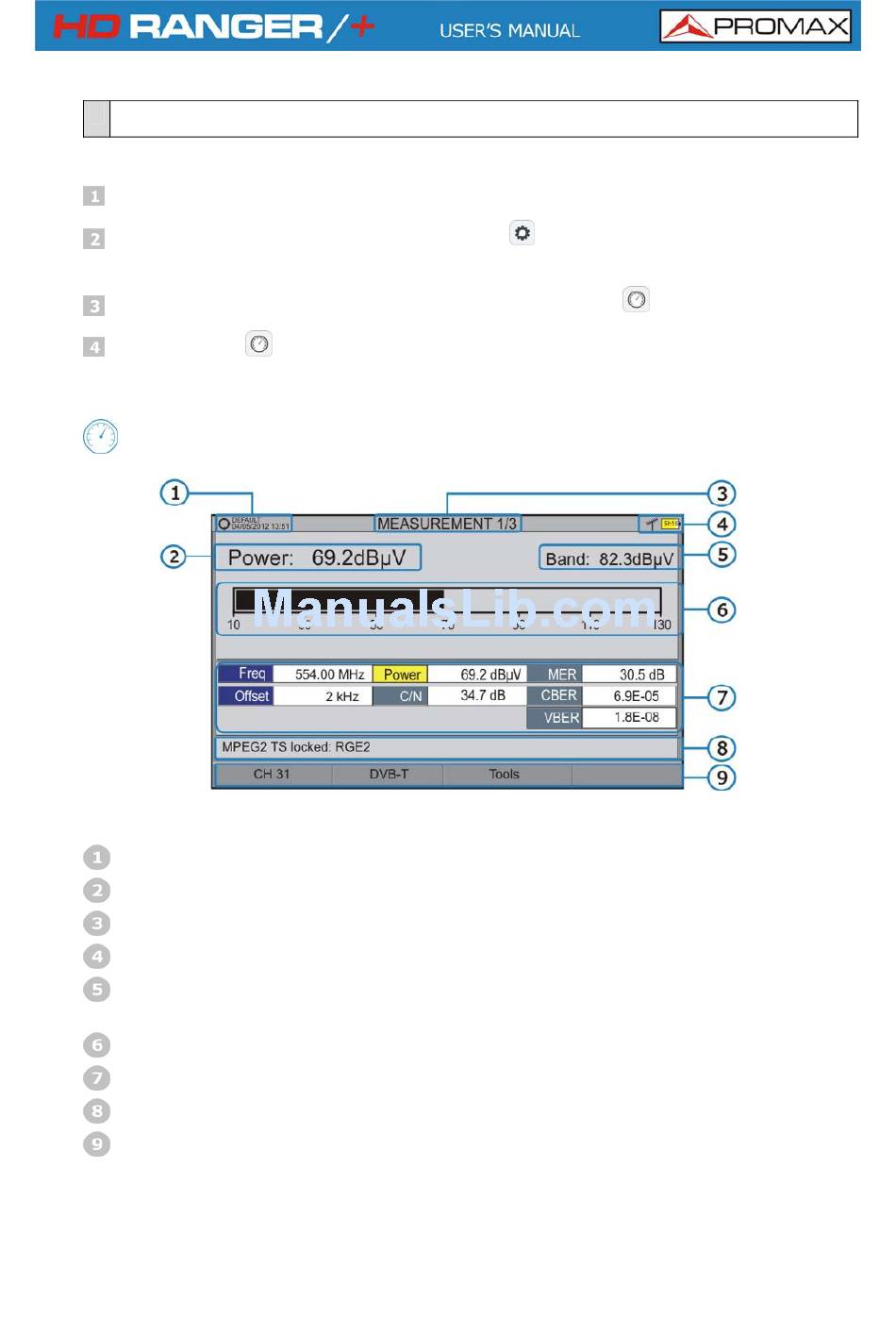

Figure 24.
