3-6 Wiring
Control Terminal
Designations
Terminal
Number
11 Control Power Input
12 Control Power Common
13 Controller Enable Input
14 Logic Ground
15 Dual Ramp/Option Input
16 Start Input ①
17 Stop Input ①
18 Auxiliary Relay Common
19 N.O. Auxiliary Contact #1 (Normal/Up-to-speed)
20 N.C. Auxiliary Contact #2 (Normal/Up-to-speed)
①
Do not connect any additional loads to these terminals. These "parasitic" loads may cause problems with operation, which may result in false starting and stopping.
②
When control power is absent from terminals 11 and 12, this contact will be normally open. Upon application of control power, the contact will take the state, normally
open or normally closed, as programmed.
Grounding
Provision
As shown in Figure 3.9, the SMC Dialog Plus controller contains 20
control terminals on the front of the controller.

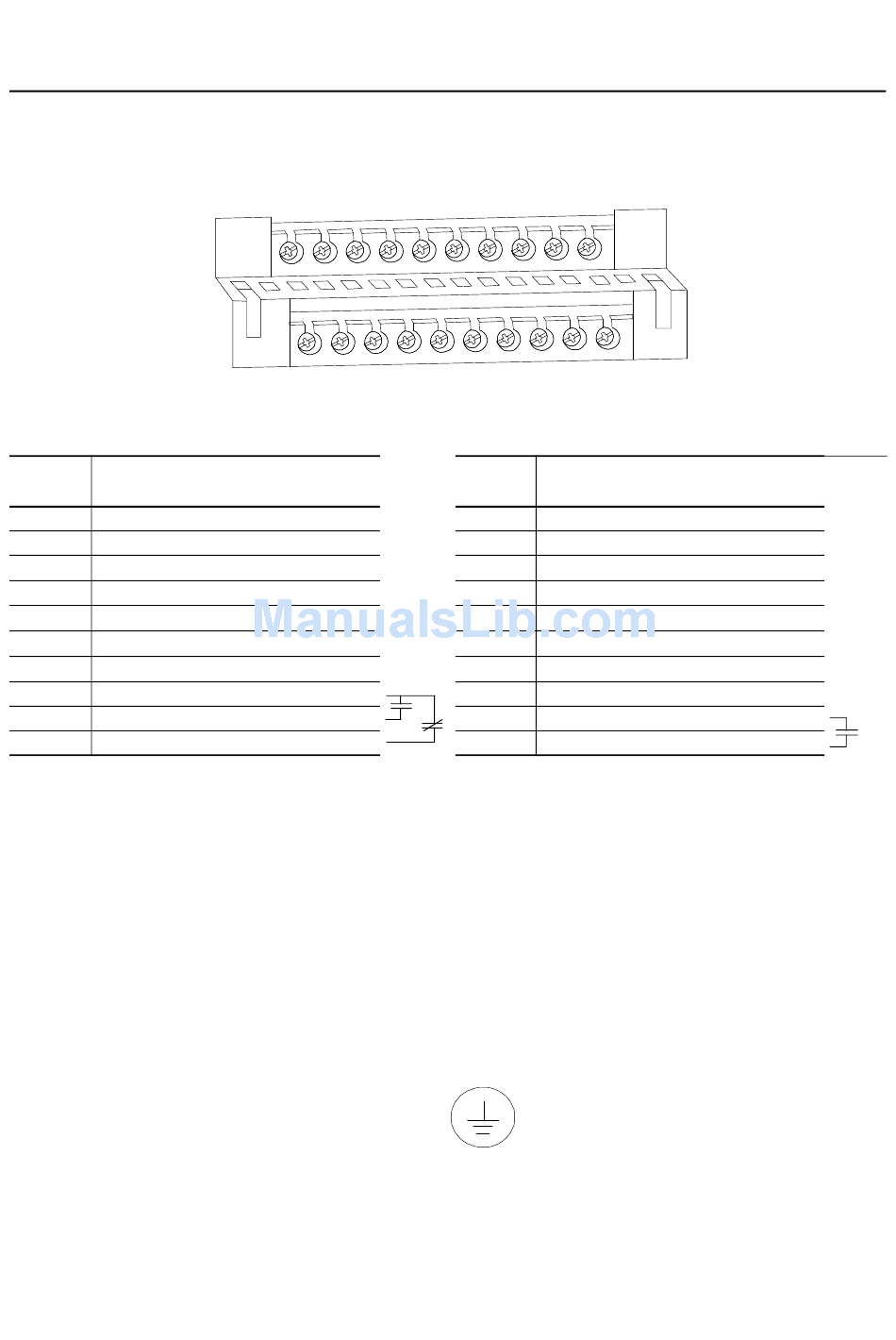

Figure 3.9 SMC Dialog Plus Controller Control Terminals
1 3
1 1 1 2
2 2 2 3
2 1
Description
①
①
Provision for connecting a field installed grounding conductor is
provided on each controller. It is shown in Figure 3.10 and is located
on the heatsink. This symbol is the ground connection identification
symbol as defined by IEC Publication 417, Symbol 5019.
If the protective conductor is not connected to the heatsink, the
plating and/or paint must be cleaned from the four mounting holes or
four star washers (tooth lock washers) must be used.
Figure 3.10 Grounding Provision
1 9
1 7 1 8
1 6
1 5
1 4
2 8
2 6 2 7
2 5
2 4
Terminal
Number
21
22
23
24
25
26
27
28
29
30
2 0
3 0
2 9
Description
Not Used
Not Used
Not Used
Not Used
Converter Module Fanning Strip Connection
Converter Module Fanning Strip Connection
Converter Module Fanning Strip Connection
Converter Module Fanning Strip Connection
N.O./N.C. Auxiliary Contact #3 (Normal/Fault)
N.O./N.C. Auxiliary Contact #3 (Normal/Fault)
②
②
②
②
