Example Information

Description
Node Address:
Data Rate:
Datalinks:
Zero data to logic command on
fault:
Fault on comm loss:
Fault on PLC/SLC program/idle
modes:
①
The SMC Dialog Plus controller does not support Datalinks.

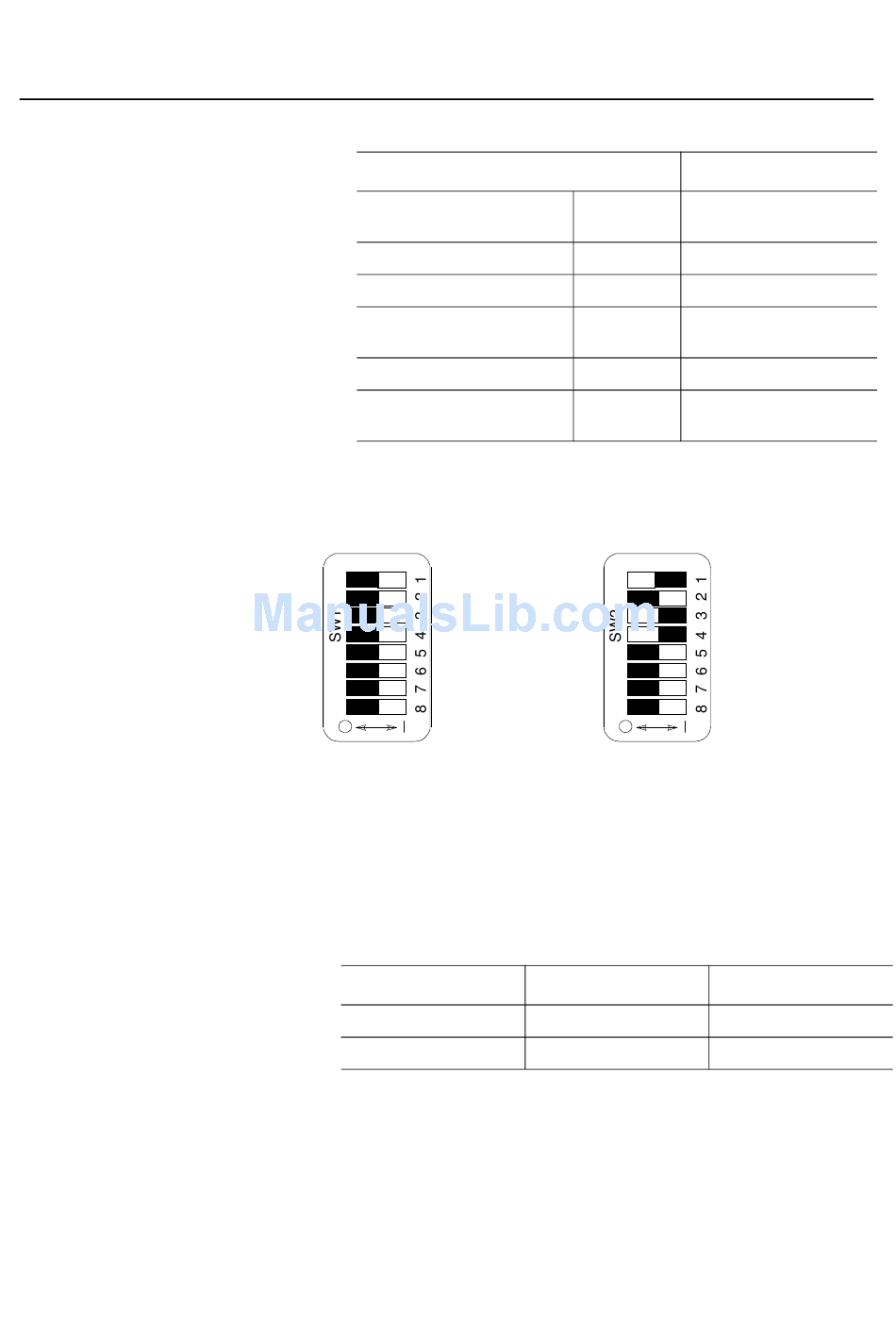

Switch Settings

Disabled Datalink A (Off)
Disabled Datalink B (Off)
Disabled Datalink C (Off)
Disabled Datalink D (Off)
Not Used (Off)
Zero Data (Off)
Fault on Comm Loss (Off)
Fault on Program/Idle (Off)

I/O Mapping

The SMC Dialog Plus controller's first two words of data are pre-
configured in the 1203-GK5 communication module as follows:
Word
1
2
①
The SMC Dialog Plus controller does not utilize this feature; a value of zero should be given.
②
The feedback word is the value of parameter 4, Current Phase A.
Serial Communications
13 SW2, Switches 1, 3 & 4 (On)
Switches 2, 5 & 6 (Off)
125k SW2, Switches 7 & 8 (Off)
①
No SW1, Switches 1 - 4 (Off)
Yes SW1, Switch 6 (Off)
Yes SW1, Switch 7 (Off)
Yes SW1, Switch 8 (Off)
Node Address 13 (On)
Node Address 13 (Off)
Node Address 13 (On)
Node Address 13 (On)
Node Address 13 (Off)
Node Address 13 (Off)
Data Rate = 125k (Off)
Data Rate = 125k (Off)
Output Data
Logic Command
①
Reference
8-25
Switch Setting
Input Data
Logic Status
②
Feedback
