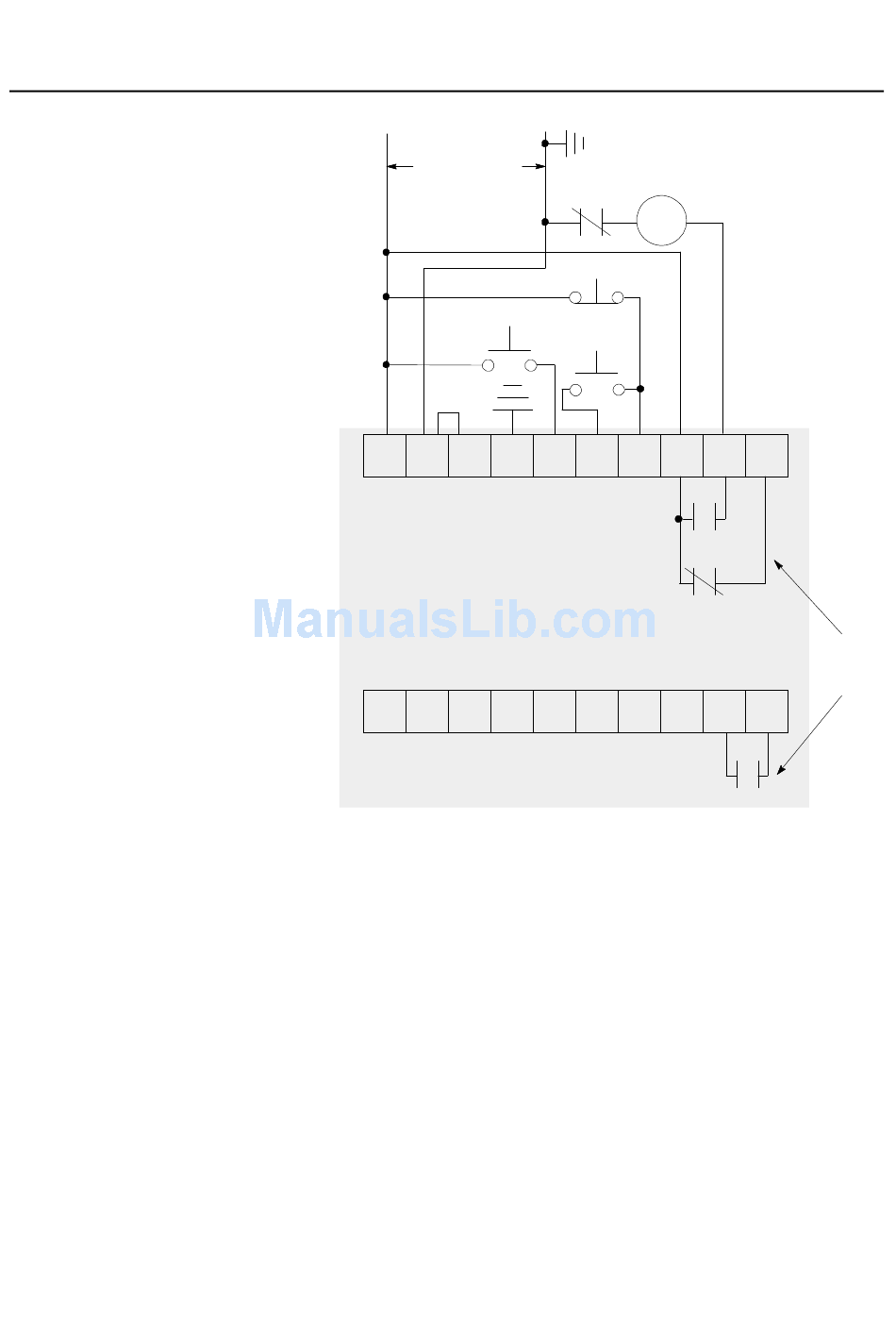

Figure 7.11 Typical Retrofit Wiring Diagram
Control Power ➂
Option Command ➀ ➃
11
12
13
14
SMC Dialog Plus
Control Terminals
21
22
23
24
①
Customer supplied.
②
Overload protection should be disabled in the SMC Dialog Plus controller.
③
Refer to the controller nameplate to verify the rating of the control power input voltage.
④
Slow Speed or Accu-Stop.
Note: Refer to Chapter 3 for typical power circuits.
Options
OL ➀ ➁
M ➀
Stop ➀
Start ➀
15
16
17
18
Auxiliary contacts set
for Normal
25
26
27
28
7-15
19
20
Internal
Auxiliary
Contacts
29
30
