Standard Controller
Wiring Diagrams
Figure 3.11 through Figure 3.22 show typical wiring for the SMC
Dialog Plus controller.

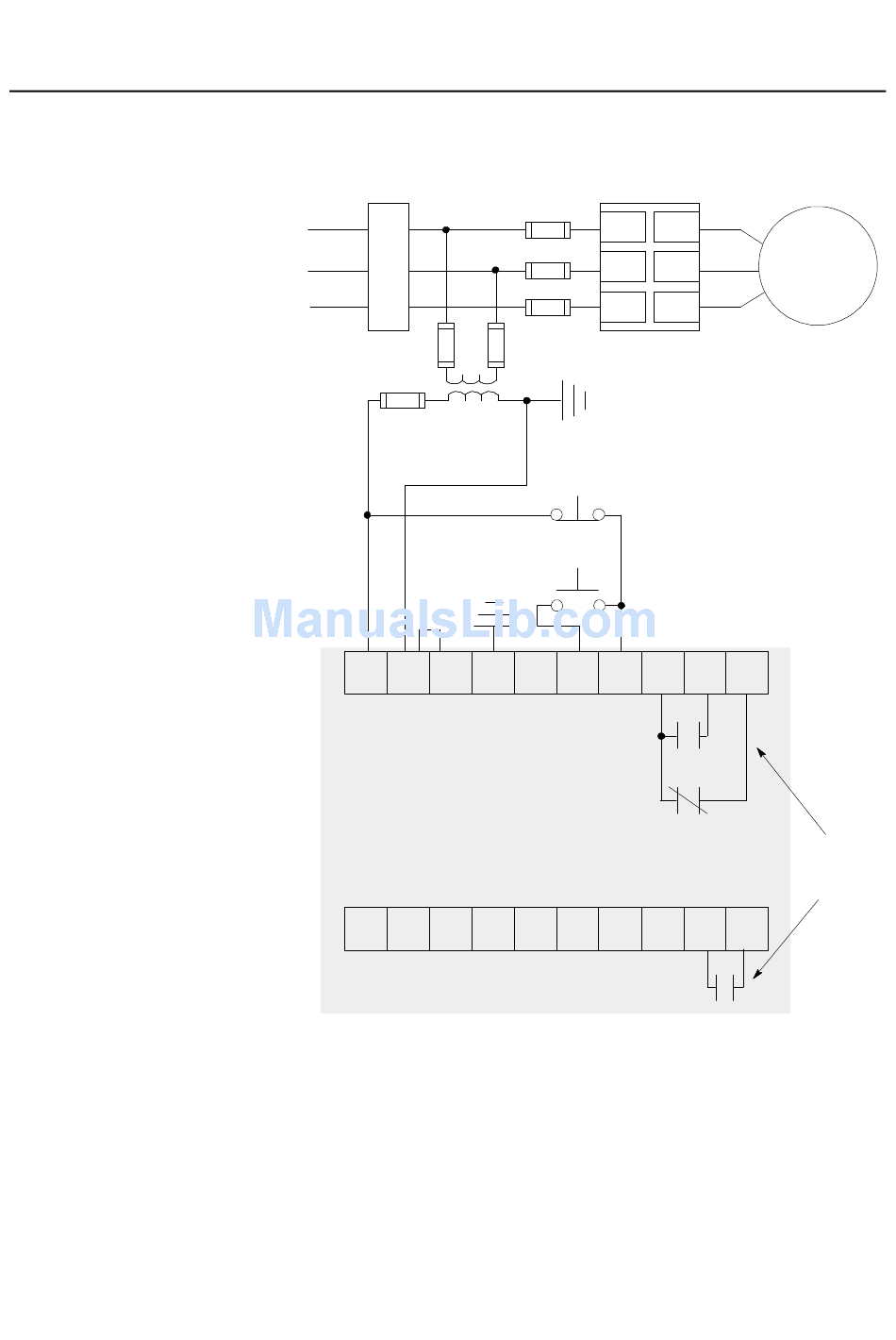

Figure 3.11 Typical Wiring Diagram for Standard Controller
3-Phase
Input Power
Branch
Protection ➀
➀
➁
11 12 13
SMC Dialog Plus
Control Terminals
21 22 23
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
L1/1
L2/3
L3/5
Fast-acting
➀
SCR Fuses
SMC Dialog Plus
(optional) ➀
Controller
➀
Stop ➀
Start ➀
14 15 16 17
24 25 26 27
Wiring
T1/2
M
T2/4
T3/6
18 19 20
Internal
Auxiliary
Contacts
28 29 30
3-7
➀
