Figure 2.9 shows the connection between the controller and the
module.

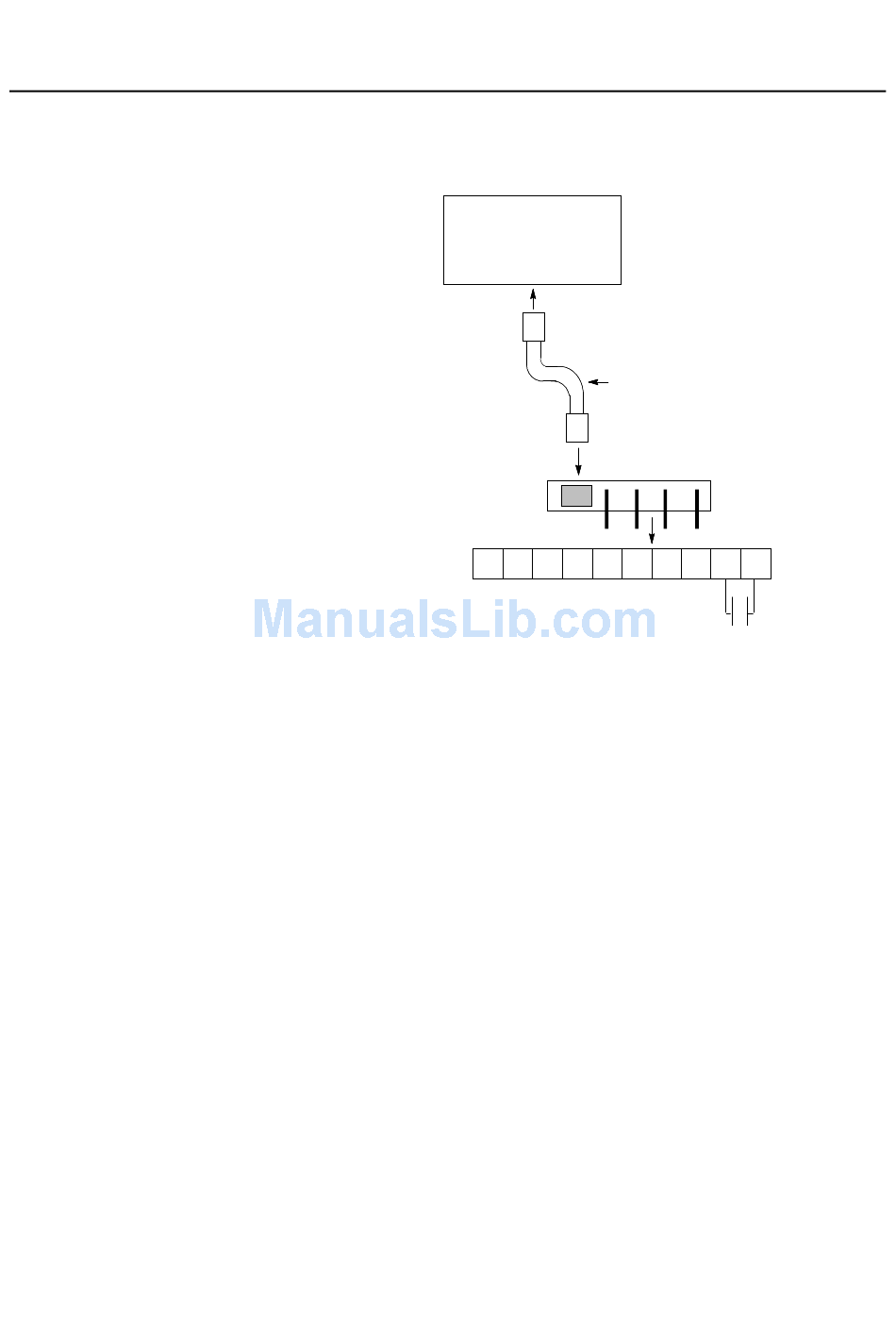

Figure 2.9 Converter Module Connection Interface

L1 L2
T1 T2
21 22 23 24 25 26 27 28 29 30
①
The converter module rating must be programmed in the calibration group for proper current
measurement scaling.
②
Cable length is three meters. Only the cable provided with the converter module is compatible with
the SMC Dialog Plus controller. Use of any other cable may result in faulty controller operation.
Installation
L3
Converter
Module ➀
T3
Cable (provided as
standard with the
converter module) ➁
150-NFS
Fanning Strip
2-17
