Rockwell Automation SLC 500 Selection Manual

Hide thumbs Also See for SLC 500:

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
www.aotewell.com
www.fa-market.com
info@aotewell.com

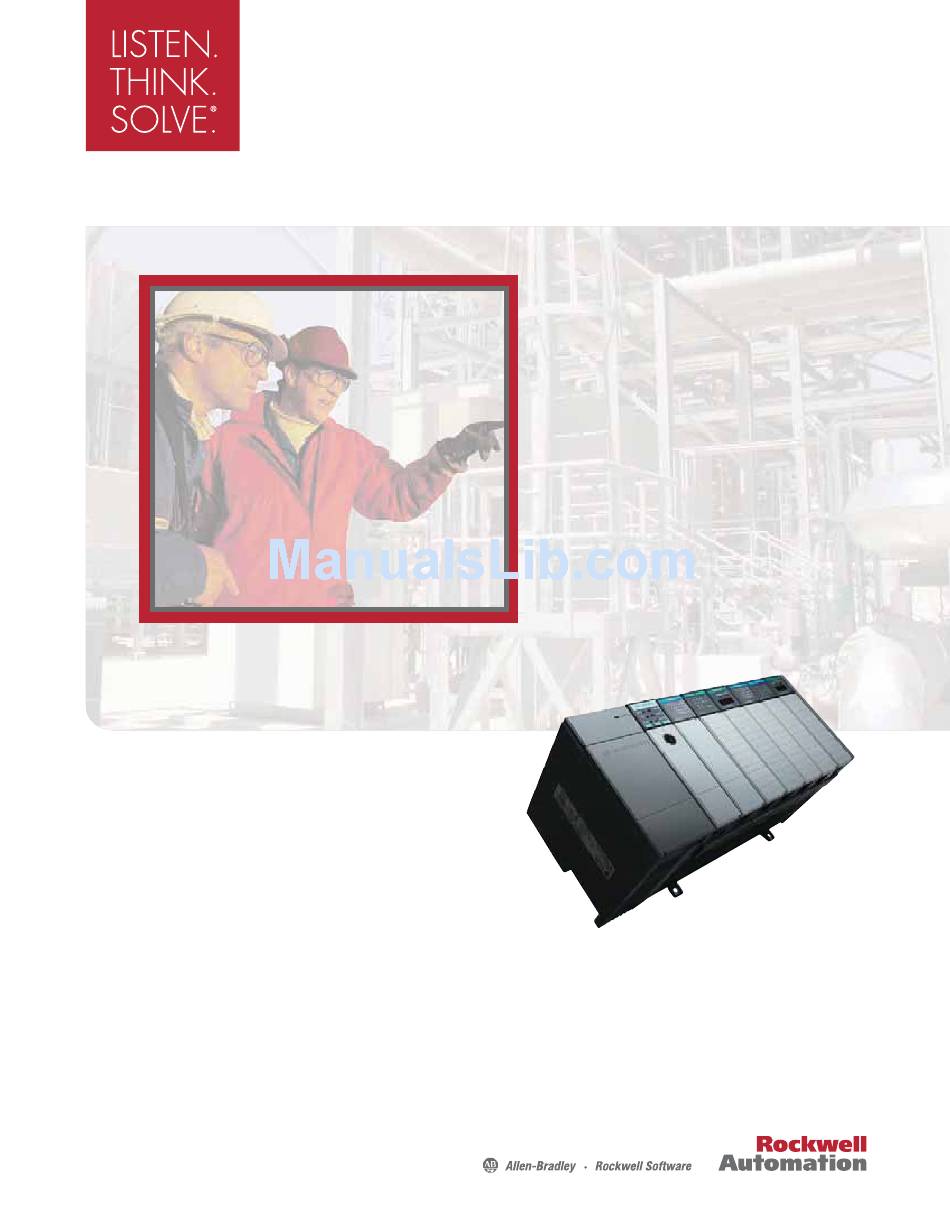

SLC 500 SYSTEMS
SELECTION GUIDE
BULLETIN 1746 AND 1747
AoteWell International.inc
sales@aotewell.com
Tel: +852-6563-2160

Advertisement

loading

Related Manuals for Rockwell Automation SLC 500

Summary of Contents for Rockwell Automation SLC 500

  • Page 1 SLC 500 SYSTEMS SELECTION GUIDE BULLETIN 1746 AND 1747 AoteWell International.inc sales@aotewell.com Tel: +852-6563-2160...
  • Page 2 Allen-Bradley, ControlLogix, PLC-5, RSLinx, VersaView, Block I/O, CompactLogix, Flex, FlexLogix, MicroLogix, PanelView, RSLogix, RSNetWorx and SLC are trademarks of Rockwell Automation. Trademarks not belonging to Rockwell Automation are the property of their respective companies. Publication 1747-SG001D-EN-P — January 2009 AoteWell International.inc sales@aotewell.com...

  • Page 3: Table Of Contents

    SLC 500 System Overview The Allen-Bradley SLC 500 is a small chassis-based family of programmable controllers, discrete, analog, and specialty I/O, and peripheral devices. The SLC 500 family delivers power and flexibility with a wide range of communication configurations, features, and memory options. The RSLogix 500 ladder logic...
  • Page 4 Local Systems At minimum, a modular hardware SLC 500 control system consists of a processor module and I/O modules in a single 1746 chassis with a power supply. You can configure a system with one, two, or three local chassis, for a maximum total of 30 local I/O or communication modules.
  • Page 5 SLC 500 processors are available with a large range of memory sizes (1 K through 64 K) and can control up to 4096 input and 4096 output signals. All modular processors except the SLC 5/01 processor are capable of controlling remotely located I/O.
  • Page 6 www.aotewell.com www.fa-market.com info@aotewell.com Communications Evaluate what communications need to occur. Knowing your communications requirements will help you determine which processor and which communications devices your application might require. An SLC processor communicates across the 1746 backplane to 1746 I/O modules in the same chassis in which the processor resides.
  • Page 7 SLC 500 Common The following specifications apply to all SLC 500 modular components unless noted. Specifications Description Specification Operating: 0…60 °C (32…140 °F) Temperature Storage: -40…85 °C (-40…185 °F) Humidity 5…95% without condensation Operating: 1.0 g at 5…2000 Hz Vibration Non-operating: 2.5 g at 5…2000 Hz...

  • Page 8: Selecting Slc 500 I/O Modules

    Step 1 - Select: Selecting SLC 500 I/O modules - available in a variety I/O Modules of densities and voltage options. Some modules have diagnostic features, individually isolated Digital I/O modules, analog I/O modules, and specialty temperature, counting,...
  • Page 9 www.aotewell.com www.fa-market.com info@aotewell.com Digital I/O Module Overview Cat. No. Voltage Category I/O Points Description For Detailed Specifications, See DC Modules 1746-IB8 24V dc Current Sinking DC Input Module 1746-IB16 24V dc Current Sinking DC Input Module 1746-IB32 24V dc Current Sinking DC Input Module page 10 Sinking DC Input Modules 1746-ITB16...
  • Page 10 If the input module is connected in parallel with an inductive load, use surge suppression across the load to protect the input module from damage caused by reverse voltage. Refer to the SLC 500 Modular Hardware Style User Manual, publication 1747-UM011, for more information on surge suppression.
  • Page 11 OFF delay = 47 ms. § Recommended surge suppression: For transistor outputs, when switching 24V dc inductive loads, use a 1N4004 diode reverse-wired across the load. Refer to the SLC 500 Modular Hardware Style User Manual, publication 1747-UM011, for more information on surge suppression.
  • Page 12 25 ms (ac) ✶ An ac input device must be compatible with SLC 500 input circuit inrush current. A current limiting resistor can be used to limit inrush current. However, the operating characteristics of the ac input circuit are affected.
  • Page 13 ✶ Connecting surge suppressors across your external load extends the life of SLC 500 relay contacts. For recommended surge suppression when switching ac inductive loads, consult the SLC 500 Modular Hardware Style User Manual, publication 1746-UM011. Recommended surge suppression for switching 24V dc inductive loads is 1N4004 diode reverse wired across the load.
  • Page 14 1746-IB16, 1746-ITB16, Simulator 1746-IV16, 1746-ITV16, and 1746-IN16 modules. The input simulator provides 16 switches for simulating inputs to the SLC 500. 1746 Analog I/O Analog I/O modules feature user-selectable voltage or current inputs, backplane isolation, removable terminal blocks, and diagnostic feedback.
  • Page 15 www.aotewell.com www.fa-market.com info@aotewell.com Analog I/O Module Overview Cat. No. Description Voltage Category For Specifications, See page 16: General Input Specifications 1746-NI4 High Resolution (4) Analog Input Module -20…+20 mA (or) -10…+10V dc page 16: Current Loop Input Specifications page 17: Voltage Input Specifications page 18: General Input Specifications page 18: Input Step Response 1746-NI8...
  • Page 16 www.aotewell.com www.fa-market.com info@aotewell.com 4-Channel Analog I/O Modules General Input Specifications for 4-Channel Modules Cat. No. 1746-NI4 1746-NIO4I 1746-NIO4V 1746-FIO4I 1746-FIO4V Backplane Current (mA) at 5V 25 mA 55 mA 55 mA 55 mA 55 mA Backplane Current (mA) at 24V 85 mA 145 mA 115 mA...
  • Page 17 The 1746-NO4I and 1746-NO4V analog output modules have connections for user-supplied 24V dc power supplies. When external 24V dc power is used, the module only draws 5V dc current from the SLC backplane. If an external 24V dc power supply is required, the tolerance must be 24V ±10% (26.6…26.4V dc). The user power supplies for SLC 500 modular systems, 1746-P1, 1746-P2, 1746-P5, and 1746-P6 power supplies do not meet this specification.
  • Page 18 www.aotewell.com www.fa-market.com info@aotewell.com 8-Channel Input Modules General Input Specifications for 1746-NI8 Cat. No. 1746-NI8 Backplane Current (mA) at 5V 200 mA Backplane Current (mA) at 24V 100 mA Backplane Power Consumption 3.4 W maximum (1.0 W at 5V dc, 2.4 W at 24V dc) Number of Inputs Converter Resolution 16-bit...
  • Page 19 www.aotewell.com www.fa-market.com info@aotewell.com Current Loop Specifications for 1746-NI8 Cat. No. 1746-NI8 Current Input (maximum) ±30 mA 250 Ω Input Impedance 1 μA Input Resolution 1 μA Display Resolution Overall Module Accuracy 0…20 mA, 4…20 mA, ±20 mA: ±0.05% 0…60 °C (32…140 °F) 0…1 mA: ±0.5% Overall Module Accuracy Drift ±12 ppm/°C...
  • Page 20 www.aotewell.com www.fa-market.com info@aotewell.com 8-Channel Output Modules Optional 24V dc power supply must be N.E.C. Class 2. Output Specifications for 8-Channel Modules Cat. No. 1746-NO8I 1746-NO8V Backplane Current (mA) at 5V 120 mA 120 mA Backplane Current (mA) at 24V 250 mA 160 mA✶...
  • Page 21 www.aotewell.com www.fa-market.com info@aotewell.com 16-Channel Input Modules General Input Specifications for 16-Channel Modules Cat. No. 1746-NI16I 1746-NI16V Backplane Current (mA) at 5V 125 mA 125 mA Backplane Current (mA) at 24V 75 mA 75 mA Backplane Power Consumption 2.425 W maximum (0.625 W at 5V dc, 1.8 W at 24V dc) 2.425 W maximum (0.625 W at 5V dc, 1.8 W at 24V dc) Isolation Voltage Tested at 500V ac and 710V dc for 60 seconds...
  • Page 22 4 ms ✶ Assuming all of the enabled channels have the filter frequency shown in the first column. SLC 500 Thermocouple/mV Input Modules Temperature Modules All modules interface to thermocouple types J, K, T, E, R, S, B, and N, and also accept millivolt signals that standard analog modules are not able to detect.
  • Page 23 www.aotewell.com www.fa-market.com info@aotewell.com Thermocouple Module Specifications Cat. No. 1746-NT4 1746-NT8 1746-INT4 Backplane Current (mA) at 5V 60 mA 120 mA 110 mA Backplane Current (mA) at 24V 40 mA 70 mA 85 mA Number of Inputs 4 plus a CJC sensor 8 plus a CJC sensor 4 plus a CJC sensor Thermocouple Types J, K, T, E,...
  • Page 24 www.aotewell.com www.fa-market.com info@aotewell.com Thermocouple Temperature Ranges Temperature Range for All Modules Accuracy Max. Error at +25 °C (+77 °F) Input °C °F 1746-NT4 1746-NT8 1746-INT4 -210…760 °C -346…1400 °F ±1.06 °C (±1.91 °F) ±1.4 °C (±2.52 °F) ±1.6 °C (±2.88 °F) -270…1370 °C -454…2498 °F ±1.72 °C (±3.10 °F)
  • Page 25 www.aotewell.com www.fa-market.com info@aotewell.com RTD/Resistance Input Modules Cat. No. 1746-NR4 1746-NR8 Backplane Current (mA) at 5V 50 mA 100 mA Backplane Current (mA) at 24V 50 mA 55 mA Number of Inputs 100 Ω Platinum (385) 100 Ω Platinum (385) 200 Ω Platinum (385) 200 Ω...
  • Page 26 www.aotewell.com www.fa-market.com info@aotewell.com RTD Temperature Range and Accuracy Specifications 1746-NR4 1746-NR8 0.5 mA Excitation 2.0 mA Excitation 0.25 mA Excitation 1.0 mA Excitation Acc. ✶ Acc. ✶ Acc. ✶ RTD Type Temp. Range Temp. Range Acc.✶ Temp. Range Temp. Range -200…850 °C -200…850 °C ±0.5 °C...
  • Page 27 www.aotewell.com www.fa-market.com info@aotewell.com Counter I/O 1746-HSCE High Speed Counter Modules This module offers a single bi-directional counting channel, which supports quadrature, pulse/direction, or up/down counter input. Four on-board open collector outputs allow module control independent of the SLC processor scan. The module features three modes of operation: Range, Rate, and Sequencer.
  • Page 28 www.aotewell.com www.fa-market.com info@aotewell.com Process Control Blow Molding Module Modules This module features four independent axes of PID control plus one discrete I/O pair per channel for channel synchronization. The 1746-BLM module provides 256 points of resolution for each parison channel with interpolation, and has loop update times of 100 microseconds.
  • Page 29 www.aotewell.com www.fa-market.com info@aotewell.com Barrel Temperature Module This module provides four zones of Autotuned PID heat/cool temperature control. Each input functions as the process variable (PV) for a PID loop. The PID algorithm and tuning-assisted process (TAP) algorithm are performed on the module for each of the loops.
  • Page 30 Servo Control Module The 1746-HSRV servo control module is a single-axis, closed-loop servo controller which can be operated with a variety of SLC 500 processors and features block execution independent of the scan time of the processor. For fast and accurate control, the module monitors encoder feedback up to 300 kHz.
  • Page 31 www.aotewell.com www.fa-market.com info@aotewell.com Synchronized Axes Module This module offers four axes of closed-loop servo positioning control, using internal logic to synchronize multiple axes. The 1746-QS features a differential interface to either pulse-width modulated (DPM) or start/stop pulse (RPM) linear displacement transducer (LDT) inputs.
  • Page 32 www.aotewell.com www.fa-market.com info@aotewell.com BASIC Language Modules The BASIC modules add data collection and report generation capability to any SLC system. Two configurable channels enable you to connect to printers, operator interface terminals, modems, and other foreign devices. The 1746-BAS-T module is a higher-speed version of the 1746-BAS module with identical hardware features.
  • Page 33 Bulletin 1492 Wiring systems consist of interface modules (IFM) and pre-wired cables that replace the terminal blocks and up to 50% of the point-to-point wiring between the SLC 500 Wiring Options and field devices. Pre-wired cables connect directly to the IFM and have the Removable Terminal Blocks (RTBs) of most 24V ac/dc and 120V ac 16- and 32- channel 1746 discrete I/O modules.
  • Page 34 www.aotewell.com www.fa-market.com info@aotewell.com To find the interface module and cable for specific I/O modules using the following tables, follow these steps: 1. Locate I/O module required. The top row in each table indicates the I/O module for the I/O platform. 2.
  • Page 35 www.aotewell.com www.fa-market.com info@aotewell.com Fusible 20-Terminal IFMs I/O Module Cat. No. 1746-… Description Cat. No. 120V AC/DC with extra terminals for outputs 1492-IFM20F-F-2 — — — — — — — — — — — — Extra terminals with 24V AC/DC blown fuse 1492-IFM20F-F24-2 —...
  • Page 36 www.aotewell.com www.fa-market.com info@aotewell.com 40-Terminal IFMs and XIMs for 1746 Digital 32-Point I/O Modules Feed-through 40-Terminal IFMs I/O Module Cat. No. 1746-… Description Cat. No. Standard 132V AC/DC Max. 1492-IFM40F Extra terminals (2 per I/O) 132V AC/DC Max. 1492-IFM40F-2 3-wire sensor type input devices 60V AC/DC Max. 1492-IFM40F-3 —...
  • Page 37 www.aotewell.com www.fa-market.com info@aotewell.com Relay Master and Expander 40-Terminal XIMs I/O Module Cat. No. 1746-… Description Cat. No. Relay Master 40-pin master with eight (8) 24V DC relays 1492-XIM4024-8R — — — 40-pin master with sixteen (16) 24V DC relays 1492-XIM4024-16R —...
  • Page 38 www.aotewell.com www.fa-market.com info@aotewell.com AIFMs for 1746 Analog I/O Modules I/O Module Cat. No. 1746-… Description Cat. No. Feed-through 4-channel input, output or 2-in/2-out combination with 1492-AIFM4-3 — — — — — 3 terminals/channel 6-channel isolated with 3…4 terminals/channel 1492-AIFM6S-3 — —...

  • Page 39: Selecting Network Communications

    Rockwell Automation offers many control and communications media products to help you integrate plant operations. The SLC 500 family features communications modules and devices which provide support for different networks, including EtherNet/IP, ControlNet, DeviceNet, DH+, DH-485, Universal Remote I/O and serial networks.
  • Page 40 www.aotewell.com www.fa-market.com info@aotewell.com You can configure your system for information exchange between a range of devices Selecting a Network and computing platforms, and operation systems. Use the table below to help you select a network. Network Selection Criteria If your application requires Choose this network Select this communication module/device - High-speed data transfer between information systems and/or a large quantity...
  • Page 41 PC with RSLogix 500 PC Ethernet and RSLinx Interface Card Ethernet connectivity for SLC 500 is provided for the following: SLC 5/05 processor 1761-NET-ENI/1761-NET-ENIW MicroLogix 1000 controllers may be used with the 1761-NET-ENI, or -ENIW, however some features are not supported:...
  • Page 42 www.aotewell.com www.fa-market.com info@aotewell.com Ethernet Interface (ENI) and Web-Enabled Ethernet Interface (ENIW) The 1761-NET-ENI module provides EtherNet/IP Messaging connectivity for all DF1 full-duplex devices. The ENI allows users to easily connect SLC 5/03 and SLC 5/04 controllers onto new or existing Ethernet networks and upload/download programs, communicate between controllers, and generate E-mail messages via SMTP (simple mail transport protocol).
  • Page 43 1747-ACN15 Adapter PanelView ControlLogix Terminal Controller ControlNet network connectivity for SLC 500 is provided by the following: 1747-KFC15 ControlNet Messaging Module 1747-SCNR ControlNet Scanner 1747-ACN15 and 1747-ACNR15 ControlNet Adapters ControlNet Messaging Module The 1747-KFC15 module provides the capability for an SLC 5/03, 5/04, and 5/05 processor to send or receive unscheduled ControlNet messages.
  • Page 44 www.aotewell.com www.fa-market.com info@aotewell.com ControlNet Scanner Module The 1747-SCNR module provides scheduled ControlNet network connections for SLC 5/02, 5/03, 5/04, and 5/05 processors. With scheduled messaging, the SLC processor can control I/O events in real time on the ControlNet network. The 1747-SCNR module can communicate with the 1771-PLC5C, 1756-Lx controllers, and with another 1747-SCNR module via scheduled messages on the ControlNet network.
  • Page 45 1747-SDN Scanner 1770-KFD Module DeviceNet Network 1761-NET-DNI Module MicroLogix 1000 Controller RediSTATION 1305 Drive DeviceNet connectivity for SLC 500 is provided by the following: 1747-SDN DeviceNet Scanner Module 1761-NET-DNI DeviceNet Interface Publication 1747-SG001D-EN-P — January 2009 AoteWell International.inc sales@aotewell.com Tel: +852-6563-2160...
  • Page 46 www.aotewell.com www.fa-market.com info@aotewell.com DeviceNet Scanner Module The 1747-SDN scanner module enables communication between an SLC 5/02 or higher processor and a maximum of 63 DeviceNet-compatible I/O devices. The scanner is the DeviceNet master, enabling data transfer between DeviceNet slave devices using the strobe and poll message mode. The SLC system supports multiple scanners in a single-processor chassis.
  • Page 47 1747-AIC Module Module SLC 5/02 Controller SLC 5/03 Controller Data Highway Plus connectivity for the SLC 500 is provided by the SLC 5/04 processor. See page 63 for more information on the SLC 5/04. Publication 1747-SG001D-EN-P — January 2009 AoteWell International.inc sales@aotewell.com...
  • Page 48 24V dc User Power PanelView Terminal SLC 5/02 Controller The SLC 500 family includes the following DH-485 devices: 1747-KE DH-485/RS-232C Interface Module 1761-NET-AIC Advanced Interface Converter 1747-AIC Isolated Link Coupler 1747-UIC USB to DH-485 Converter Publication 1747-SG001D-EN-P — January 2009 AoteWell International.inc...
  • Page 49 If the 1747-AIC Link Coupler is connected to the 1747-KE module with a 1747-C13 cable, the power for the link coupler comes from either an SLC 500 processor or an external power supply. Therefore, current requirements remain as listed. 1761-NET-AIC Advanced Interface Converter (AIC+) This device is an isolated RS-232 to RS-485 converter.
  • Page 50 The panel-mountable isolated link coupler is used to connect SLC 5/01, SLC 5/02, and SLC 5/03 processors to a DH-485 network. Where there are two or more SLC 500 processors on the link, one isolated link coupler is required for each processor.
  • Page 51 Remote I/O Network 1747-DCM Module Block I/O PanelView Terminal Universal Remote I/O Connectivity for SLC 500 is provided by the following interfaces: 1747-SN Remote I/O Scanner 1747-BSN Backup Remote I/O Scanner 1747-ASB Remote I/O Adapter 1747-DCM Direct Communication Module Publication 1747-SG001D-EN-P — January 2009 AoteWell International.inc...
  • Page 52 www.aotewell.com www.fa-market.com info@aotewell.com Remote I/O Scanner Module The 1747-SN module provides high-speed remote communication between an SLC processor and Allen-Bradley operator interface and control devices. The scanner provides connectivity of your SLC 5/02 or higher processor to devices such as InView Message displays, Power Monitor 3000, PanelView, 1791 Block I/O, Allen-Bradley Drives, 1746 I/O, 1771 I/O, and Flex I/O devices.
  • Page 53 www.aotewell.com www.fa-market.com info@aotewell.com Backup Scanner Module High Speed Serial Link 1747-BSN 1747-BSN Module Module RIO Network Network 1747-ASB Module The 1747-BSN module contains the full complement of RIO scanner features, plus backup capability for support of redundant processor applications. The backup system consists of one or more pairs of complementary modules, with one module residing in the primary system and the other in the backup system.
  • Page 54 1/2-slot, 1-slot, and 2-slot addressing. Direct Communication Module The 1747-DCM module links the SLC 500 controller to the Allen-Bradley PLC for distributed processing. The DCM acts as a remote I/O adapter on a remote I/O link.
  • Page 55 DF1 half-duplex master: polls and transmits messages between the master and each remote node. In master mode, the SLC 500 controller uses DF1 half-duplex polled protocol. DF1 half-duplex slave: uses the controller as a slave station in a master/slave serial network.
  • Page 56 The 1747 Port Splitters let a single RS-232/DF1 full-duplex communication port on a controller split into two separate ports for simultaneous connection with two external devices. The Port Splitter supports the following: SLC 500, PLC-5, MicroLogix, ControlLogix, CompactLogix, and FlexLogix controllers.
  • Page 57 www.aotewell.com www.fa-market.com info@aotewell.com SLC 5/03, 5/04, 5/05 Channel 0 (or other controller with RS-232/DF1 Full-Duplex Port) MicroLogix 1500 Controller or other Controller with RS-232/DF1 Full-Duplex Port) RS-232/DF1 Port Splitter 24V dc, 100 mA, Class 2 Power Supply Ethernet/IP Network 1761-NET-AIC Module DeviceNet Network Operator Interface...
  • Page 58 1747-C11 Processor to Isolated Link Coupler Replacement Cable – This 304.8 mm (12 in) cable is used to connect the SLC 500 processor to the Isolated Link Coupler (1747-AIC). Specialty Module to Isolated Link Coupler Cable - Use a 1747-C13 cable to connect a BASIC or KE module to an Isolated Link Coupler (1747-AIC). Also connects 1747-UIC RS-485 1747-C13 port to AIC or SLC RJ45 port.

  • Page 59: Selecting An Slc 500 Processor

    With SLC 500 Modular Hardware Style controllers, you select the processor, power programming requirements supply, and I/O modules to fit your application. Modular style chassis are available in 4, 7, 10, and 13-slot versions. See Selecting an SLC 500 Chassis on page 64 for details. memory modules adapter sockets...
  • Page 60 Controller Specifications SLC 500 Modular Controllers Specifications Specification SLC 5/01 SLC 5/02 SLC 5/03 SLC 5/04 SLC 5/05 ‡ Cat. No. 1747- L511 L514 L524 L531 L532 L533 L541 L542 L543 L551 L552 L553 Memory Size (Words)
  • Page 61 SLC 500 The following table shows the SLC 500 instruction set listed within their functional groups. Programming Instruction Set SLC Programming Instruction Set Functional Group Description Instruction(s) SLC 5/01 SLC 5/02 SLC 5/03 SLC 5/04 SLC 5/05...
  • Page 62 www.aotewell.com www.fa-market.com info@aotewell.com Memory Modules Controller These optional memory modules provide non-volatile memory in convenient modular Accessories form. The modules plug into a socket on the processor. Memory Module Specifications Cat. No. Description 1747-M1 1 K, EEPROM Memory Module for SLC 5/01 Processors 1747-M2 4 K, EEPROM Memory Module for SLC 5/01 and SLC 5/02 Processors 64 K, Flash EPROM Memory Module for SLC 5/03, SLC 5/04, and SLC 5/05 Series C (or...
  • Page 63 Upgrade Kits SLC 500 OS upgrade kits allow you to access the latest functional enhancements for your existing controller. SLC 500 Upgrade Kit Descriptions Cat. No. Description 1747-OS302 SLC 5/03 Upgrade Kit – includes 5 upgrade labels 1747-OS401 SLC 5/04 Upgrade Kit –...

  • Page 64: Selecting An Slc 500 Chassis

    Step 4 - Select: Selecting an SLC 500 Chassis chassis with sufficient slots (consider possible expansion) card slot fillers for open slots interconnect cables 13-Slot Chassis 4-Slot Chassis 7-Slot Chassis SLC modular chassis provide flexibility in system configuration. Four chassis sizes are available to suit your application needs.
  • Page 65 Important: In addition to dimensions, there are important spacing, heat, and grounding requirements which must be considered when mounting an SLC chassis. Refer to the SLC 500 Modular Chassis Installation Instructions, publication number 1746-IN016 for more information. 4-Slot Modular Chassis...
  • Page 66 www.aotewell.com www.fa-market.com info@aotewell.com 7-Slot Modular Chassis Front View Left Side View 5.5 Dia (0.217) 11 Dia (0.433) 175 (6.89) 1.0 (0.04) ( 3 ) ( 2 ) ( 1 ) (0.55) 5.5 Dia (0.217) (1.77) 145 (5.71) 320 (12.60) 340 (13.39) 366 (14.41) millimeters (inches) 10-Slot Modular Chassis...
  • Page 67 www.aotewell.com www.fa-market.com info@aotewell.com 13-Slot Modular Chassis Front View 5.5 Dia 5.5 Dia (0.217) 105 (4.13) 140 (5.51) 11 Dia (0.433) (0.217) (0.55) 5.5 Dia 140 (5.51) (0.217) 540 (21.26) 560 (22.05) 586 (23.07) 1.0 (0.04) millimeters (inches) Left Side View (1) Dimensions for 1746-P1 Power Supply (2) Dimensions for 1746-P2, -P3, -P5, -P6, and P7 Power Supplies (3) Dimensions for 1746-P4 Power Supply...

  • Page 68: Selecting Slc 500 Power Supplies

    Step 5 - Select: Selecting SLC 500 Power Supplies one power supply for each chassis (Consider power supply loading of the entire system and capacity for system expansion.) When configuring a modular system, you must have a power supply for each chassis.
  • Page 69 www.aotewell.com www.fa-market.com info@aotewell.com Power Supply Catalog Numbers and Specifications Cat. No. Line Voltage Current Capacity (Amps) at 5V Current Capacity (Amps) at 24V User Current Capacity Inrush Current, Max. 85…132/170…265V ac, 47…63 1746-P1 0.46 A 0.2 A @ 24V dc 20 A 85…132/170…265V ac, 47…63 1746-P2...
  • Page 70 www.aotewell.com www.fa-market.com info@aotewell.com Select a power supply for chassis 1 and chassis 2 in the control system below. For a Power Supply detailed list of device load currents, see the next section. Selection Example Chassis 1 Chassis 2 DH-485 Network Personal Computer 1747-UIC...
  • Page 71 www.aotewell.com www.fa-market.com info@aotewell.com Power Supply Worksheet Example Procedure 1. For each slot of the chassis that contains a module, list the slot number, catalog number of module, and its 5 V and 24 V maximum currents. Also include the power consumption of any peripheral devices that may be connected to the processor other than a DTAM, HHT, or PIC - the power consumption of these devices is accounted for in the power consumption of the processor.
  • Page 72 www.aotewell.com www.fa-market.com info@aotewell.com Power Supply Loading and Heat Dissipation Use the values in the following tables to calculate the power supply loading for each chassis in your SLC modular application. Processors Backplane Current (mA) at Cat. No. Backplane Current (mA) at 5V Watts per Point Thermal Dissipation, Min.
  • Page 73 www.aotewell.com www.fa-market.com info@aotewell.com Digital Output Modules Backplane Current (mA) at Cat. No. Backplane Current (mA) at 5V Watts per Point Thermal Dissipation, Min. Thermal Dissipation, Max. 1746-OA8 185 mA 0 mA 1.00 W 0.925 W 9.00 W 1746-OA16 370 mA 0 mA 0.462 W 1.85 W...
  • Page 74 www.aotewell.com www.fa-market.com info@aotewell.com Analog Input Modules Backplane Current (mA) at Cat. No. Backplane Current (mA) at 5V Watts per Point Thermal Dissipation, Min. Thermal Dissipation, Max. 1746-NI4 25 mA 85 mA 2.17 W 2.20 W 1746-NI8 200 mA 100 mA 3.4 W 3.4 W 1746-NI16I...
  • Page 75 www.aotewell.com www.fa-market.com info@aotewell.com Specialty Modules Backplane Current (mA) at Cat. No. Backplane Current (mA) at 5V Watts per Point Thermal Dissipation, Min. Thermal Dissipation, Max. 1746-BAS-T 150 mA 40 mA✶ 3.75 W 3.80 W 1746-BLM 110 mA 85 mA 5.00 W 5.00 W 1746-BTM 110 mA...
  • Page 76 www.aotewell.com www.fa-market.com info@aotewell.com Use the graphs below for determining the power supply dissipation in step 2 of the Power Supply Heat Example Worksheet for Calculating Heat Dissipation. Dissipation Graphs 1746-P1 Power Supply Change in Power 1746-P2 Power Supply Change in Power Dissipation due to Output Loading Dissipation due to Output Loading Power Supply Loading (Watts)
  • Page 77 www.aotewell.com www.fa-market.com info@aotewell.com Heat Dissipation Worksheet Example Procedure for calculating the total heat dissipation for the controller 1. Write the total watts dissipated by the processor, I/O, specialty modules, and any peripheral devices attached to the processor. Chassis Number 1 Chassis Number 2 Chassis Number 3 Slot...

  • Page 78: Selecting Programming Software

    Step 6 - Select: the appropriate RSLogix 500 package for your application Familiar ladder diagram programming makes the SLC 500 family easy to program using a personal computer and RSLogix 500 Programming Software. other software packages, such as RSNetworx for ControlNet or...
  • Page 79 www.aotewell.com www.fa-market.com info@aotewell.com Point-and-Click I/O Configuration The easy-to-use I/O Configurator lets you click or drag-and-drop a module from an all-inclusive list to assign it to a slot in your configuration. Advanced configuration, required for specialty and analog modules, is easily accessible. Convenient forms speed entry of configuration data.
  • Page 80 All of the packages described in the table below are English versions on CD-ROM. They can be used with Windows 2000, Windows XP, or Windows Vista. RSLogix 500 Software Description Cat. No. RSLogix 500 Programming for the SLC 500 and MicroLogix Families 9324-RL0300ENE RSLogix 500 Starter 9324-RL0100ENE RSLogix 500 Professional...
  • Page 81 www.aotewell.com www.fa-market.com info@aotewell.com Important: You must provide a means of communication between the PC and the processor. The table below indicates with an " ", which cables are compatible with the SLC 5/01 through 5/05 processors. Processor SLC 5/01 SLC 5/02 SLC 5/03 SLC 5/04 SLC 5/05...
  • Page 82 www.aotewell.com www.fa-market.com info@aotewell.com RSLinx software is a complete communication server providing plant-floor device RSLinx Software connectivity for a wide variety of software applications. In addition, several open interfaces are provided for third-party HMI, data collection and analysis packages, and custom client-application software. RSLinx software can be used with these operating systems: RSLinx Software Requirements...
  • Page 83 www.aotewell.com www.fa-market.com info@aotewell.com RSNetWorx RSNetWorx software is the configuration tool for your control network. With RSNetWorx software you can create a graphical representation of your network Software configuration and configure the parameters that define your network. Use RSNetWorx software for: ControlNet software to schedule network components.
  • Page 84 RSLogix Emulate 500 software is a Microsoft Windows software package that emulates 500 Software one or more SLC 500 processors. You determine which ladder programs you want to run and RSLogix Emulate scans the ladder logic like an actual processor.

  • Page 85: Summary

    Summary Sample System Use a spreadsheet to record the amount and type of devices your SLC 500 system requires. For example, this sample system: Spreadsheet could result in this spreadsheet: Device I/O Points Needed Cat. No. I/O Points per Module...
  • Page 86 System Selection Steps for Specifying an SLC 500 System Remember to consider module current and voltage considerations, electronic Checklist Select I/O Modules protection, input/output isolation IFMs or pre-wired cables network communication requirements Select Communication Modules/Devices appropriate communication cables software requirements (i.e.
  • Page 87 www.aotewell.com www.fa-market.com info@aotewell.com Blank Power Supply Selection Worksheet Procedure 1. For each slot of the chassis that contains a module, list the slot number, catalog number of module, and its 5 V and 24 V maximum currents. Also include the power consumption of any peripheral devices that may be connected to the processor other than a DTAM, HHT, or PIC - the power consumption of these devices is accounted for in the power consumption of the processor.
  • Page 88 www.aotewell.com www.fa-market.com info@aotewell.com Blank Heat Dissipation Worksheet Procedure for calculating the total heat dissipation for the controller 1. Write the total watts dissipated by the processor, I/O, and specialty modules, and any peripheral devices attached to the processor. Chassis Number 1 Chassis Number 2 Chassis Number 3 Slot...
