7-24 Options

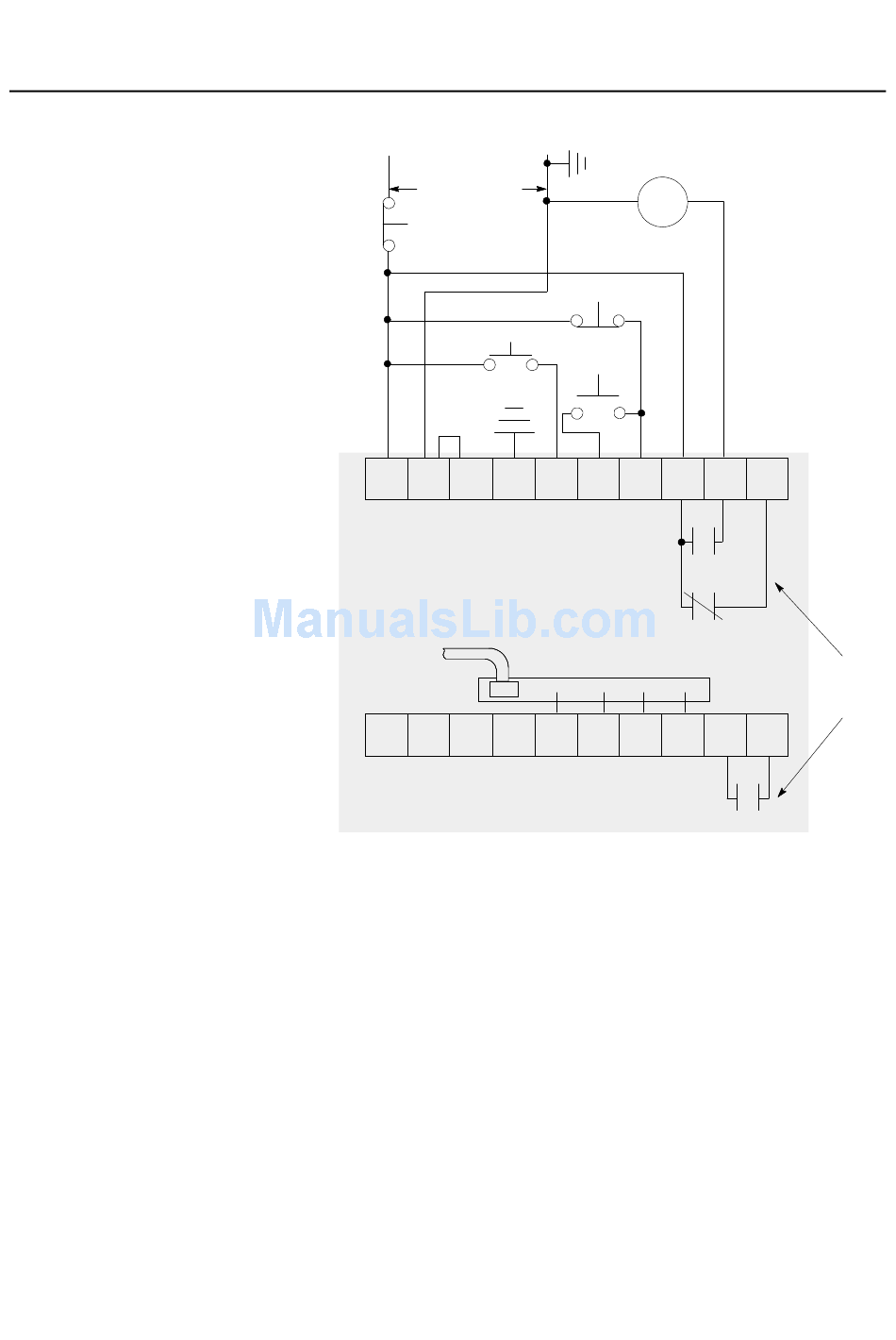

Figure 7.20 Typical Wiring Diagram for the Slow Speed with Braking Option
with a Bypass Contactor
Control Power ➁
Stop ➀
Slow Speed ➀
11 12 13 14
SMC Dialog Plus
Control Terminals
To
Bulletin 825
Converter
Module
21 22 23 24
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
Note: Refer to Chapter 3 for typical power circuits.
BC ➀
Brake ➀
Start ➀
15 16 17 18
Auxiliary contacts set
for Up-to-speed
Fanning Strip ➀
25 26 27 28
19 20
Internal
Auxiliary
Contacts
29 30
