Control Wiring for
SCANport Control
Soft Stop, Pump Control, and
SMB Smart Motor Braking Options
Refer to Figure 3.14 on page 3-10 for the applicable wiring diagram
to achieve start-stop control via the SCANport.
Figure 7.1 through Figure 7.6 show the different wiring for the Soft
Stop, Pump Control, and SMB Smart Motor Braking options.

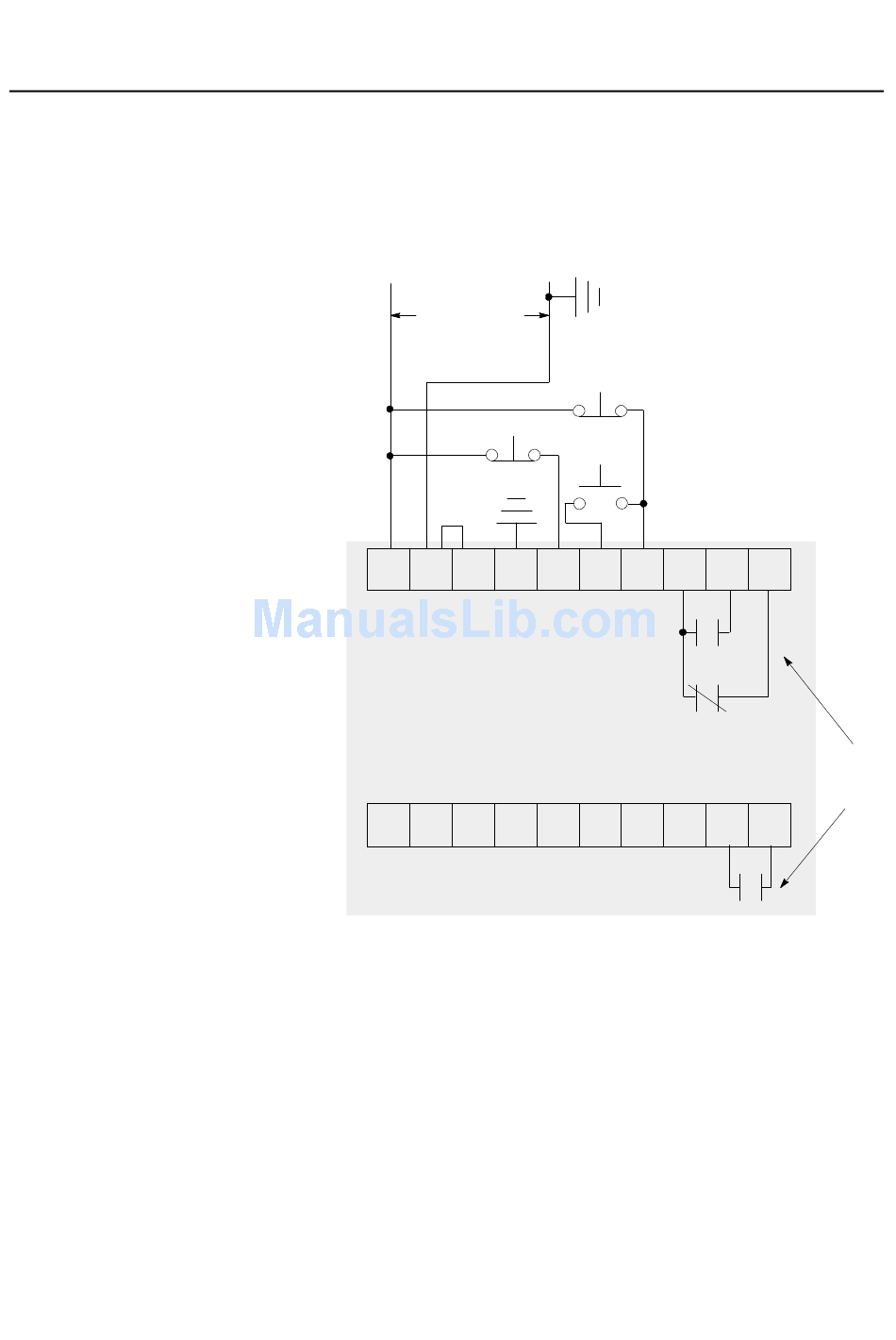

Figure 7.1 Typical Wiring Diagram
Control Power ➂
Option Stop ➀ ➁
11 12 13 14
SMC Dialog Plus
Control Terminals
21 22 23 24
①
Customer supplied.
②
Soft Stop, Pump Stop, or Brake.
③
Refer to the controller nameplate to verify the rating of the control power input voltage.
Note: Refer to Chapter 3 for typical power circuits.
Options
Stop ➀
Start ➀
15 16 17 18
25 26 27 28
7-5
19 20
Internal
Auxiliary
Contacts
29 30
