Serial Communications

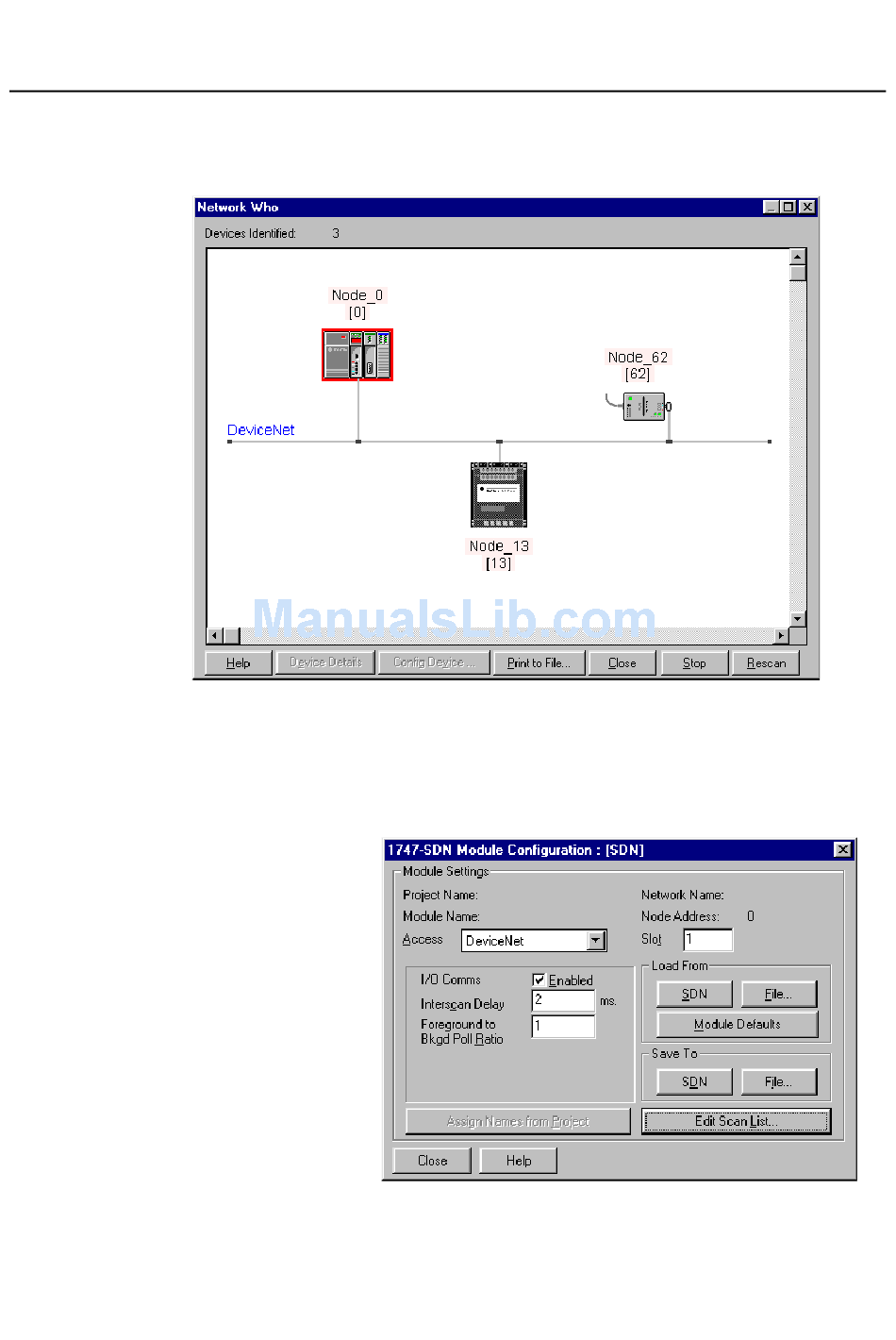

After you have your network "project" configured in the DeviceNet
Manager software, perform a Network Who; the following screen will
appear:
Notice that the SMC Dialog Plus controller is identified as node 13,
which was configured by setting the DIP switches on the 1203-GK5
communication module.
Double-click the Master (node 0) on the DeviceNet network; the
following screen will appear:
Select the Edit Scan List option by clicking on the button; the
following screen will appear:
