Slow Speed with Braking Option
Figure 7.17 through Figure 7.21 show the different wiring for the
Slow Speed with Braking option.

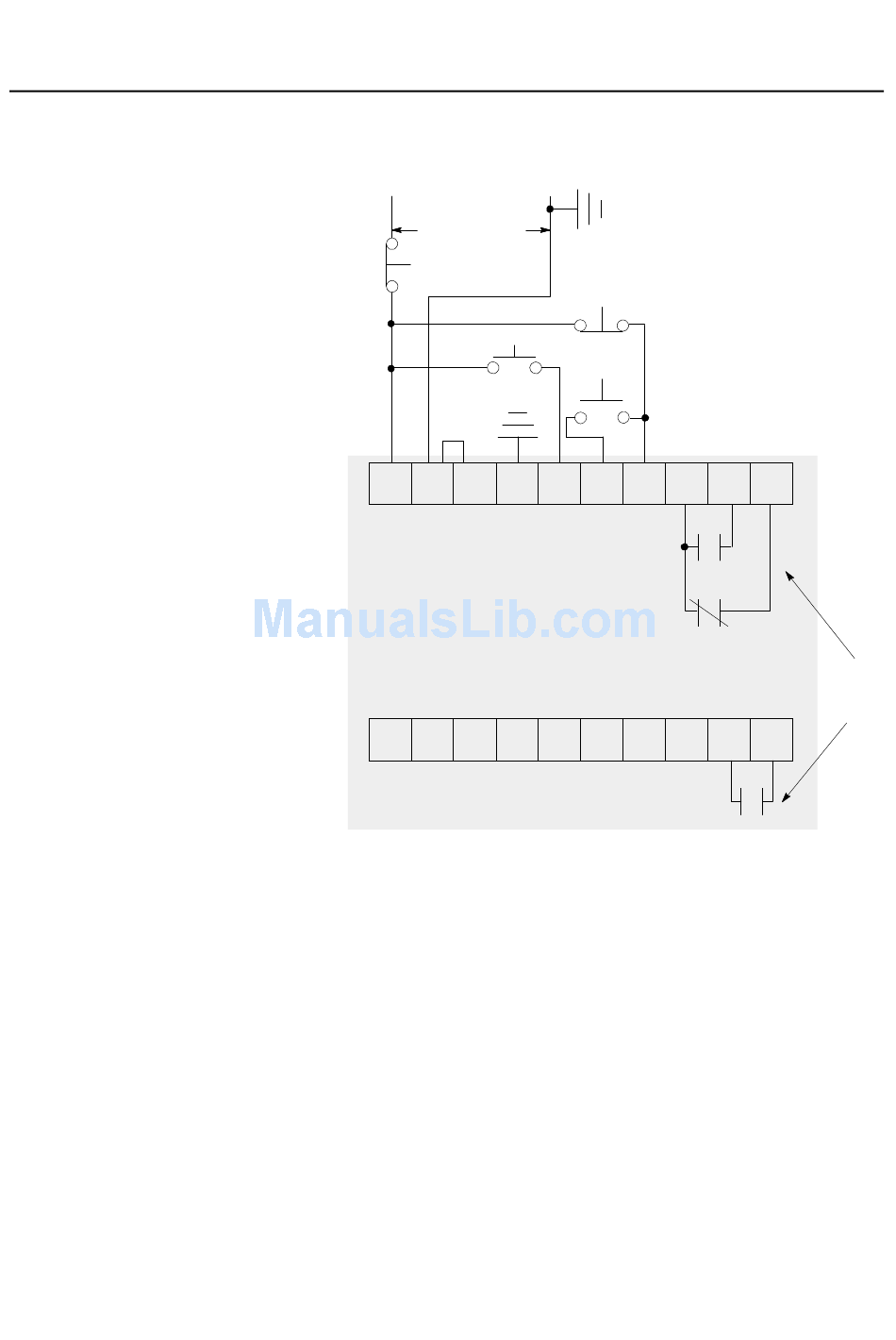

Figure 7.17 Typical Wiring Diagram for the Slow Speed with Braking Option
Control Power ➁
Stop ➀
Slow Speed ➀
11
12
13
14
SMC Dialog Plus
Control Terminals
21
22
23
24
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
Note: Refer to Chapter 3 for typical power circuits.
Options
Brake ➀
Start ➀
15
16
17
18
25
26
27
28
7-21
19
20
Internal
Auxiliary
Contacts
29
30
