1-8
Product Overview
Protection and Diagnostics
(cont.)

Stall Protection and Jam Detection

The SMC Dialog Plus controller provides both stall protection and
jam detection for enhanced motor and system protection.
Stall protection is user-adjustable from 0.0 to 10.0 seconds (in
addition to the ramp time programmed).
Jam detection allows the user to determine the jam level (up to
999% of the motor's FLC rating) and the delay time (up to 10.0
seconds) for application flexibility.

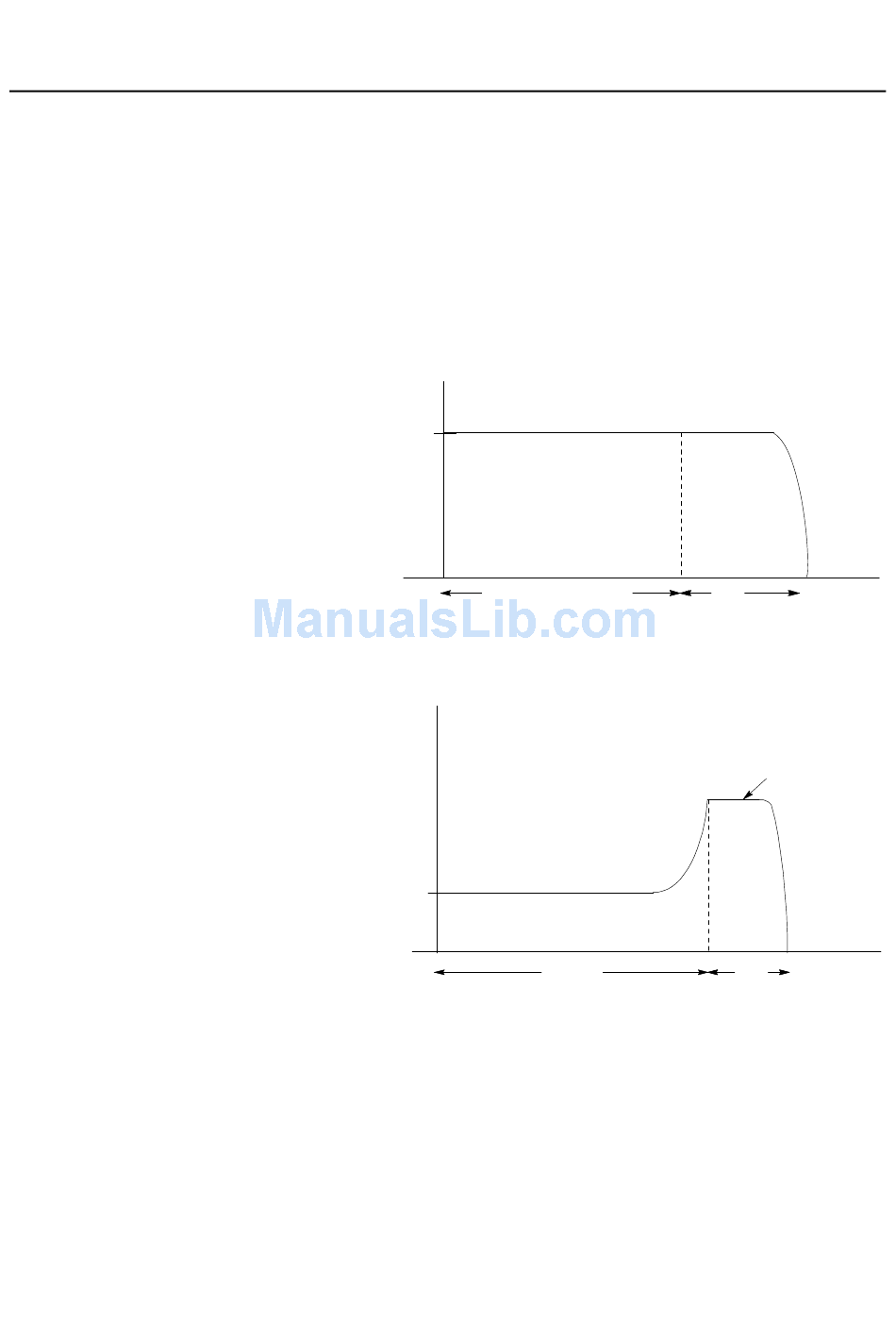

Figure 1.8 Stall Protection
600%
Percent
Full
Load
Current
Programmed Start Time
Figure 1.9 Jam Detection
Percent
Full
Load
Current
100%
Jam detection is disabled during slow speed and braking operation.
Time (seconds)
User Programmed Trip Level
Running
Time (seconds)
Stall
Jam
