Connecting the Human Interface Module to the Controller
Figure 2.7 shows the connection of the SMC Dialog Plus controller to
a human interface module. See Figure 3.14 on page 3-10 for the
control wiring diagram that enables start-stop control from a human
interface module.

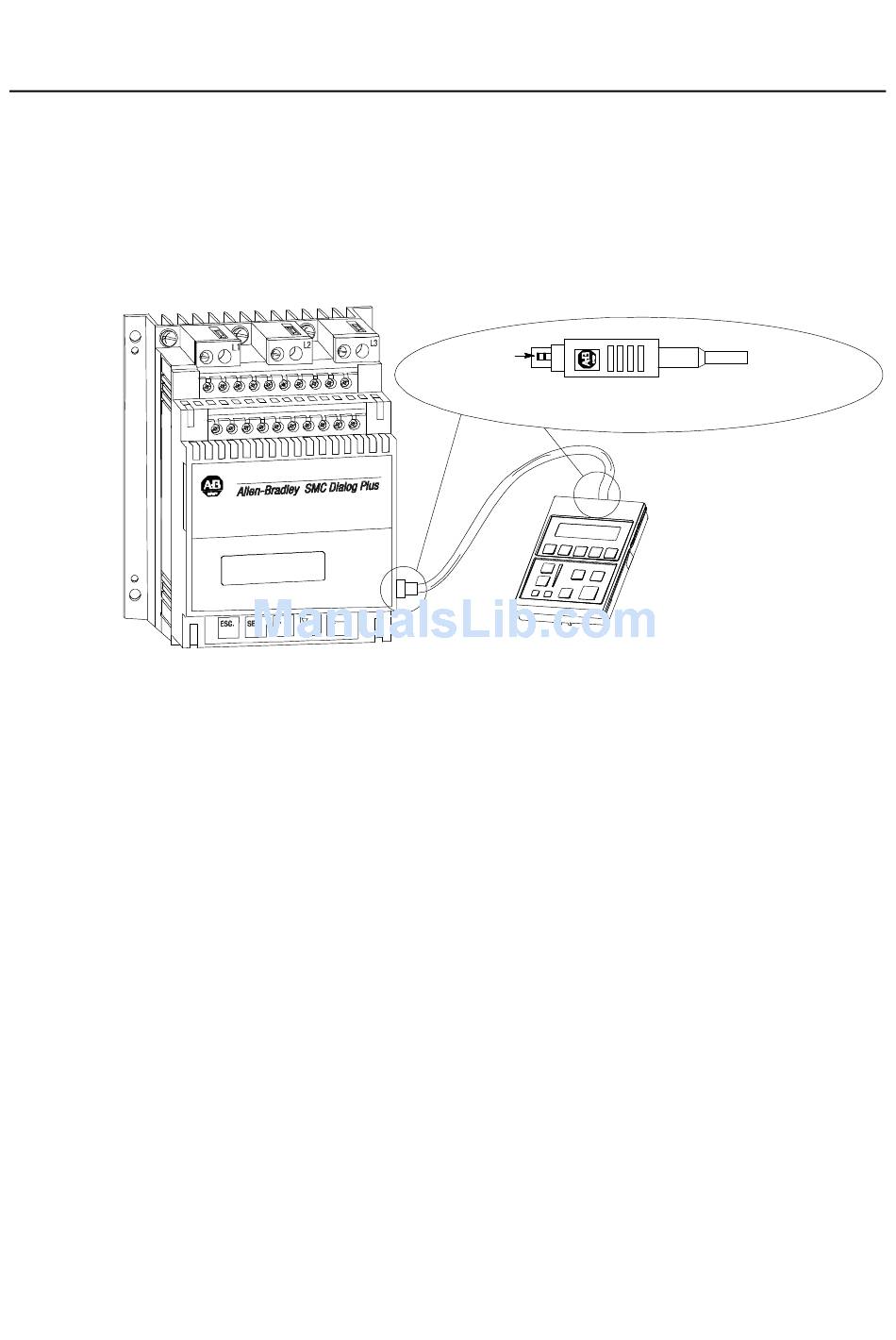

Figure 2.7 SMC Dialog Plus Controller with Human Interface Module
SMC Dialog Plus Controller
Bulletin 1202
Latching
5
3
1
Mechanism
Cable
Pull back moving part (connector body) to disconnect
20
19
17
18
14
15
16
13
11
12
cable from the SCANport connection.
30
29
26
27
28
25
23
24
21
22
Human Interface Module
Control Enable
To enable motor control from a connected human interface module,
follow the procedure below with the connected human interface
module's programming keys.
Note: Series A and Series B human interface modules require
different procedures. Be sure to use the correct table.
