Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
Endress+Hauser
–
–

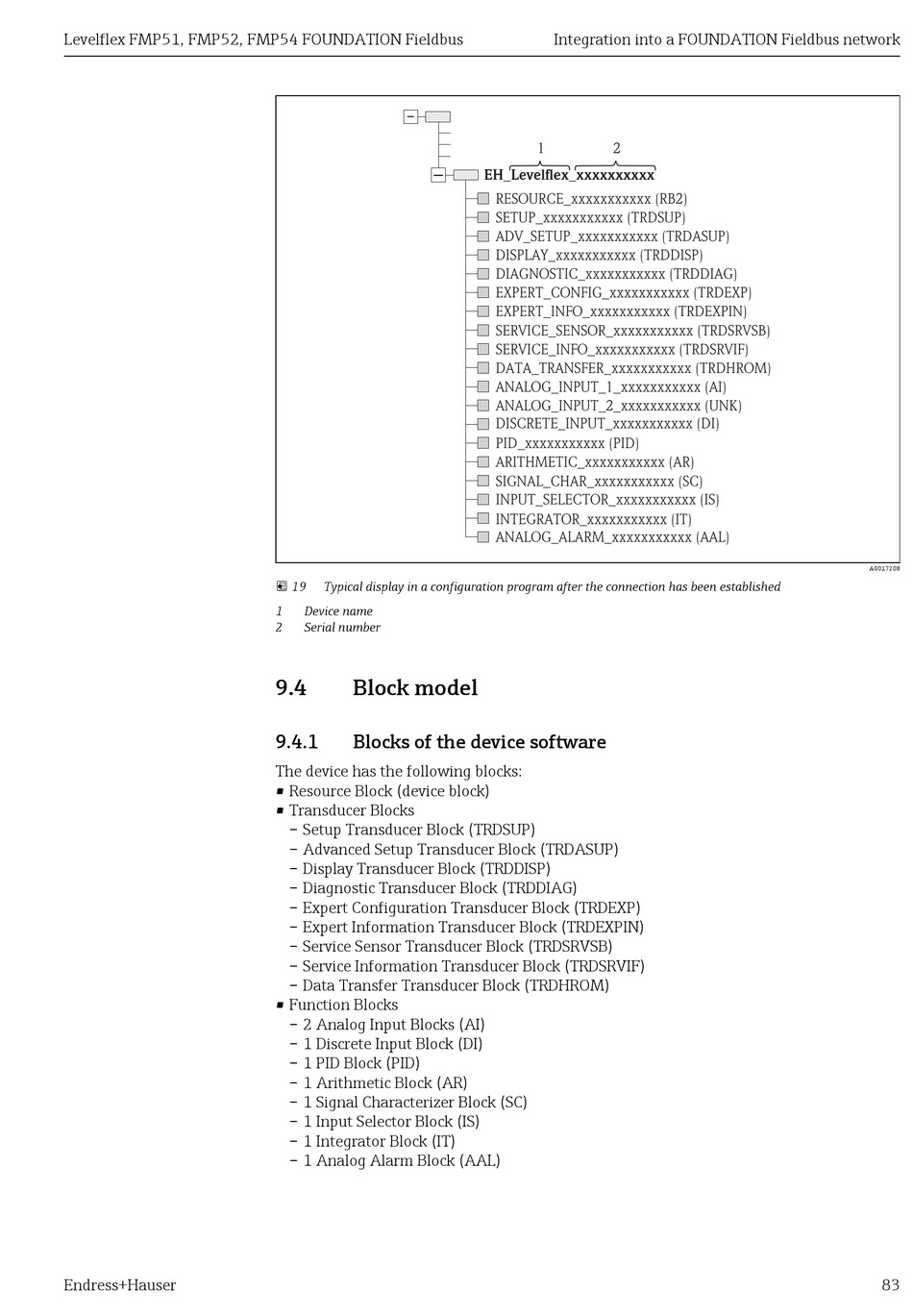

 19 Typical display in a configuration program after the connection has been established
1 Device name
2 Serial number
9.4

Block model

9.4.1

Blocks of the device software

The device has the following blocks:
• Resource Block (device block)
• Transducer Blocks
– Setup Transducer Block (TRDSUP)
– Advanced Setup Transducer Block (TRDASUP)
– Display Transducer Block (TRDDISP)
– Diagnostic Transducer Block (TRDDIAG)
– Expert Configuration Transducer Block (TRDEXP)
– Expert Information Transducer Block (TRDEXPIN)
– Service Sensor Transducer Block (TRDSRVSB)
– Service Information Transducer Block (TRDSRVIF)
– Data Transfer Transducer Block (TRDHROM)
• Function Blocks
– 2 Analog Input Blocks (AI)
– 1 Discrete Input Block (DI)
– 1 PID Block (PID)
– 1 Arithmetic Block (AR)
– 1 Signal Characterizer Block (SC)
– 1 Input Selector Block (IS)
– 1 Integrator Block (IT)
– 1 Analog Alarm Block (AAL)
Integration into a FOUNDATION Fieldbus network
1 2
EH_Levelflex_xxxxxxxxxx
RESOURCE_xxxxxxxxxxx (RB2)
SETUP_ xxxxxxxxxxx (TRDSUP)
ADV_SETUP_ xxxxxxxxxxx
DISPLAY_ xxxxxxxxxxx (TRDDISP)
DIAGNOSTIC_ xxxxxxxxxxx
EXPERT_CONFIG_ xxxxxxxxxxx
EXPERT_INFO_ xxxxxxxxxxx
SERVICE_SENSOR_ xxxxxxxxxxx
SERVICE_INFO_ xxxxxxxxxxx
DATA_TRANSFER_ xxxxxxxxxxx
ANALOG_INPUT_1_ xxxxxxxxxxx
ANALOG_INPUT_2_ xxxxxxxxxxx
DISCRETE_INPUT_ xxxxxxxxxxx
PID_ xxxxxxxxxxx (PID)
ARITHMETIC_ xxxxxxxxxxx
SIGNAL_CHAR_ xxxxxxxxxxx
INPUT_SELECTOR_ xxxxxxxxxxx
INTEGRATOR_ xxxxxxxxxxx
ANALOG_ALARM_ xxxxxxxxxxx
(TRDASUP)
(TRDDIAG)
(TRDEXP)
(TRDEXPIN)
(TRDSRVSB)
(TRDSRVIF)
(TRDHROM)
(AI)
(UNK)
(DI)
(AR)
(SC)
(IS)
(IT)
(AAL)
A0017208
