Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
Endress+Hauser

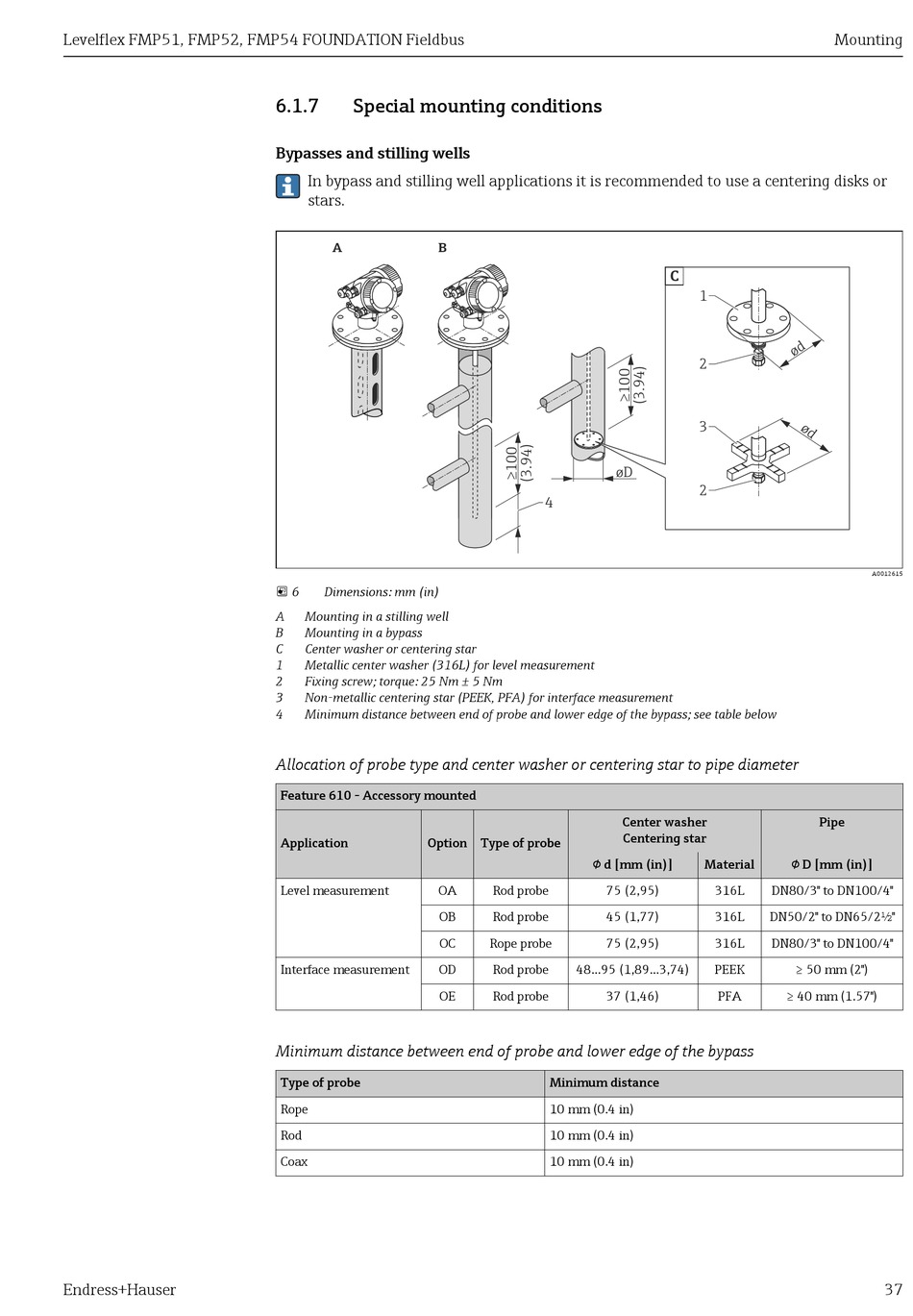

6.1.7

Special mounting conditions

Bypasses and stilling wells
In bypass and stilling well applications it is recommended to use a centering disks or
stars.
A
B
 6
Dimensions: mm (in)
A
Mounting in a stilling well
B
Mounting in a bypass
C
Center washer or centering star
1
Metallic center washer (316L) for level measurement
2
Fixing screw; torque: 25 Nm ± 5 Nm
3
Non-metallic centering star (PEEK, PFA) for interface measurement
4
Minimum distance between end of probe and lower edge of the bypass; see table below
Allocation of probe type and center washer or centering star to pipe diameter
Feature 610 - Accessory mounted
Application
Option Type of probe
Level measurement
OA
OB
OC
Interface measurement
OD
OE
Minimum distance between end of probe and lower edge of the bypass
Type of probe
Rope
Rod
Coax
øD
4
Center washer
Centering star
 d [mm (in)]
Rod probe
75 (2,95)
Rod probe
45 (1,77)
Rope probe
75 (2,95)
Rod probe
48...95 (1,89...3,74)
Rod probe
37 (1,46)
Minimum distance
10 mm (0.4 in)
10 mm (0.4 in)
10 mm (0.4 in)
Mounting
C
1
2
3
2
Pipe
Material
 D [mm (in)]
316L
DN80/3" to DN100/4"
316L
DN50/2" to DN65/2½"
316L
DN80/3" to DN100/4"
PEEK
≥ 50 mm (2")
PFA
≥ 40 mm (1.57")
A0012615
37
