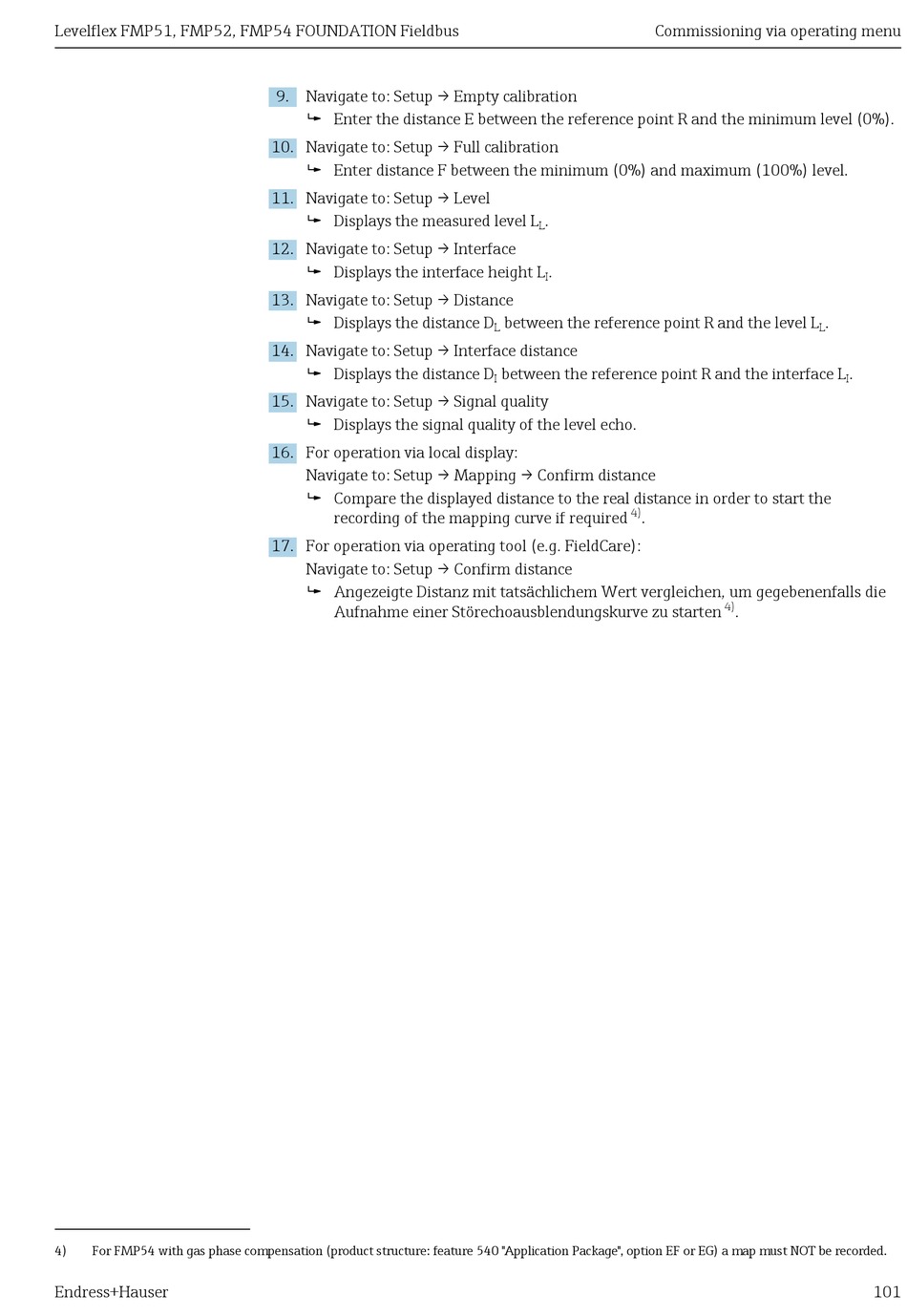

Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
4) For FMP54 with gas phase compensation (product structure: feature 540 "Application Package", option EF or EG) a map must NOT be recorded.
Endress+Hauser
9. Navigate to: Setup → Empty calibration
 Enter the distance E between the reference point R and the minimum level (0%).
10. Navigate to: Setup → Full calibration
 Enter distance F between the minimum (0%) and maximum (100%) level.
11. Navigate to: Setup → Level
 Displays the measured level L
12. Navigate to: Setup → Interface
 Displays the interface height L
13. Navigate to: Setup → Distance
 Displays the distance D
14. Navigate to: Setup → Interface distance
 Displays the distance D
15. Navigate to: Setup → Signal quality
 Displays the signal quality of the level echo.
16. For operation via local display:
Navigate to: Setup → Mapping → Confirm distance
 Compare the displayed distance to the real distance in order to start the
recording of the mapping curve if required
17. For operation via operating tool (e.g. FieldCare):
Navigate to: Setup → Confirm distance
 Angezeigte Distanz mit tatsächlichem Wert vergleichen, um gegebenenfalls die
Aufnahme einer Störechoausblendungskurve zu starten
Commissioning via operating menu
.
L
.
I
between the reference point R and the level L
L
between the reference point R and the interface L
I
4)
.
.
L
.
I
4)
.
101
