Commissioning via operating menu
100
11.5

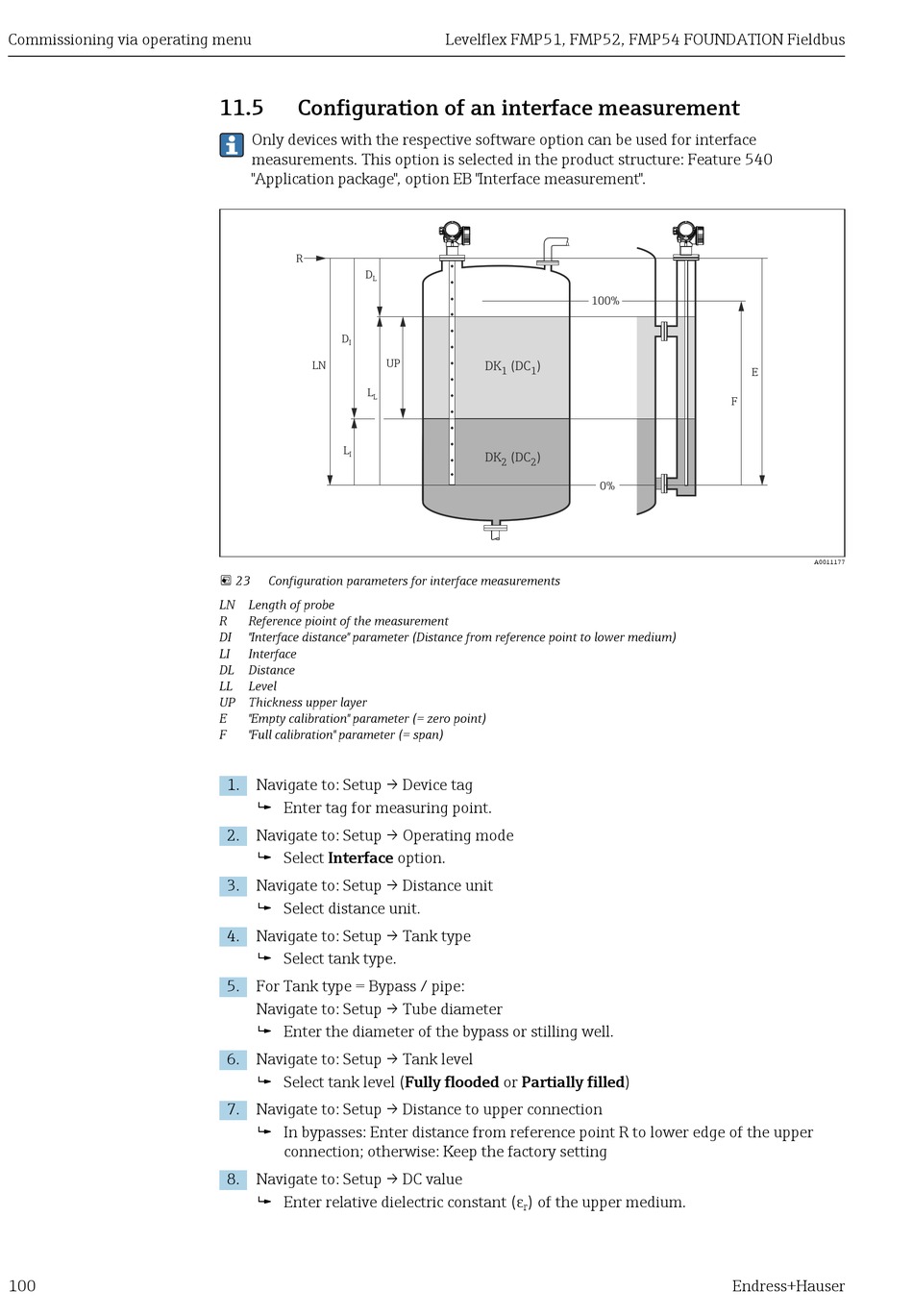

Configuration of an interface measurement

Only devices with the respective software option can be used for interface
measurements. This option is selected in the product structure: Feature 540
"Application package", option EB "Interface measurement".
R
D
L
D
I
UP
LN
L
L
L
I
 23 Configuration parameters for interface measurements
LN Length of probe
R Reference pioint of the measurement
DI "Interface distance" parameter (Distance from reference point to lower medium)
LI Interface
DL Distance
LL Level
UP Thickness upper layer
E "Empty calibration" parameter (= zero point)
F "Full calibration" parameter (= span)
1. Navigate to: Setup → Device tag
 Enter tag for measuring point.
2. Navigate to: Setup → Operating mode
 Select Interface option.
3. Navigate to: Setup → Distance unit
 Select distance unit.
4. Navigate to: Setup → Tank type
 Select tank type.
5. For Tank type = Bypass / pipe:
Navigate to: Setup → Tube diameter
 Enter the diameter of the bypass or stilling well.
6. Navigate to: Setup → Tank level
 Select tank level (Fully flooded or Partially filled)
7. Navigate to: Setup → Distance to upper connection
 In bypasses: Enter distance from reference point R to lower edge of the upper
connection; otherwise: Keep the factory setting
8. Navigate to: Setup → DC value
 Enter relative dielectric constant (ε
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
100%
DK ( DC )
1 1
DK (DC )
2 2
0%
) of the upper medium.
r
E
F
A0011177
