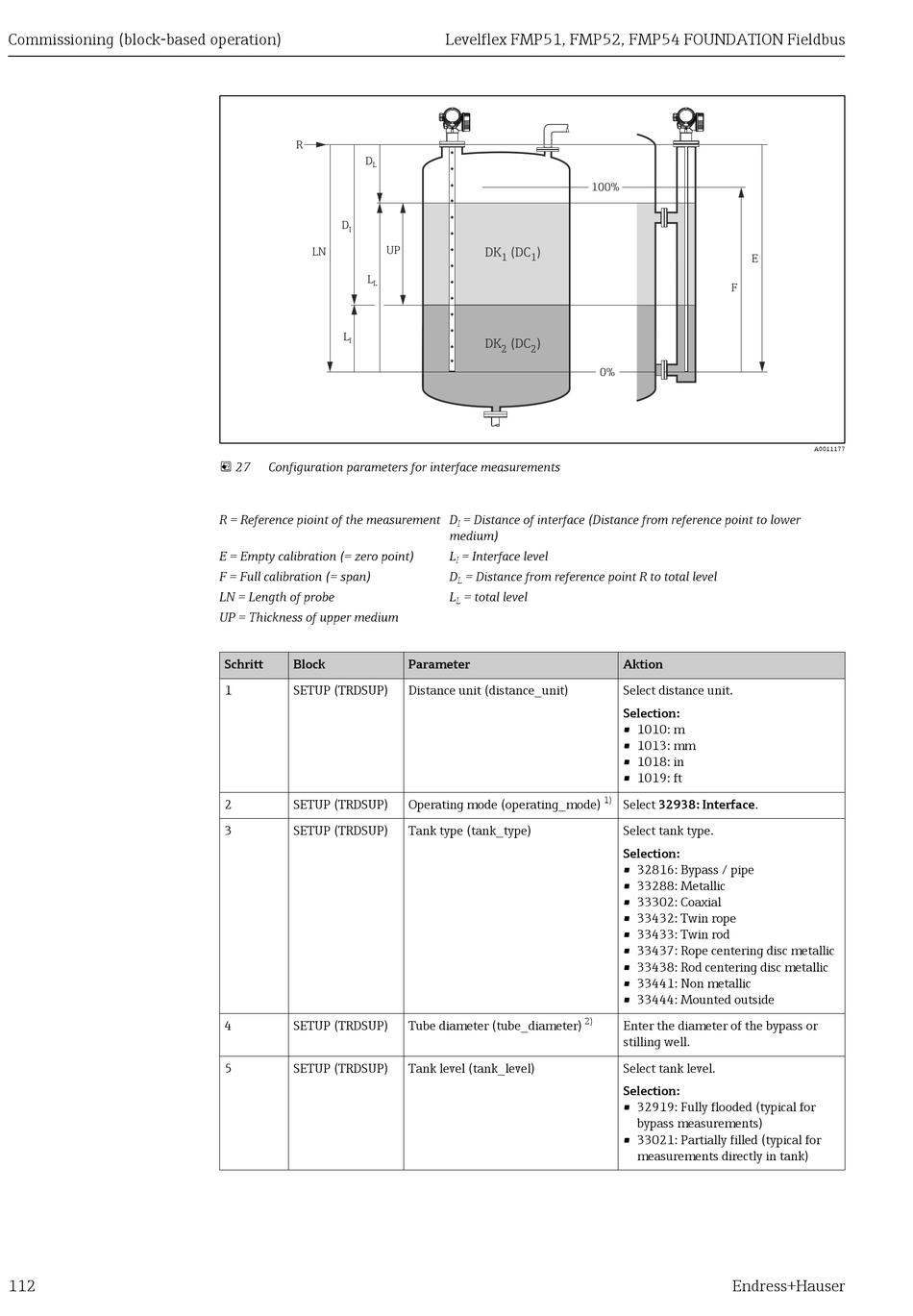

Commissioning (block-based operation)
112
R
D
L
D
I
UP
LN
L
L
L
I
 27
Configuration parameters for interface measurements
R = Reference pioint of the measurement D
E = Empty calibration (= zero point)
F = Full calibration (= span)
LN = Length of probe
UP = Thickness of upper medium
Schritt
Block
1
SETUP (TRDSUP)
2
SETUP (TRDSUP)
3
SETUP (TRDSUP)
4
SETUP (TRDSUP)
5
SETUP (TRDSUP)
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
DK
(
DC
)
1
1
DK (DC )
2
2
= Distance of interface (Distance from reference point to lower
I
medium)
L
= Interface level
I
D
= Distance from reference point R to total level
L
L
= total level
L
Parameter
Distance unit (distance_unit)
Operating mode (operating_mode)
Tank type (tank_type)
Tube diameter (tube_diameter)
Tank level (tank_level)
100%
E
F
0%
Aktion
Select distance unit.
Selection:
• 1010: m
• 1013: mm
• 1018: in
• 1019: ft
1)
Select 32938: Interface.
Select tank type.
Selection:
• 32816: Bypass / pipe
• 33288: Metallic
• 33302: Coaxial
• 33432: Twin rope
• 33433: Twin rod
• 33437: Rope centering disc metallic
• 33438: Rod centering disc metallic
• 33441: Non metallic
• 33444: Mounted outside
2)
Enter the diameter of the bypass or
stilling well.
Select tank level.
Selection:
• 32919: Fully flooded (typical for
bypass measurements)
• 33021: Partially filled (typical for
measurements directly in tank)
Endress+Hauser
A0011177
