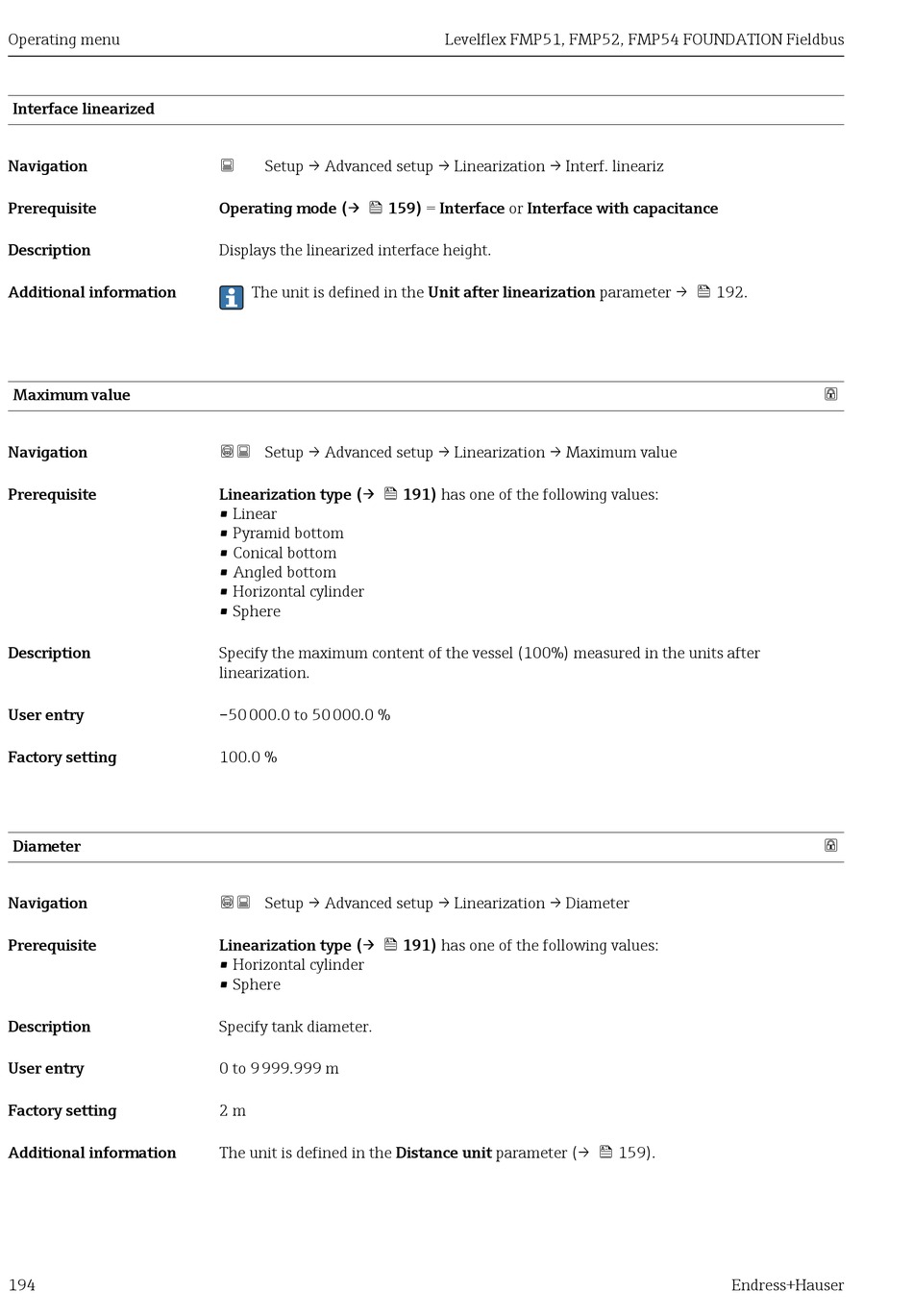

Operating menu
Interface linearized
Navigation
Prerequisite
Description
Additional information
Maximum value
Navigation
Prerequisite
Description
User entry
Factory setting
Diameter
Navigation
Prerequisite
Description
User entry
Factory setting
Additional information
194
 Setup → Advanced setup → Linearization → Interf. lineariz
Operating mode (→  159) = Interface or Interface with capacitance
Displays the linearized interface height.
The unit is defined in the Unit after linearization parameter →  192.
 Setup → Advanced setup → Linearization → Maximum value
Linearization type (→  191) has one of the following values:
• Linear
• Pyramid bottom
• Conical bottom
• Angled bottom
• Horizontal cylinder
• Sphere
Specify the maximum content of the vessel (100%) measured in the units after
linearization.
–50 000.0 to 50 000.0 %
100.0 %
 Setup → Advanced setup → Linearization → Diameter
Linearization type (→  191) has one of the following values:
• Horizontal cylinder
• Sphere
Specify tank diameter.
0 to 9 999.999 m
2 m
The unit is defined in the Distance unit parameter (→  159).
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus


Endress+Hauser
