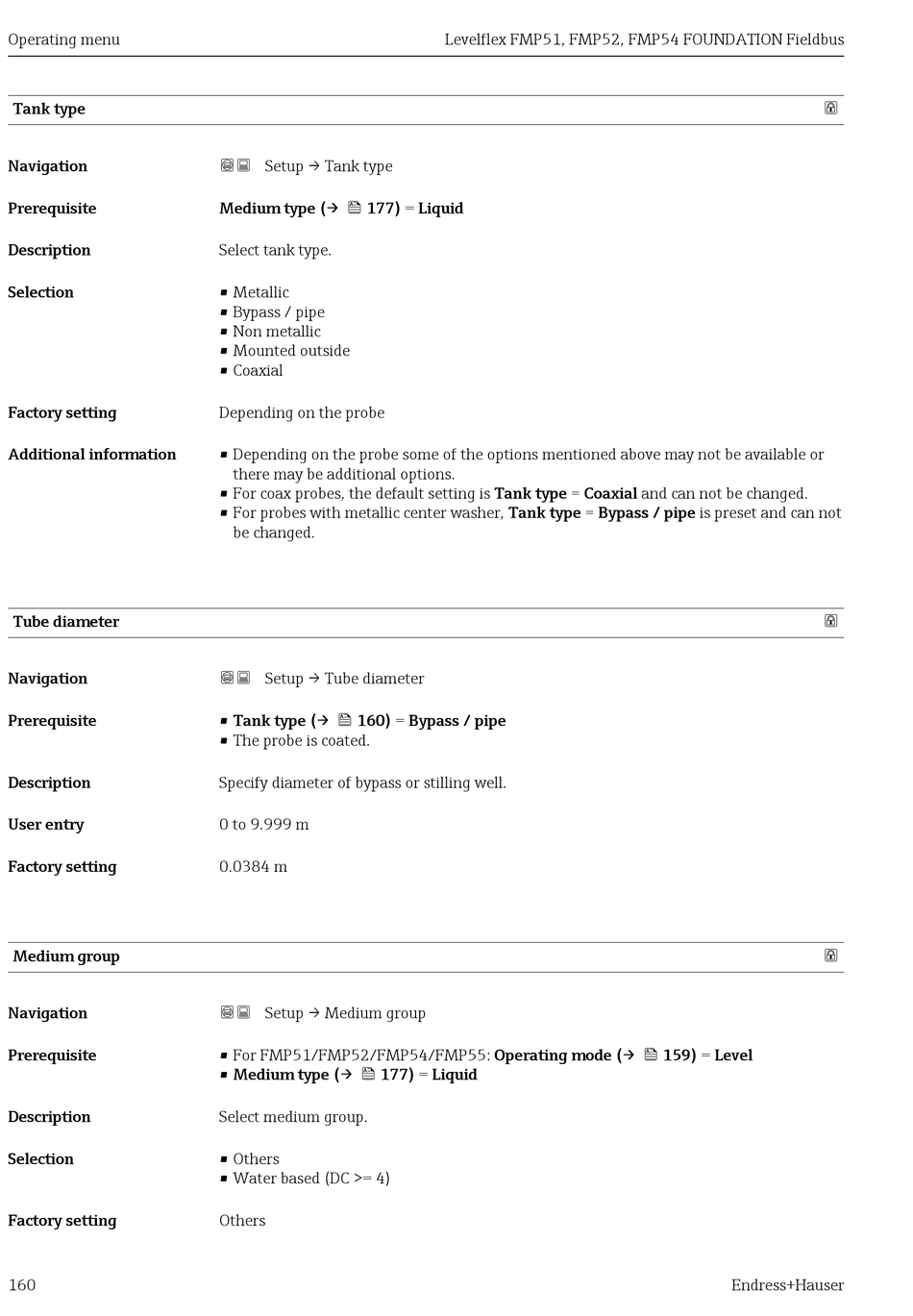

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 160

Operating menu
Tank type
Navigation
Prerequisite
Description
Selection
Factory setting
Additional information
Tube diameter
Navigation
Prerequisite
Description
User entry
Factory setting
Medium group
Navigation
Prerequisite
Description
Selection
Factory setting
160
 Setup → Tank type
Medium type (→  177) = Liquid
Select tank type.
• Metallic
• Bypass / pipe
• Non metallic
• Mounted outside
• Coaxial
Depending on the probe
• Depending on the probe some of the options mentioned above may not be available or
there may be additional options.
• For coax probes, the default setting is Tank type = Coaxial and can not be changed.
• For probes with metallic center washer, Tank type = Bypass / pipe is preset and can not
be changed.
 Setup → Tube diameter
• Tank type (→  160) = Bypass / pipe
• The probe is coated.
Specify diameter of bypass or stilling well.
0 to 9.999 m
0.0384 m
 Setup → Medium group
• For FMP51/FMP52/FMP54/FMP55: Operating mode (→  159) = Level
• Medium type (→  177) = Liquid
Select medium group.
• Others
• Water based (DC >= 4)
Others
