Accessories
138
16.1.3

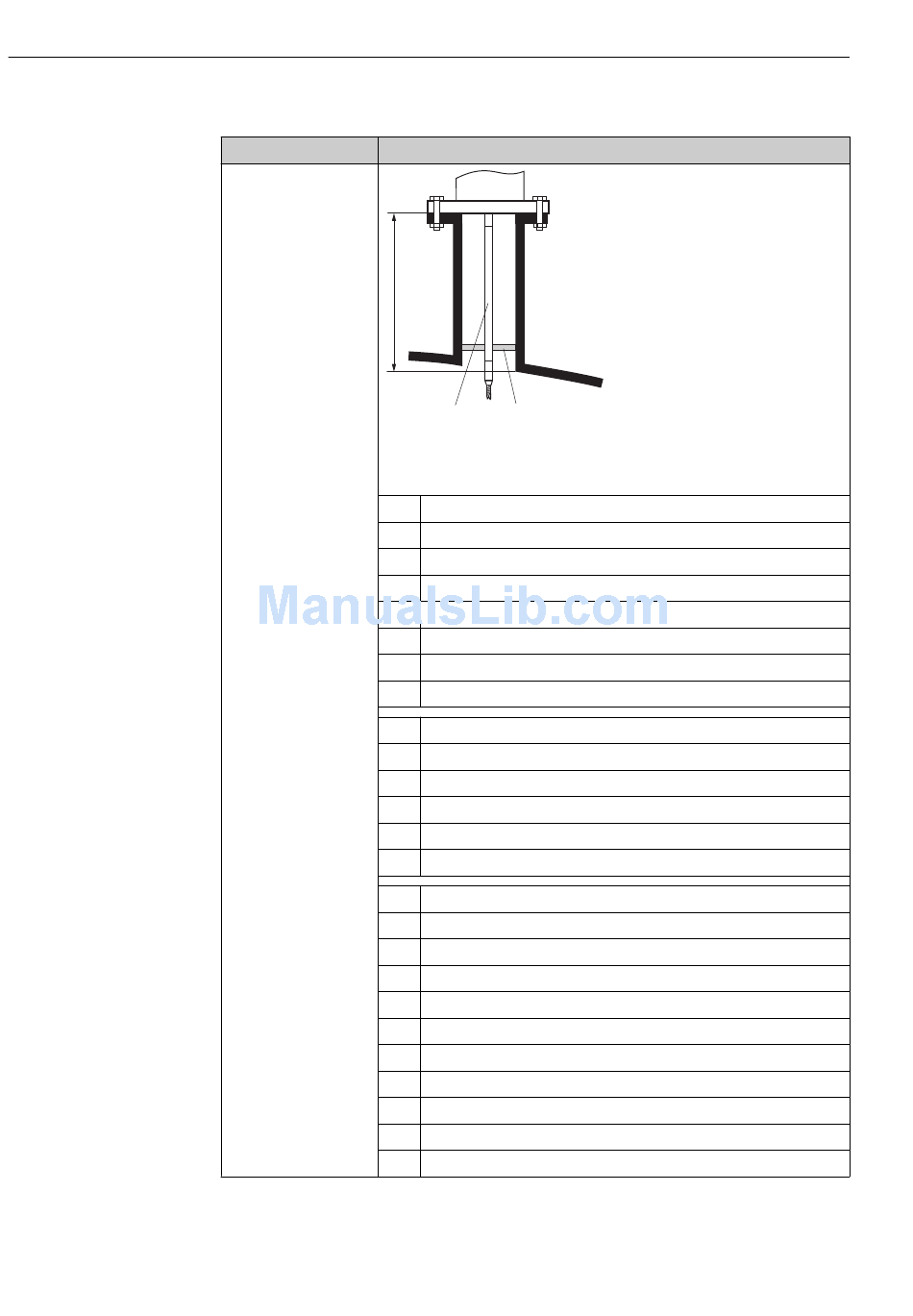

Extension rod / centering HMP40

Accessory Description
Extension rod / centering
HMP40
• can be used for:
FMP54
• Admissible
temperature
at lower nozzle edge:
1
– without center
washer:
no limitation
– with center washer:
-40 to 150 °C
(-40 to 302 °F)
• Additional information:
SD01002F
1
2
3
010
020
030
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
2 3
Nozzle height
Extension rod
Center washer
Approval:
A A: Non-hazardous area
M M: FM DIP Cl.II Div.1 Gr.E-G N.I., zone 21,22
P P: CSA DIP Cl.II Div.1 Gr.G + coal dust N.I.
S S: FM Cl.I, II, III Div.1 Gr.A-G N.I., zone 0,1,2,20,21,22
U U: CSA Cl.I, II, III Div.1 Gr.A-G N.I., zone 0,1,2
1 1: ATEX II 1G
2 2: ATEX II 1D
Extension rod; nozzle height:
1 115mm; 150-250mm / 6-10"
2 215mm; 250-350mm / 10-14"
3 315mm; 350-450mm / 14-18"
4 415mm; 450-550mm / 18-22"
9 Special version, TSP-no. to be spec.
Center washer:
A Not selected
B DN40 / 1-1/2", inside-d. = 40-45mm, PPS
C DN50 / 2", inside-d. = 50-57mm, PPS
D DN80 / 3", inside-d. = 80-85mm, PPS
E DN80 / 3", inside-d. = 76-78mm, PPS
G DN100 / 4", inside-d. = 100-110mm, PPS
H DN150 / 6", inside-d. = 152-164mm, PPS
J DN200 / 8", inside-d. = 210-215mm, PPS
K DN250 / 10", inside-d. = 253-269mm, PPS
Y Special version, TSP-no. to be spec.
A0013597
