Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
Block tag
Navigation
Description
Factory setting
Channel
Navigation
Description
Selection
Factory setting
* Visibility depends on order options or device settings
Endress+Hauser
17.3.2

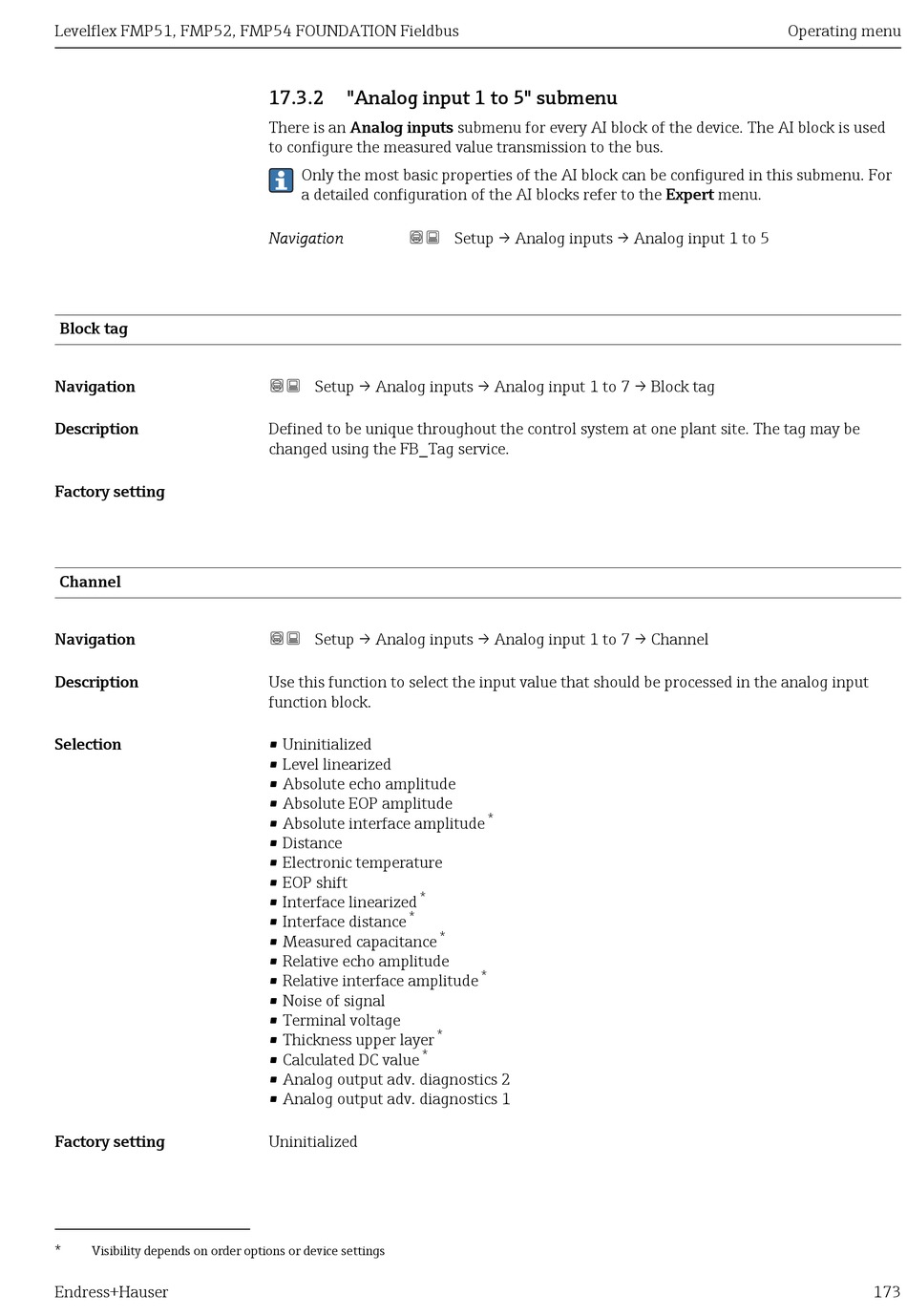

"Analog input 1 to 5" submenu

There is an Analog inputs submenu for every AI block of the device. The AI block is used
to configure the measured value transmission to the bus.
Only the most basic properties of the AI block can be configured in this submenu. For
a detailed configuration of the AI blocks refer to the Expert menu.
Navigation  Setup → Analog inputs → Analog input 1 to 5
 Setup → Analog inputs → Analog input 1 to 7 → Block tag
Defined to be unique throughout the control system at one plant site. The tag may be
changed using the FB_Tag service.
 Setup → Analog inputs → Analog input 1 to 7 → Channel
Use this function to select the input value that should be processed in the analog input
function block.
• Uninitialized
• Level linearized
• Absolute echo amplitude
• Absolute EOP amplitude
• Absolute interface amplitude
• Distance
• Electronic temperature
• EOP shift
*
• Interface linearized
*
• Interface distance
• Measured capacitance
• Relative echo amplitude
• Relative interface amplitude
• Noise of signal
• Terminal voltage
*
• Thickness upper layer
*
• Calculated DC value
• Analog output adv. diagnostics 2
• Analog output adv. diagnostics 1
Uninitialized
*
*
*
Operating menu
173
