Operating menu

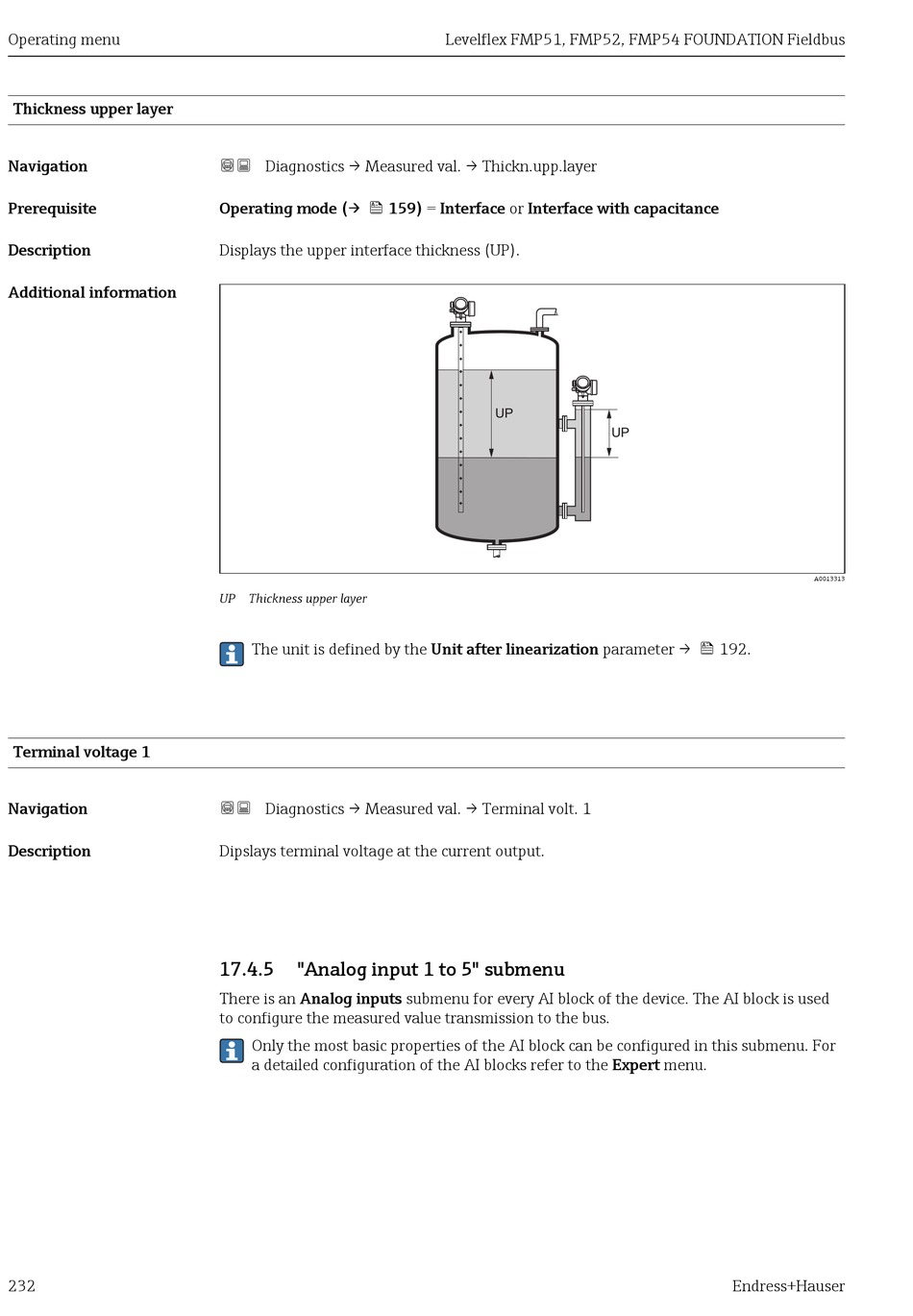

Thickness upper layer
Navigation
Prerequisite
Description
Additional information
Terminal voltage 1
Navigation
Description
232
 Diagnostics → Measured val. → Thickn.upp.layer
Operating mode (→  159) = Interface or Interface with capacitance
Displays the upper interface thickness (UP).
UP Thickness upper layer
The unit is defined by the Unit after linearization parameter →  192.
 Diagnostics → Measured val. → Terminal volt. 1
Dipslays terminal voltage at the current output.
17.4.5

"Analog input 1 to 5" submenu

There is an Analog inputs submenu for every AI block of the device. The AI block is used
to configure the measured value transmission to the bus.
Only the most basic properties of the AI block can be configured in this submenu. For
a detailed configuration of the AI blocks refer to the Expert menu.
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
UP
UP
A0013313
