Commissioning (block-based operation)
110
12.6

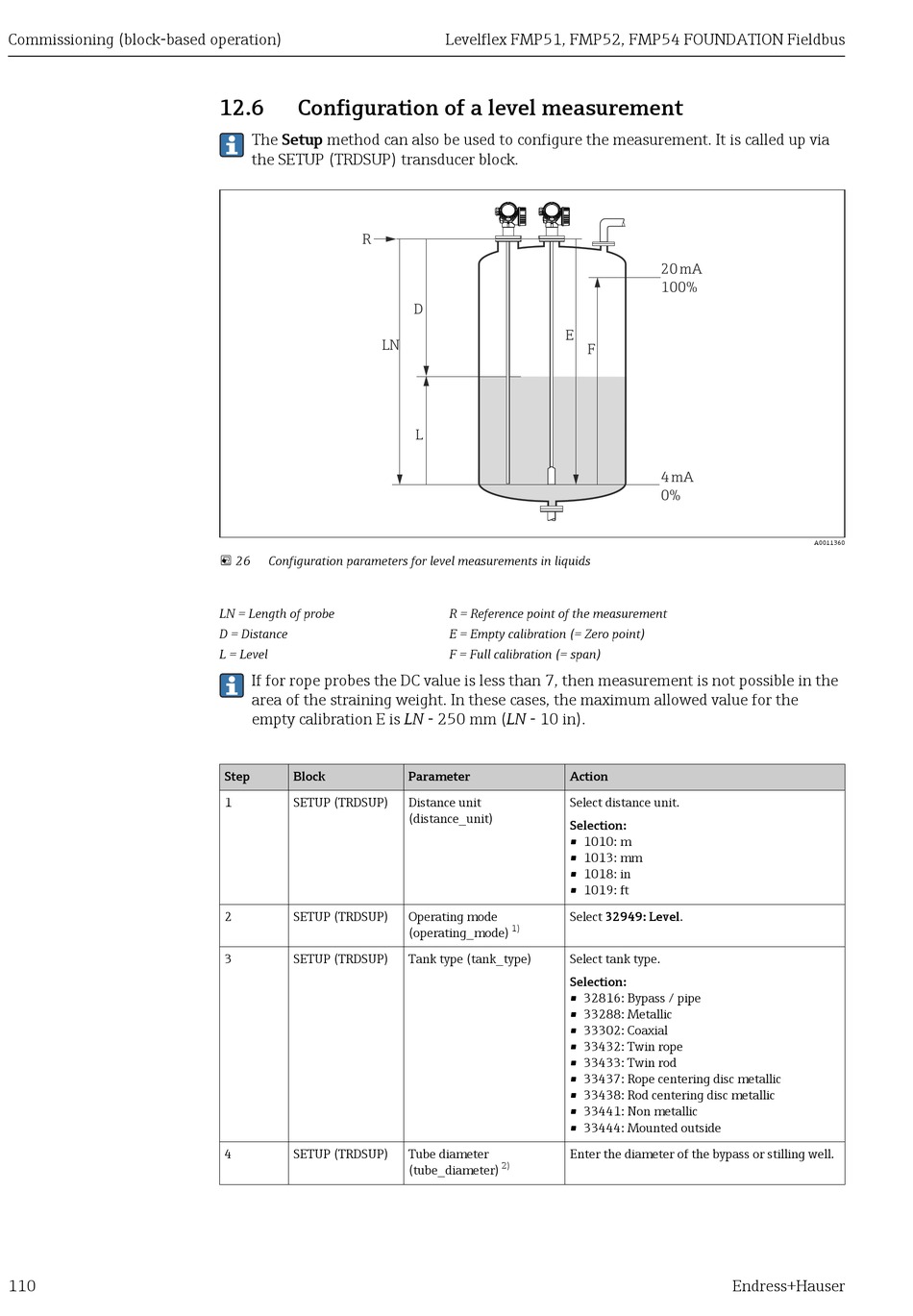

Configuration of a level measurement

The Setup method can also be used to configure the measurement. It is called up via
the SETUP (TRDSUP) transducer block.
R
LN
 26 Configuration parameters for level measurements in liquids
LN = Length of probe
D = Distance
L = Level
If for rope probes the DC value is less than 7, then measurement is not possible in the
area of the straining weight. In these cases, the maximum allowed value for the
empty calibration E is LN - 250 mm (LN - 10 in).
Step Block
1 SETUP (TRDSUP)
2 SETUP (TRDSUP)
3 SETUP (TRDSUP)
4 SETUP (TRDSUP)
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
D
E
L
R = Reference point of the measurement
E = Empty calibration (= Zero point)
F = Full calibration (= span)
Parameter Action
Distance unit Select distance unit.
(distance_unit)
Selection:
• 1010: m
• 1013: mm
• 1018: in
• 1019: ft
Operating mode Select 32949: Level.
1)
(operating_mode)
Tank type (tank_type) Select tank type.
Selection:
• 32816: Bypass / pipe
• 33288: Metallic
• 33302: Coaxial
• 33432: Twin rope
• 33433: Twin rod
• 33437: Rope centering disc metallic
• 33438: Rod centering disc metallic
• 33441: Non metallic
• 33444: Mounted outside
Tube diameter Enter the diameter of the bypass or stilling well.
2)
(tube_diameter)
20 mA
100%
F
4 mA
0%
Endress+Hauser
A0011360
