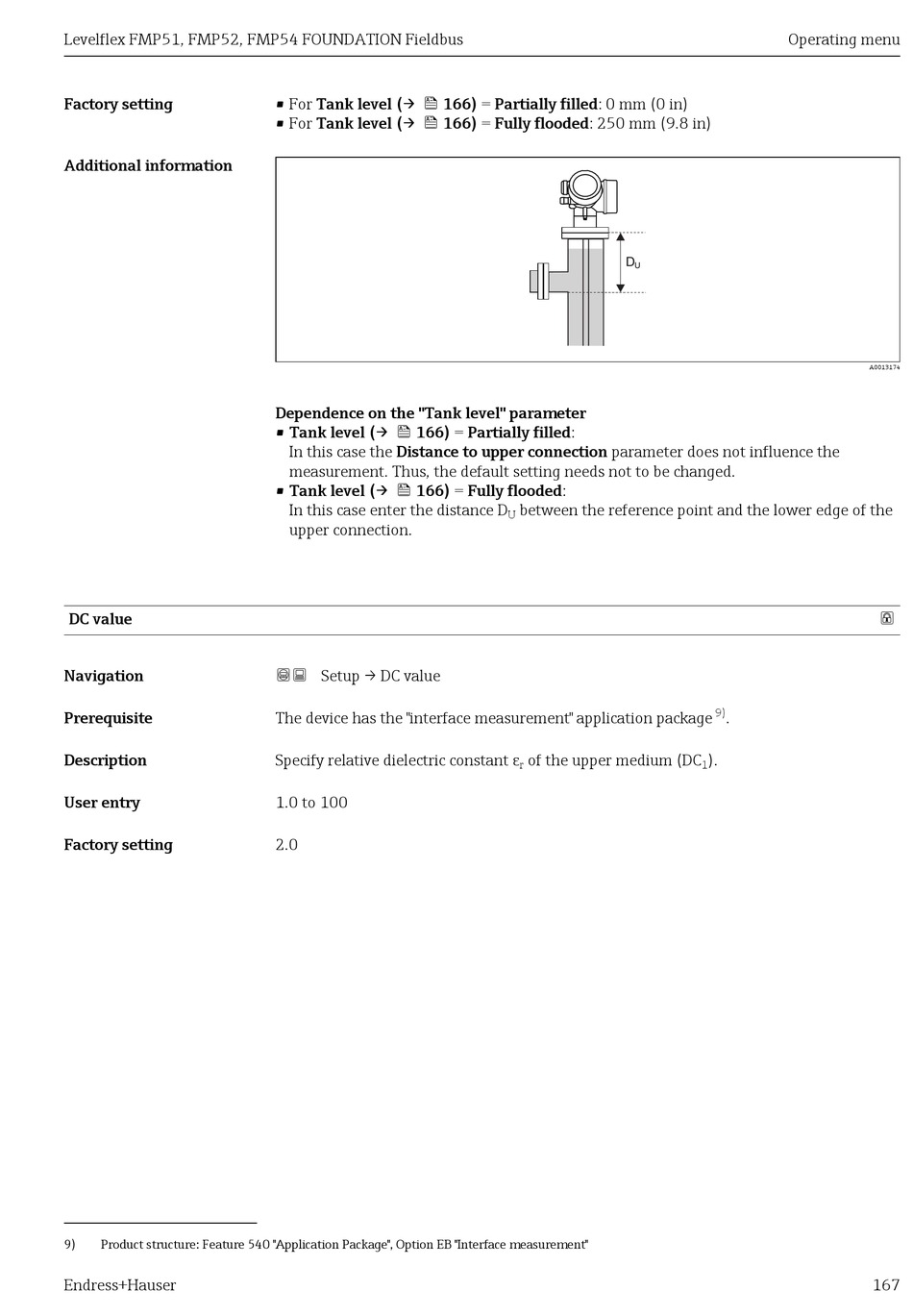

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 167

Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
Factory setting
Additional information
DC value
Navigation
Prerequisite
Description
User entry
Factory setting
9) Product structure: Feature 540 "Application Package", Option EB "Interface measurement"
Endress+Hauser
• For Tank level (→  166) = Partially filled: 0 mm (0 in)
• For Tank level (→  166) = Fully flooded: 250 mm (9.8 in)
Dependence on the "Tank level" parameter
• Tank level (→  166) = Partially filled:
In this case the Distance to upper connection parameter does not influence the
measurement. Thus, the default setting needs not to be changed.
• Tank level (→  166) = Fully flooded:
In this case enter the distance D
upper connection.
 Setup → DC value
The device has the "interface measurement" application package
Specify relative dielectric constant ε
1.0 to 100
2.0
D
U
between the reference point and the lower edge of the
U
of the upper medium (DC
r
Operating menu
A0013174
9)
.
).
1
167

