Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
Locking status
Navigation
Description
User interface
Additional information
Access status tooling
Navigation
Description
User interface
Additional information
Endress+Hauser
17.3.3

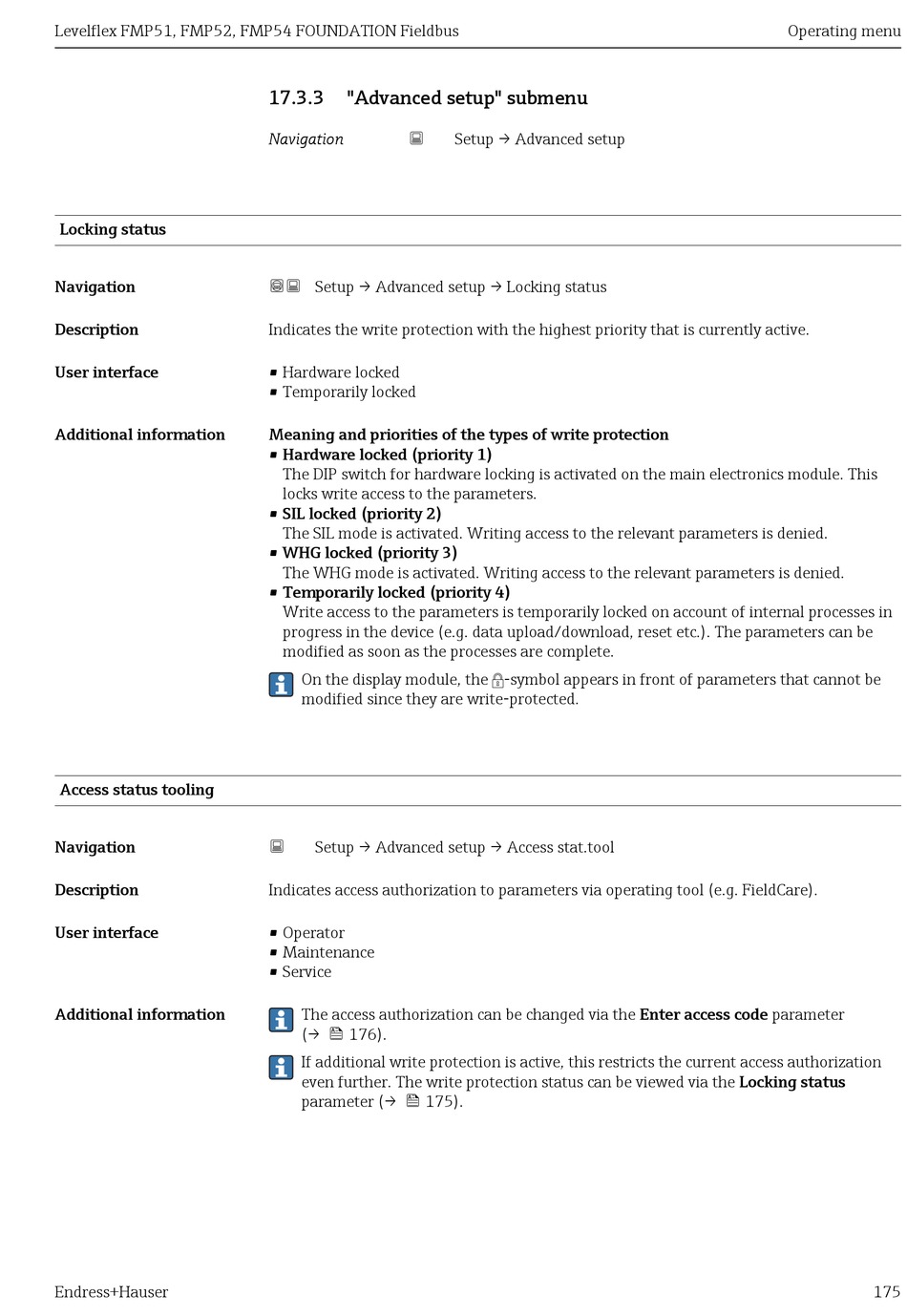

"Advanced setup" submenu

Navigation 
 Setup → Advanced setup → Locking status
Indicates the write protection with the highest priority that is currently active.
• Hardware locked
• Temporarily locked
Meaning and priorities of the types of write protection
• Hardware locked (priority 1)
The DIP switch for hardware locking is activated on the main electronics module. This
locks write access to the parameters.
• SIL locked (priority 2)
The SIL mode is activated. Writing access to the relevant parameters is denied.
• WHG locked (priority 3)
The WHG mode is activated. Writing access to the relevant parameters is denied.
• Temporarily locked (priority 4)
Write access to the parameters is temporarily locked on account of internal processes in
progress in the device (e.g. data upload/download, reset etc.). The parameters can be
modified as soon as the processes are complete.
On the display module, the -symbol appears in front of parameters that cannot be
modified since they are write-protected.
 Setup → Advanced setup → Access stat.tool
Indicates access authorization to parameters via operating tool (e.g. FieldCare).
• Operator
• Maintenance
• Service
The access authorization can be changed via the Enter access code parameter
(→  176).
If additional write protection is active, this restricts the current access authorization
even further. The write protection status can be viewed via the Locking status
parameter (→  175).
Setup → Advanced setup
Operating menu
175
