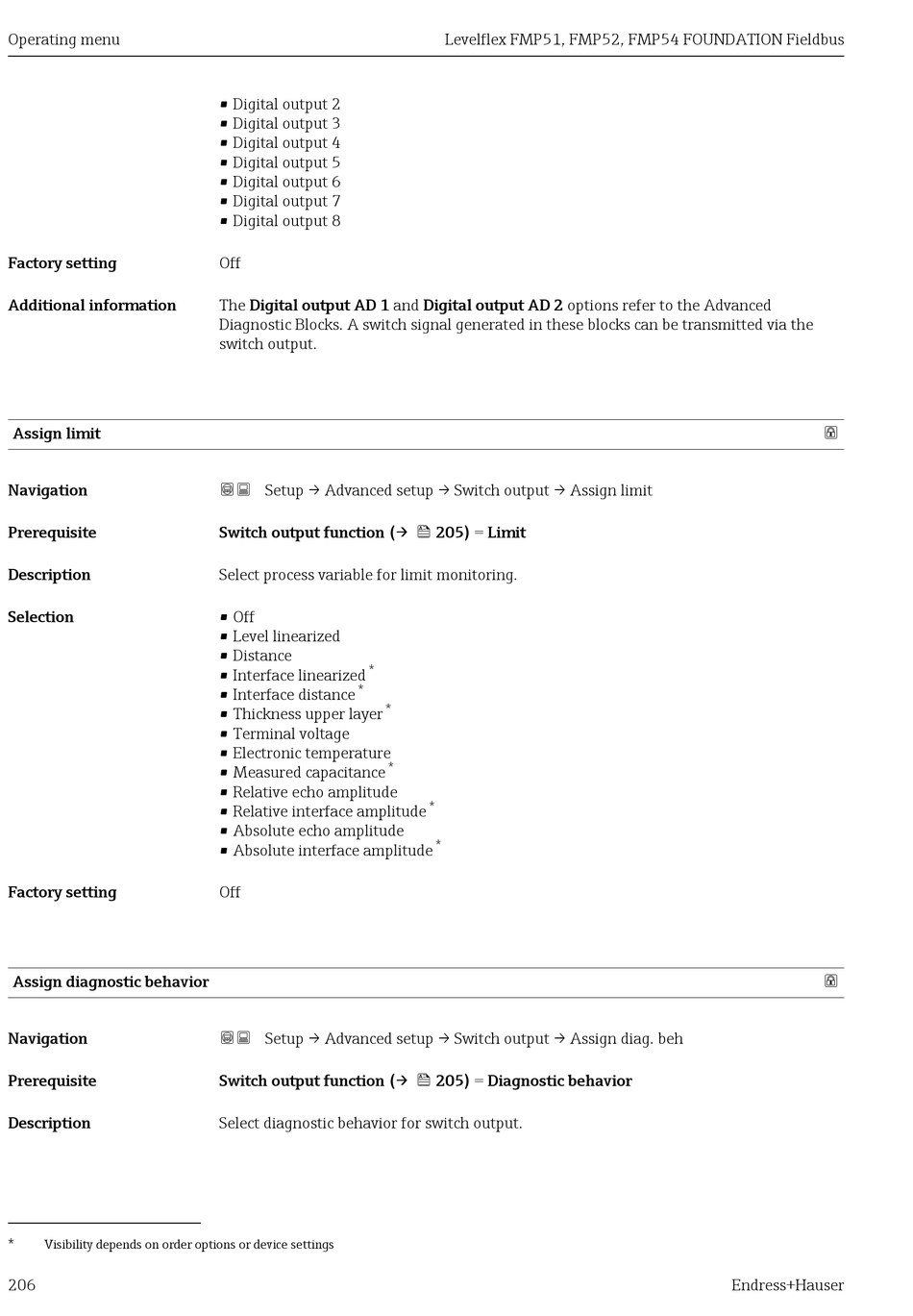

Operating menu
Factory setting
Additional information
Assign limit
Navigation
Prerequisite
Description
Selection
Factory setting
Assign diagnostic behavior
Navigation
Prerequisite
Description
*
Visibility depends on order options or device settings
206
• Digital output 2
• Digital output 3
• Digital output 4
• Digital output 5
• Digital output 6
• Digital output 7
• Digital output 8
Off
The Digital output AD 1 and Digital output AD 2 options refer to the Advanced
Diagnostic Blocks. A switch signal generated in these blocks can be transmitted via the
switch output.
 Setup → Advanced setup → Switch output → Assign limit
Switch output function (→  205) = Limit
Select process variable for limit monitoring.
• Off
• Level linearized
• Distance
*
• Interface linearized
*
• Interface distance
*
• Thickness upper layer
• Terminal voltage
• Electronic temperature
*
• Measured capacitance
• Relative echo amplitude
• Relative interface amplitude
• Absolute echo amplitude
• Absolute interface amplitude
Off
 Setup → Advanced setup → Switch output → Assign diag. beh
Switch output function (→  205) = Diagnostic behavior
Select diagnostic behavior for switch output.
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
*
*
Endress+Hauser
