Operation options
64
8.1.2

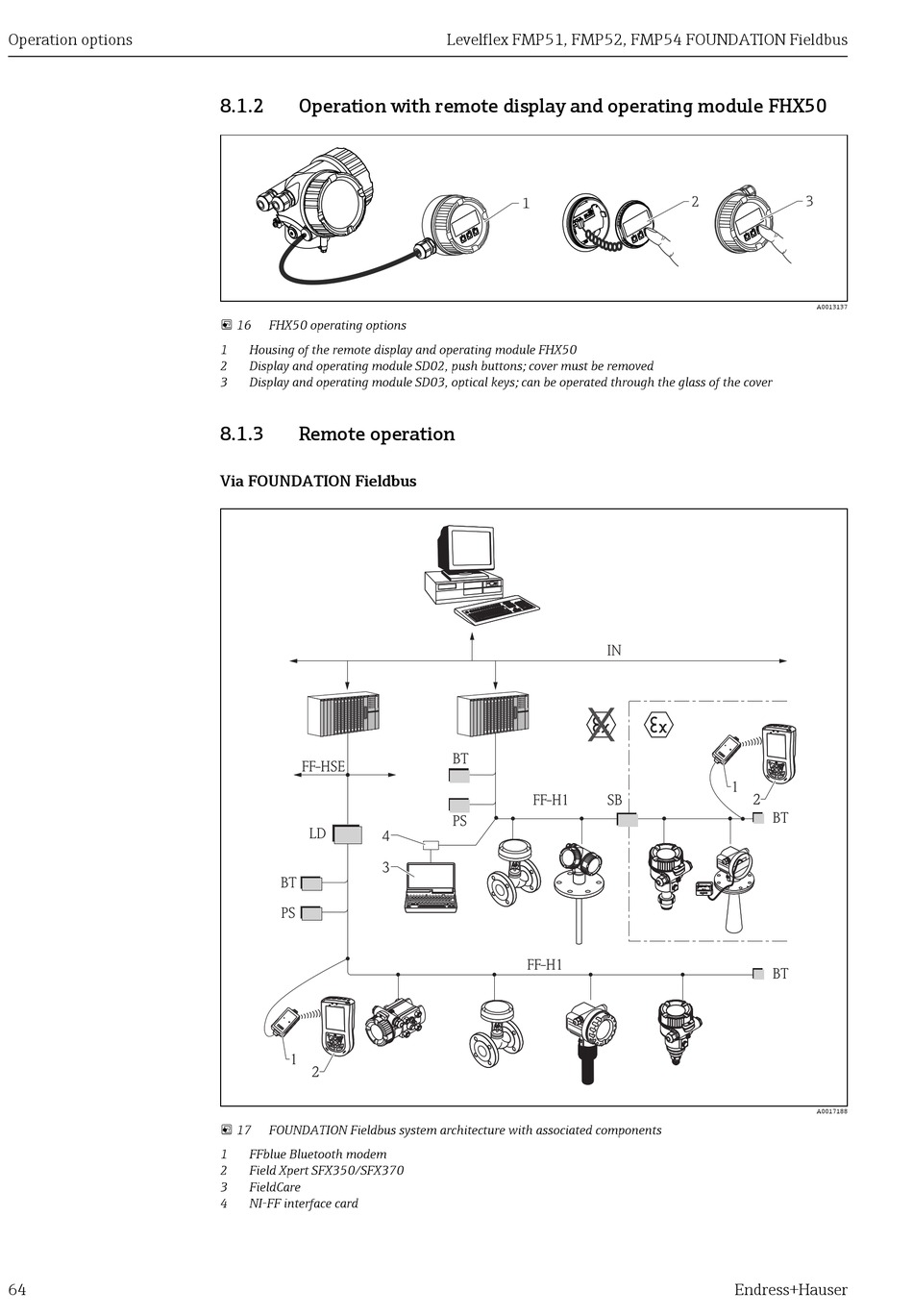

Operation with remote display and operating module FHX50

 16 FHX50 operating options
1 Housing of the remote display and operating module FHX50
2 Display and operating module SD02, push buttons; cover must be removed
3 Display and operating module SD03, optical keys; can be operated through the glass of the cover
8.1.3

Remote operation

Via FOUNDATION Fieldbus
FF-HSE
LD
4
3
BT
PS
1
2
 17 FOUNDATION Fieldbus system architecture with associated components
1 FFblue Bluetooth modem
2 Field Xpert SFX350/SFX370
3 FieldCare
4 NI-FF interface card
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
1
IN
BT
SB
FF-H1
PS
FF-H1
2 3
A0013137
1
2
BT
ENDRESS + HAUSER
%
– + E
BT
A0017188
