Rear Panel - Teldat iM8 Installation Manual

3 Components and Power Supply
In addition to the LEDs described in the above table, the front panel is also equipped with LEDs for Switch Ethernet
interfaces.
Ethernet interface LEDs
Fig. 2:
The following table provides information on the LEDs associated to the Switch Ethernet interface:
Switch ethernet interface LEDs table
LED
Orange
Green

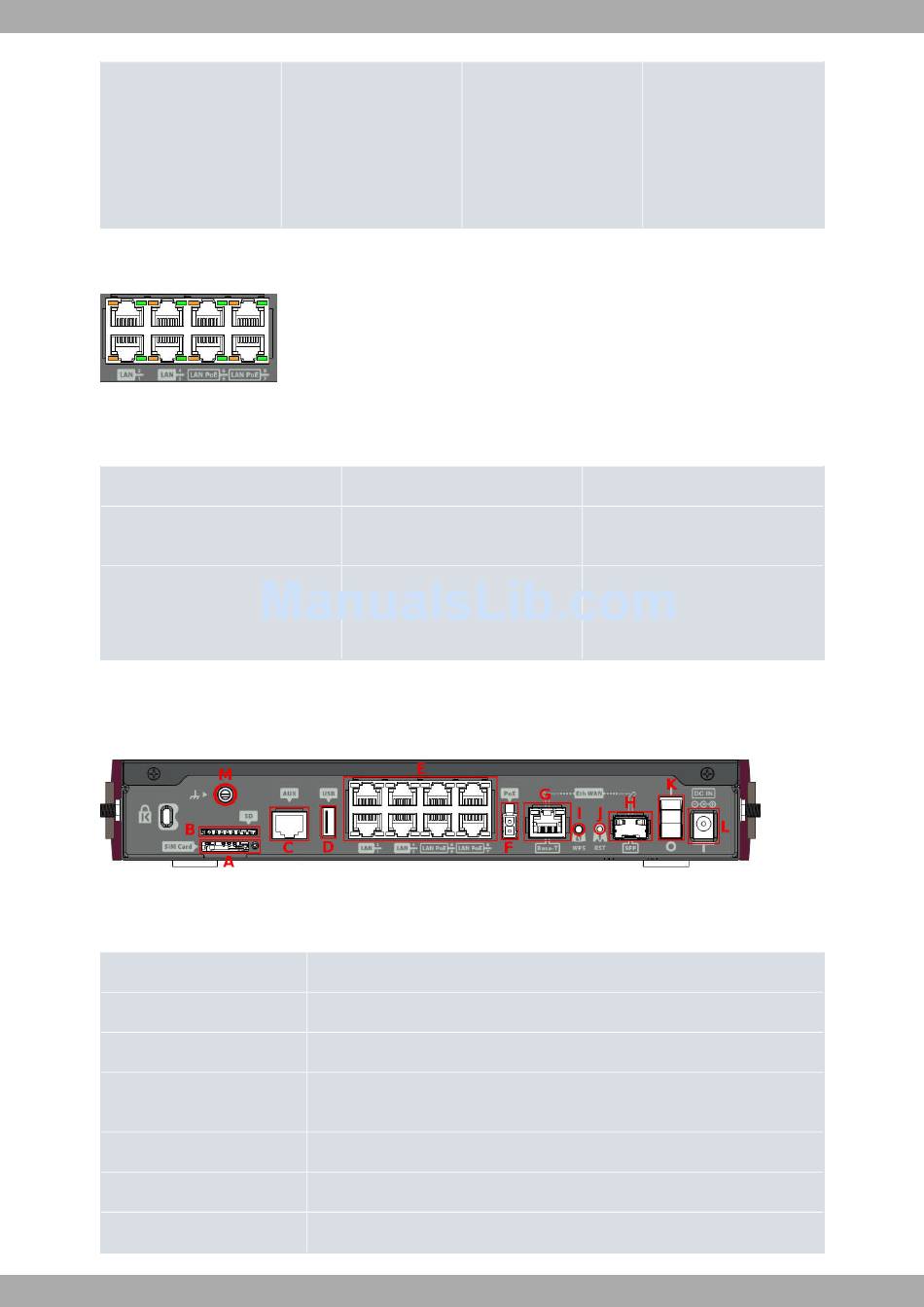

3.1.2 Rear Panel

The following figure shows the rear panel. Here you will find the majority of the Teldat-iM8 router connectors.
Rear panel
Fig. 3:
The following table provides information on each connector as well as a description:
Rear panel elements
Item
A
B
C
D
E
F
8
Description
PoE activity.
Ethernet (link) connection estab-
lished.
Description
SIM Card. Slot where you can insert SIM card for the external 3G module.
SD. Slot where you can insert a SD card.
Aux. Provides access to the Teldat-iM8 local console for configuring and monitor-
ing purposes.
USB. Slot where you can insert a 3G USB modem.
8-port Gigabit Ethernet Switch.
PoE. Connector for power supply through Ethernet (Power over Ethernet).
Red -> interface down.
Amber -> auto test.
Green -> interface up
(blinking, in some cards,
when there is connection
data activity).
State
Please see manual "Teldat-Dm776-I
Power Over Ethernet" .
Off -> Link has not been detected.
Green -> Link detected. Blinking: con-
nection data activity.
