Wireless Lan Antenna Connection (Wi-Fi Connectors); Connecting A 3G Usb Device (Usb Connector); Connecting For Configuration - Teldat iM8 Installation Manual

3 Components and Power Supply
• Do not place the antenna near columns that could throw shadows and reduce the coverage area.
• Keep the antenna away from metal pipes such as canals, air-conditioning, etc.
• Please bear in mind that other wireless devices such as telephones, microwaves, etc., can temporarily interfere
with the quality of the radio signal.
• We do not recommend that you install antennas in racks that contain communication devices, computers, etc. Use
an extension cable and place the device outside.
The following recommendations are applicable to all wireless devices:
• Do not touch or move the antenna while the device is transmitting or receiving.
• When the antenna is transmitting, do not touch any equipment that contains devices that radiate very close to, or
touching, any exposed part of the body (particularly face and eyes).
• Do not install the device in areas where the atmosphere is potentially explosive.
• Wireless devices can cause interferences in other devices. Do not use the device in areas where medical equip-
ment is installed.

3.7.4 Wireless LAN Antenna Connection (Wi-Fi connectors)

The Teldat-iM8 has four RF antenna connectors for an external antenna, in order to improve the quality of the signal
received and transmitted by the Wireless LAN module.
Theses modules are internal and can be activated by purchasing the corresponding software license. To assemble
and disassemble the antennas provided with the device, just screw them into the connectors, labeled Wi-Fi, which
are located on the rear and on both lateral panels of the router.

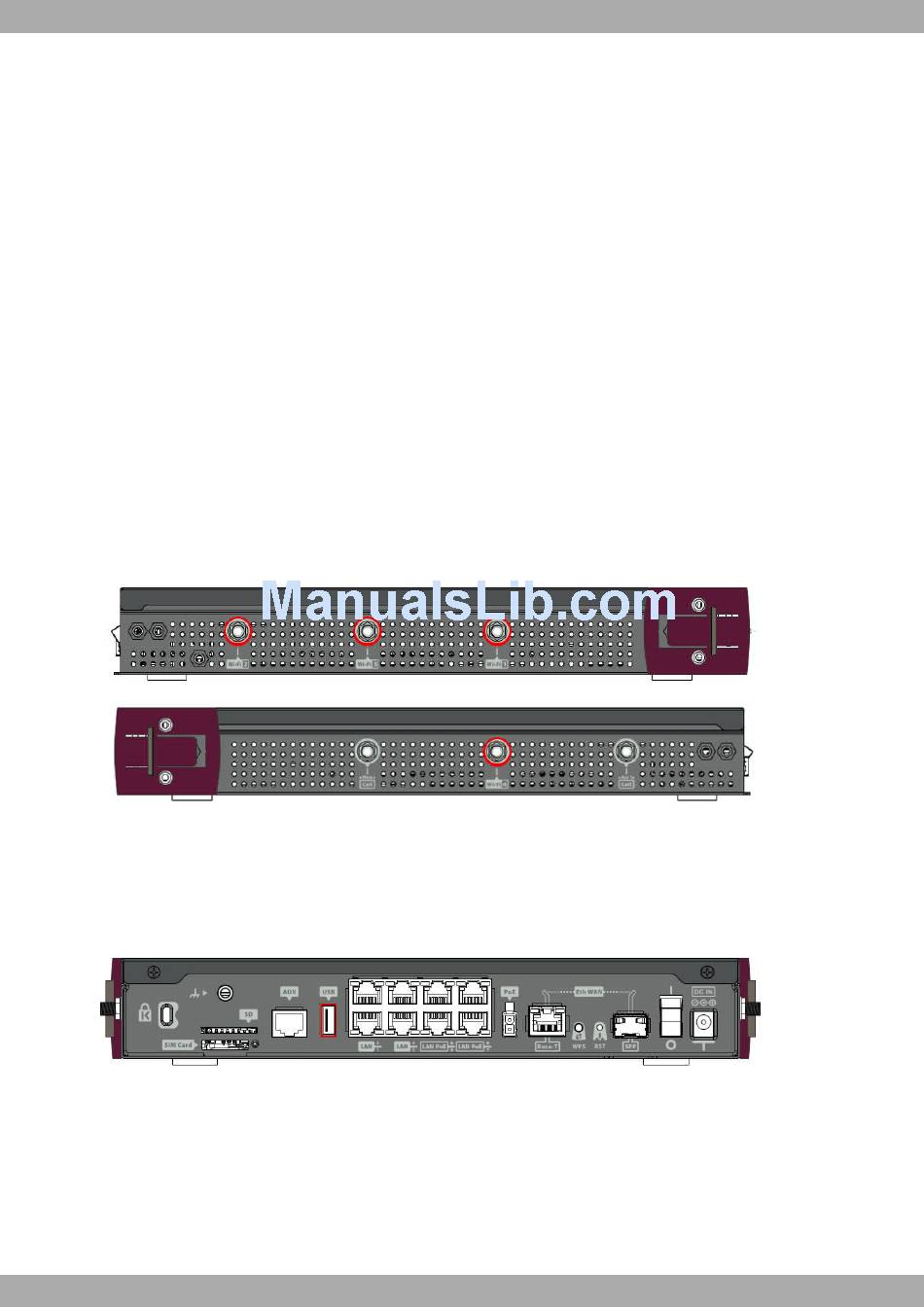

Wi-Fi Antennas
Fig. 22:

3.7.5 Connecting a 3G USB device (USB connector)

The Teldat-iM8 has a USB HOST 2.0 Type A connector interface. It allows 3G USB modems to be connected. The
interface can be activated by purchasing the corresponding software license.
3G USB Connector
Fig. 23:

3.7.6 Connecting for Configuration

The Teldat-iM8 has a RJ45 female connector on the front panel (labeled "Aux .") that provides access to the device
local console.
For further information, please see
18
Connecting to the device on page 28.
