Chapter 3 Components and Power Supply

The following chapter provides detailed information on the chassis of the Teldat-iM8 router and its components. This
information includes:

• Components.

• Information on assembly.
• Installing and uninstalling modules.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
• Hard disk installation.
3.1 Components

3.1.1 Front Panel

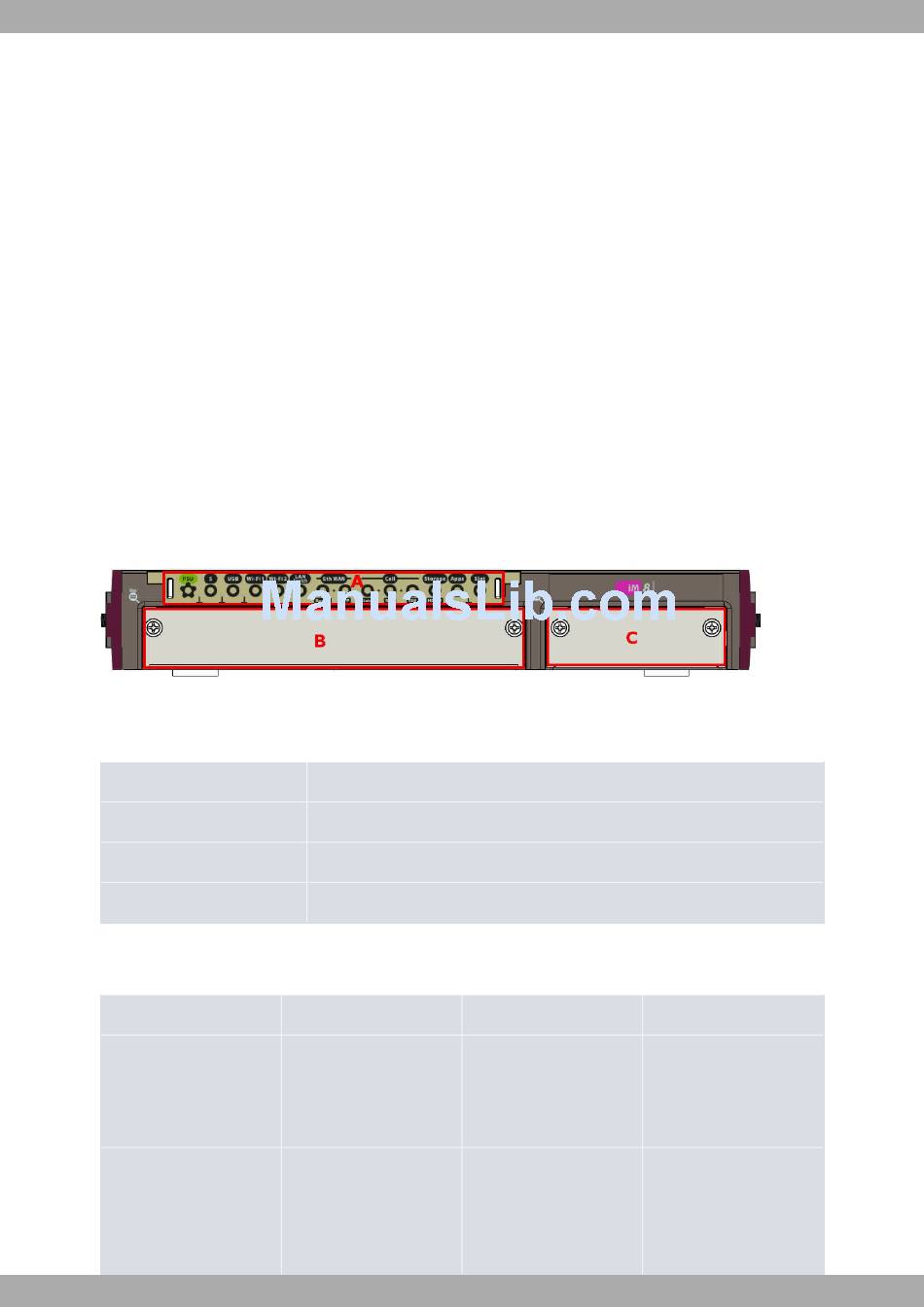

The following figure shows the front panel.
Front Panel
Fig. 1:
The front panel elements are as follows:
FRONT PANEL ELEMENTS TABLE
Item
A
B
C
The LEDs panel provides information on the status of the components (if they are active or not) and on network
activity.
LEDs table
LED
PSU
S
Teldat Router iM8
Description
LEDs panel.
Slot for expansion card.
Slot for hard disk.
Status
Monochrome green
Tricolor
3 Components and Power Supply
Description
Off -> no power through
PSU.
On -> powered through
PSU.
Off -> system off.
Red -> Error, component
operating incorrectly.
Green -> System initialized
