3.1.3 Side Panels

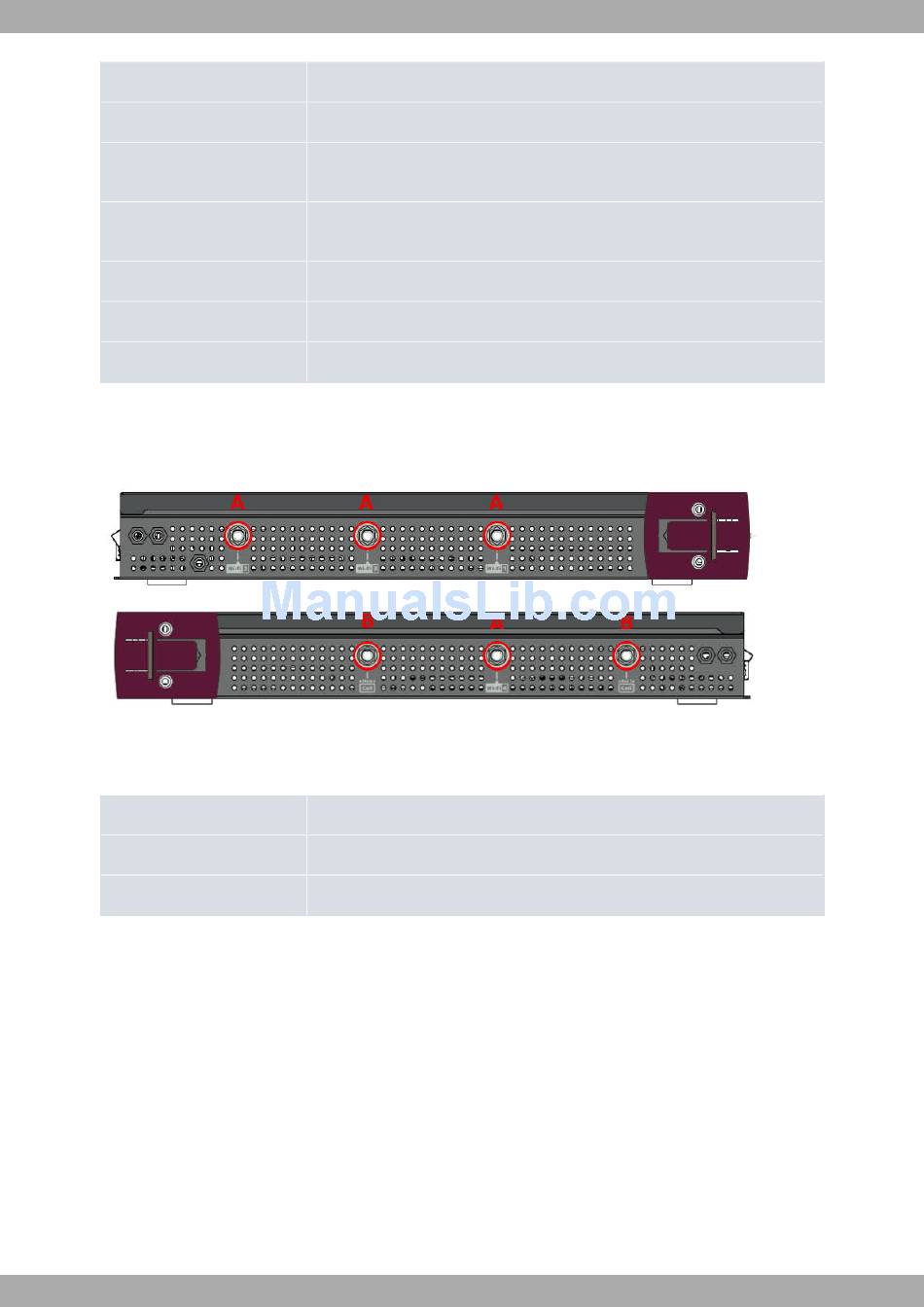

Four WiFi antenna and two 3G antenna connectors are located on the side panels.
Left and right side panels
Fig. 4:
The connectors are as follows:
Side panel connectors
Item
A
B

3.1.4 Underside Panel

The following elements are located on the underside panel:
Teldat Router iM8
Eth WAN Base-t. WAN Gigabit Ethernet.
Eth WAN SFP.
WPS (Wireless Protected Setup). This allows for easy and secure configuration of
the WiFi network parameters.
RST. Reset button. For further information on how the reset button operates,
please see RST Button on page 15.
On/Off switch.
Power source connection (PSU).
Functional earthing. Usually disconnected.
Description
WiFi Antenna connectors.
3G Antenna connectors.
