3 Components and Power Supply

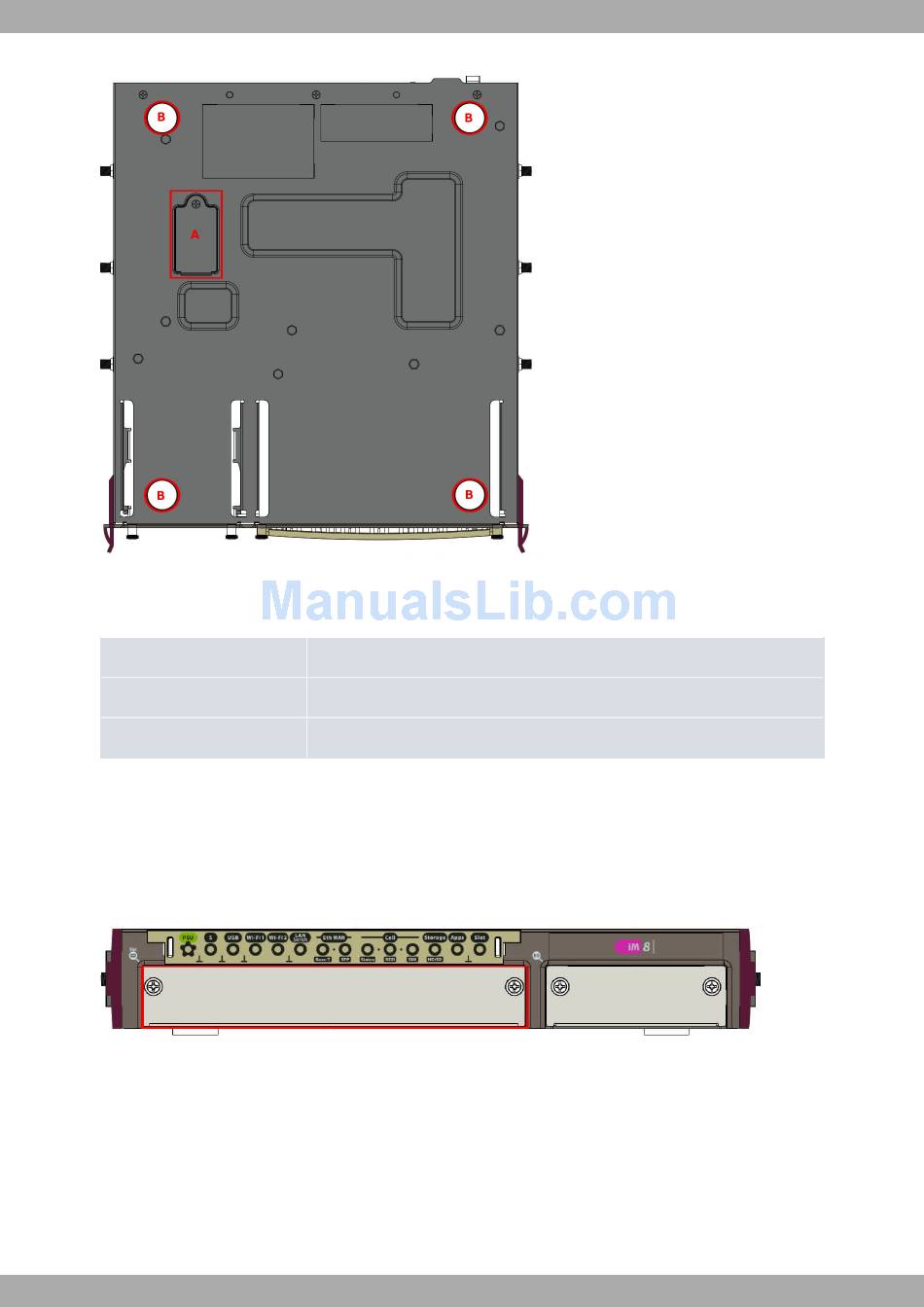

Underside panel
Fig. 5:
The following table contains details on the significant elements of the underside panel.
Underside PANEL ELEMENTS TABLE
Item
A
B

3.2 Expansion Slot

The Teldat-iM8 router has an expansion slot. This means you may increase its features and interfaces by inserting
different cards or boards.
This slot is located on the router front panel, as shown in following figure:
Expansion slot
Fig. 6:
To correctly insert cards, please follow these steps:
(1) Switch off the device and remove the data cables as described under section
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.
(3) Unscrew the screws on the front panel to dismantle the tray for the expansion cards.
10
Description
Internal 3G module SIM tray. Access is from the underside of the router.
Adhesive rubber feet (these are not required if mounted in a rack).
Disconnecting on page 15.
