Poe Source; Rst Button; Rebooting The Device - Teldat iM8 Installation Manual

Teldat S.A.
3.5.1.1 Connecting
• Make sure that the device power supply switch is in the OFF position (0).
• Ensure the power supply is NOT connected to either the electricity or the device.
• Connect all data cables.
• Connect the power supply cable to the device.
• Connect the power supply cable to the electricity supply.
• Set the router's power supply switch on the ON position (1).
3.5.1.2 Disconnecting
• Make sure the device power supply switch is in the OFF position (0).
• Disconnect the power supply from the electricity supply.
• Disconnect the power supply from the device.
• Disconnect the data cables.

3.5.2 PoE Source

The Teldat-iM8 can be powered through an Ethernet cable that complies with the PoE 802.3af standard (15.4 W per
port).
The following figure shows how to connect the PoE source to the device:

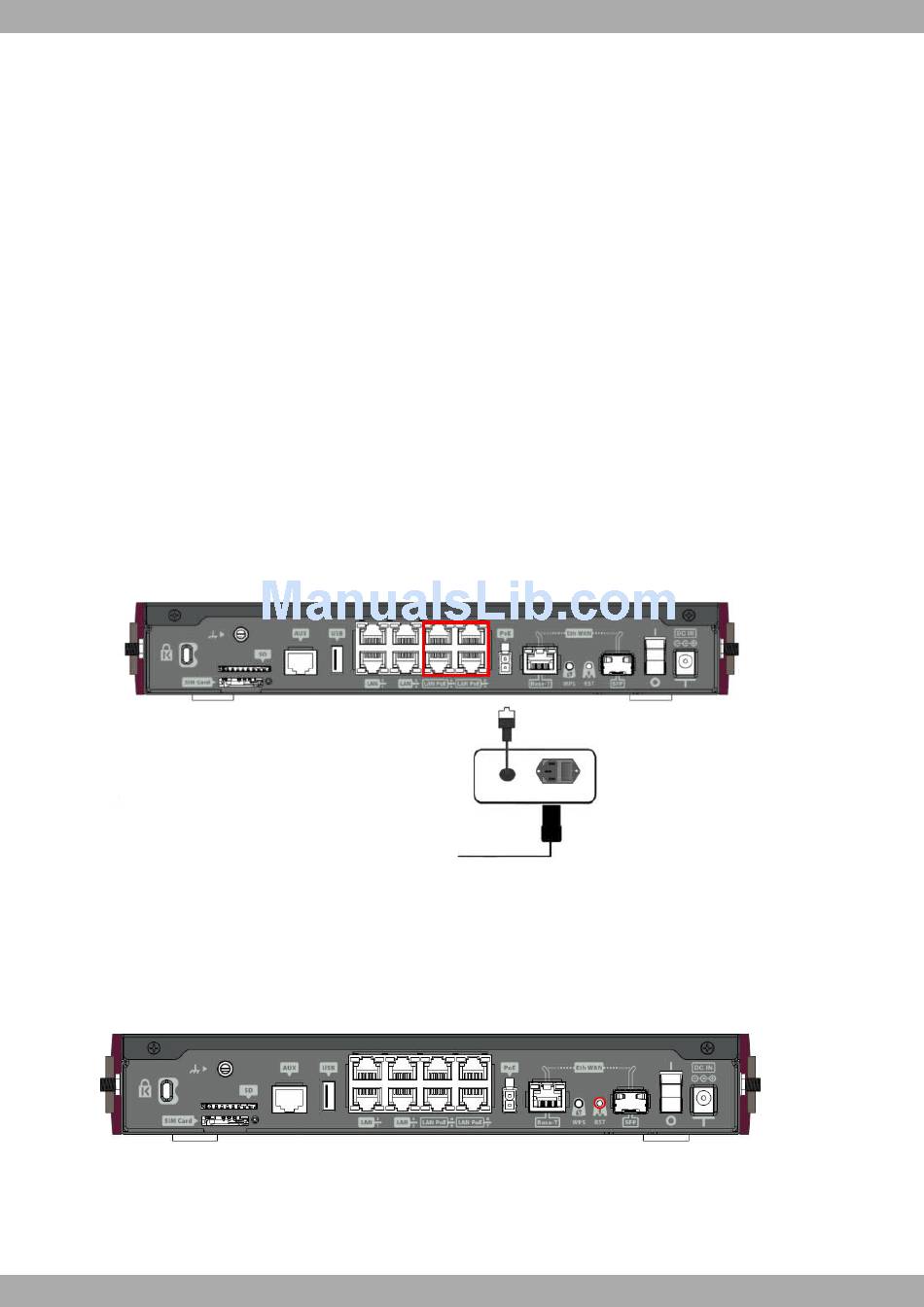

PoE source connection and PoE ports
Fig. 17:

3.6 RST Button

The RST button features are described below.
RST button
Fig. 18:

3.6.1 Rebooting the device

Once the device is operating normally, pressing the RST button will make it restart.
