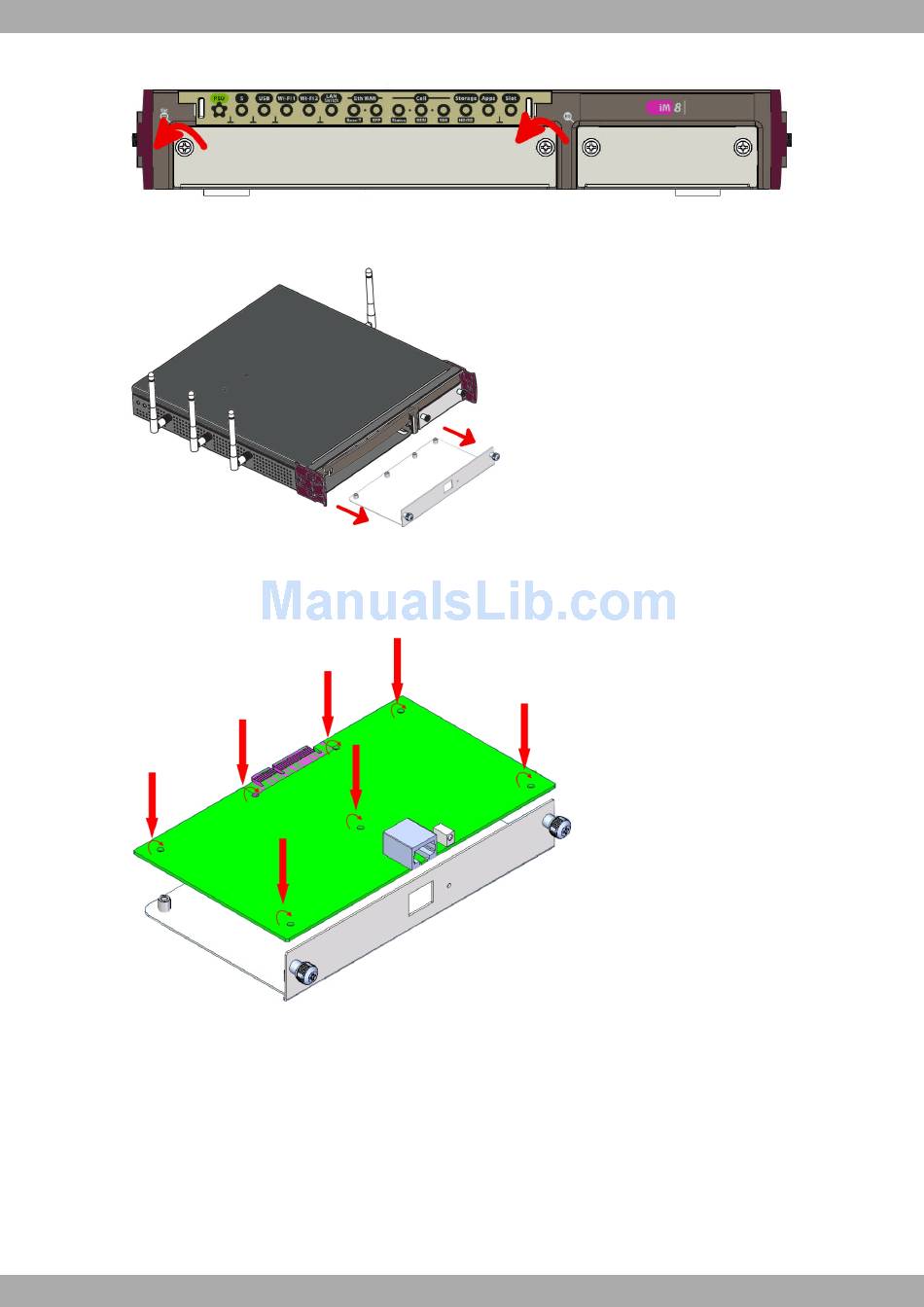

Unscrewing the screws from the front panel tray
Fig. 7:
(4) Once unscrewed, pull the tray out from the front panel slot.
Extracting the tray from the front panel
Fig. 8:
(5) If the card and tray provided are fastened, skip to the next step. Otherwise, place the card correctly once you
have extracted the tray. Remember to attach the card using the appropriate screws and try not to damage it
during the tightening process.
Placing the expansion card
Fig. 9:
(6) Finally, put the tray that holds the card back into the device.
