3 Components and Power Supply

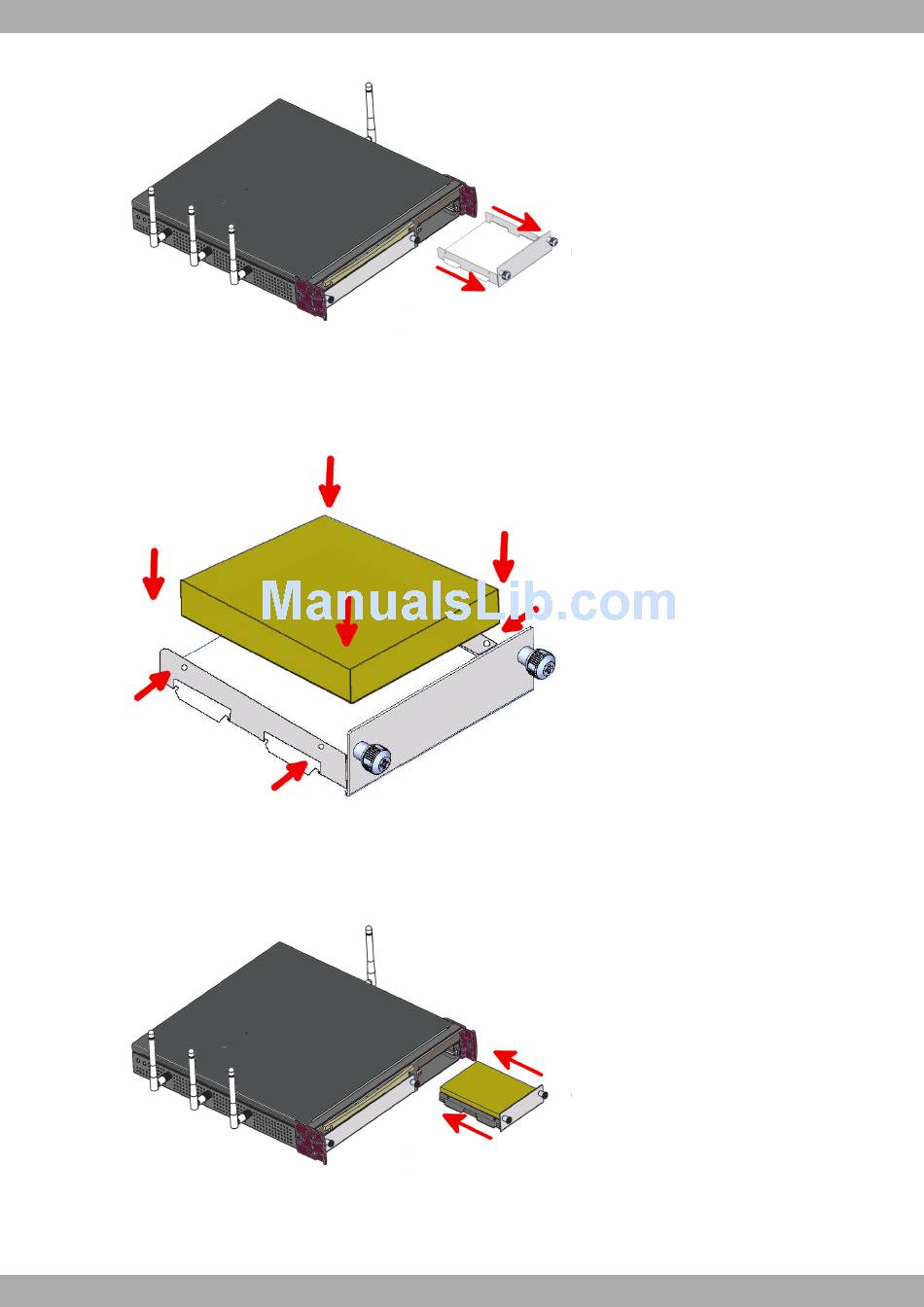

Extracting the tray from the front panel
Fig. 30:
(5) If the tray is attached, skip to the next step. Otherwise, once you have extracted the tray, place the hard disk in
the correct position. Then fix the hard disk using the appropriate screws without damage it during the tightening
process.
Placing the hard disk
Fig. 31:
(6) Finally, insert the tray into the device once again using the slot guides.
Inserting the hard disk
Fig. 32:
(7) Screw the tray to the device.
