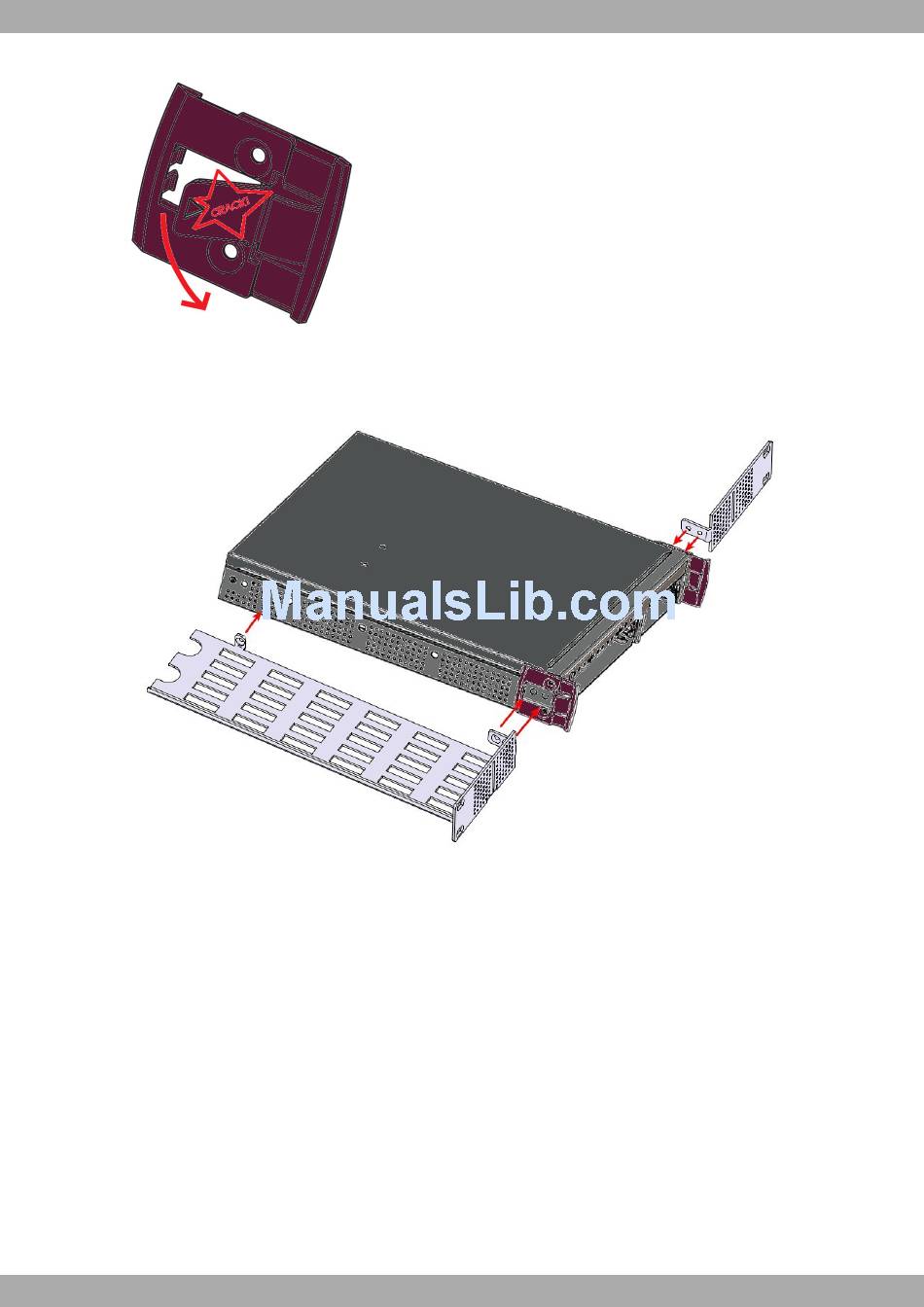

Breaking off the tab
Fig. 14:
(2) Both strips are attached to the device through 5 screws, as shown in following figure:
Anchor bolts for a rack
Fig. 15:

3.3.1 Standalone

The Teldat-iM8 can be placed as a standalone on a flat, stable surface. The adhesive rubber feet must be stuck to
the underside panel to prevent the router from sliding.
Make sure there is enough space around the router (for ventilation purposes) and check the electricity cables can
reach it.

3.3.2 Wall mounting

The Teldat-iM8 cannot be mounted on the wall.

3.4 Plug-in Modules

Currently, only the 3G USB modem can be inserted in the device. To view the list of supported 3G modems, please
go to the following website: http://www.teldat.com.
