Installation In A Rack - Teldat iM8 Installation Manual

3 Components and Power Supply
Inserting the expansion card

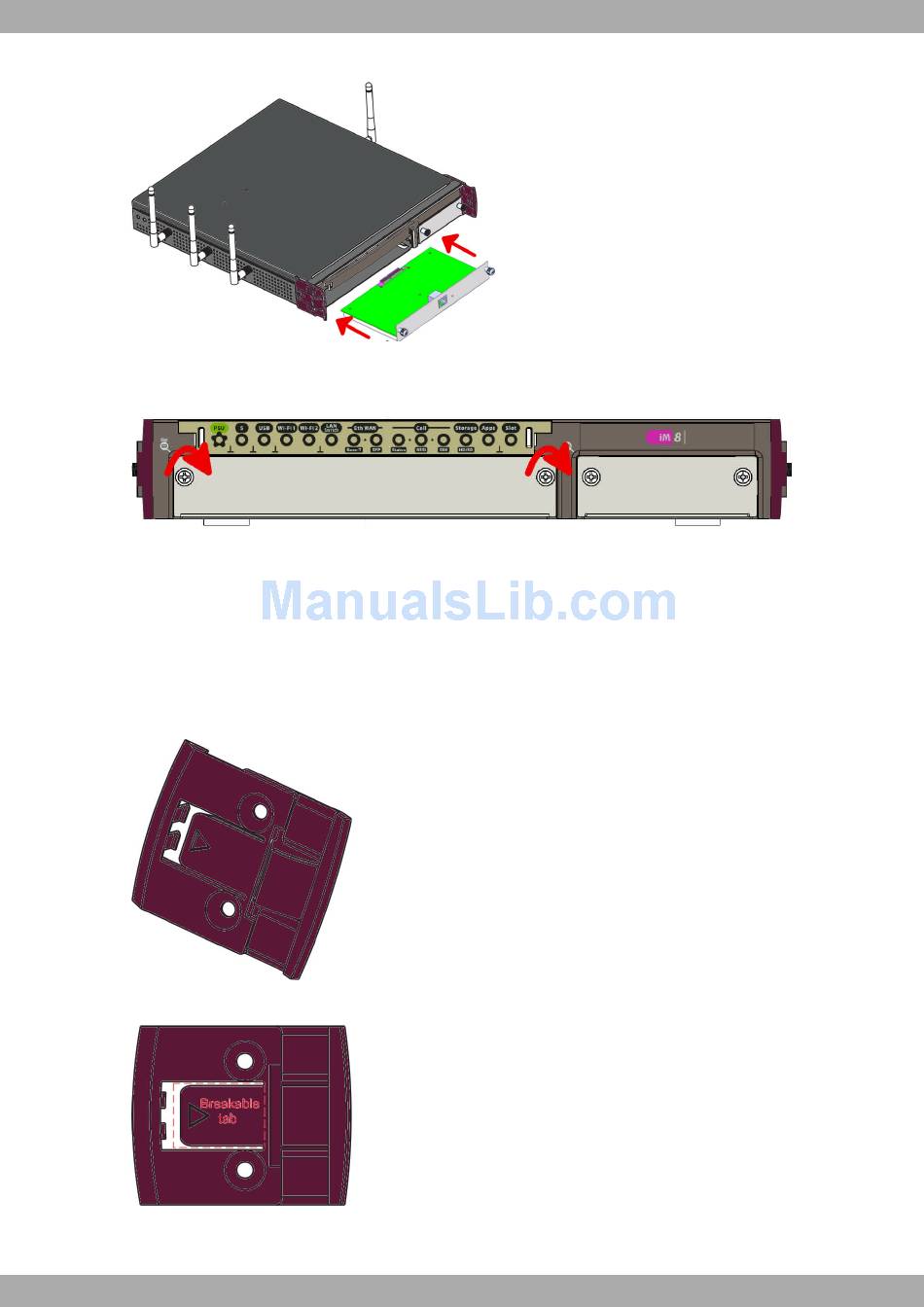

Fig. 10:
(7) Screw the tray to the device.
Screw the tray to the front panel
Fig. 11:
(8) Connect a terminal to the console and check the device has detected the expansion card.

3.3 Installation in a rack

The Teldat-iM8 device can be installed in a 19" rack. The necessary strips and screws are not provided by default
and have to be acquired separately.
(1) First of all, side tabs must be removed from the device to free the screws holes:
Central tab to be removed
Fig. 12:
Removable tab part
Fig. 13:
