3 Components and Power Supply

3.6.2 Default Configuration

The RST button allows you to boot the device, with the default configuration, through the following steps:
• With the device switched off, keep the RST button pressed down and switch on the router through the ON/OFF
switch (1).
• The PSU LED (green) will light up and the LED Slot will begin to blink (amber). This blinking will continue for 10
seconds.
• For the device to boot with the default configuration, stop pressing the RST button while the LED slot is blinking
(i.e. before the 10 second period expires).
The router's default configuration establishes the following access IP and mask address:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings. This personalization may mean the default
configuration is different from the one shown above.

3.7 Connecting the data

The Teldat-iM8 is equipped with the following data connections.

3.7.1 8-port Ethernet Switch

The Teldat-iM8 incorporates a 8-port 10/100/1000 BaseT Switch with automatic MDI/MDIX to connect to a local area
network (LAN).
Please pay careful attention to the labeling so you do not confuse this switch with other types of ports:

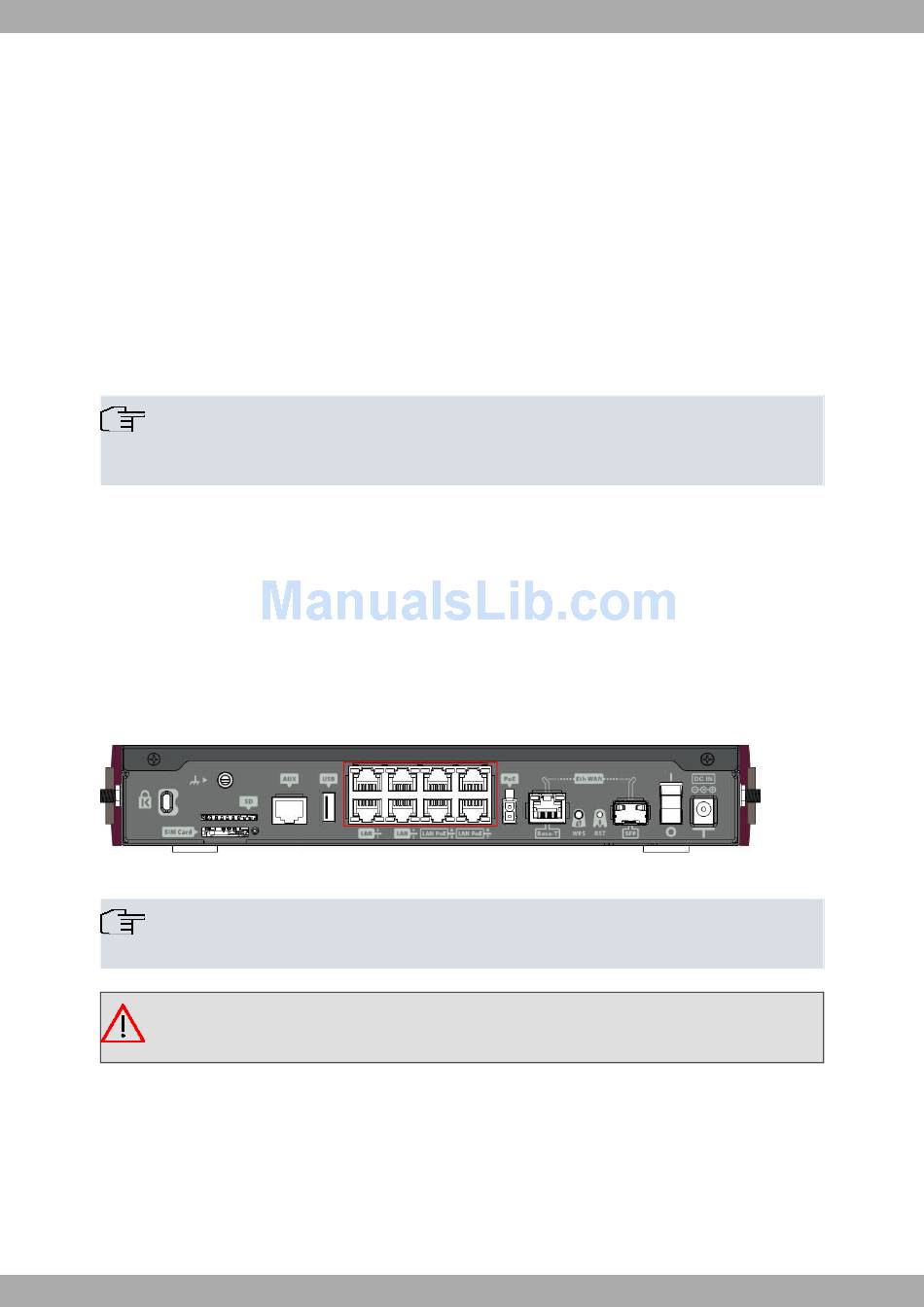

LAN switch PORTs
Fig. 19:
Note
During booting and in BIOS mode, only LAN 1 connector is available.
Warning
The equipment must be used with the power supply provided by the manufacturer.

3.7.2 WAN Connection

The Teldat-iM8 has two connectors for Ethernet networks. Each interfacehas two connectors: one optic connector
(1000 LX SFP-LC) and one metal one (10/100/1000 Base-T).
WAN ports are independent from the Switch and are handled as just one more interface.
Please pay careful attention to the labeling to prevent mixing these with other types of ports:
