congatec offers cables and adapter for the eDP interface (see section 1.2.2 "Optional Accessories/Cables"). For more information, contact
the congatec technical solution department.
5.4.3.1
Backlight Power Connector

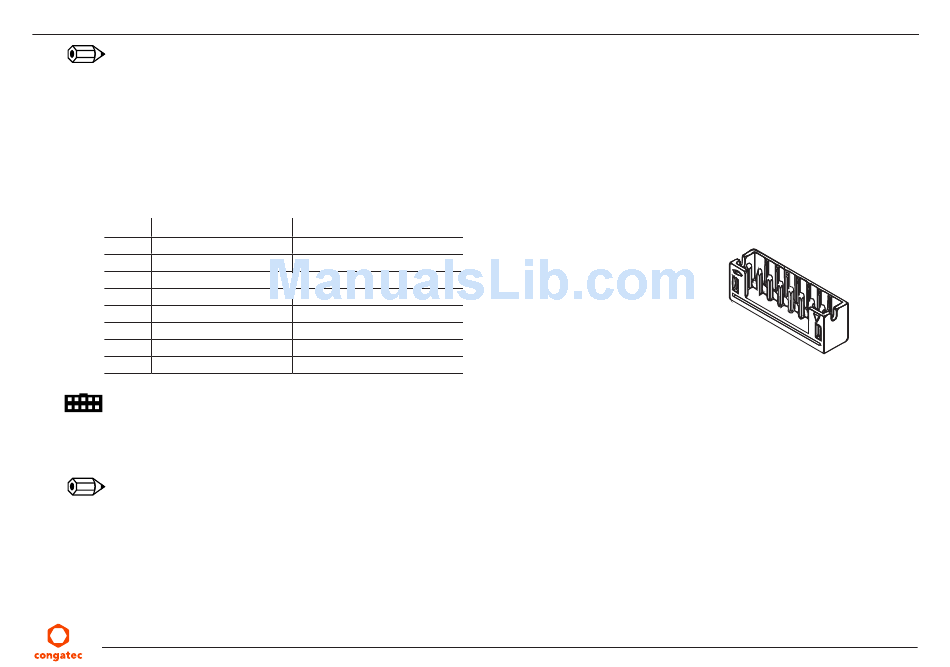

The conga-IC170 provides backlight power on connector X22.
Table 21
Connector X22 Pinout Description
Pin
Signal Name
1
eDP_LVDS_BKLT_EN
2
eDP_LVDS_BKLT_CTRL
3
BKLT_PWR
4
BKLT_PWR
5
GND
6
GND
7
Brightness_Up
8
Brightness_Down
Connector Type
X22: 2 mm, 8-pin crimp style connector
Mating connector: Chyao Shiunn JS-1124-08
Note
congatec offers an open-end cable for this interface (see section 1.2.2 "Optional Accessories/Cables"). For more information, contact the
congatec technical solution department.
Copyright © 2016 congatec AG
Description
Backlight enable
Backlight control
Backlight inverter power
Backlight inverter power
Backlight ground
Backlight ground
Flat panel brightness increase
Flat panel brightness decrease
Backlight Power - Connector X22
ICSLm13.indd
34/95
